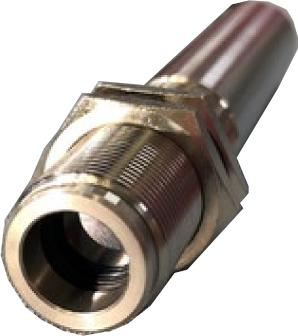

Samsung Infra Red Temperature Sensor 0 to 500 Deg C 16:1 Emissivity = 0.95 Fixed 1.5 Deg C or +/-1% Accuracy for 4-20mA Output, 24VDC Supply, 18mm Diameter x 113mm w/ 1M cable 1 x 4-20mA Output 2 Wire Linear Output 10-90% RH Temp Measurement for 0 to 500 Deg C Max 106 x 18mm with 1M Cable 75 Millisecond Response Time 240VDC Supply 150mA max Specification Samsung Part Number EIS16C Sensor Type Infra Red Non Contact Thermometer No of Wires 4 Shaft Length 106mm Shaft Thickness 18mm Accuracy 1.5 Deg C or 1% Response Time 75ms Emissivity 0.95 (Fixed) Resolution 40:1 Environmental 0-60%C Operation, 10-90% RH Operation IP65 Cable length 1 Meter Temperature Range 0 to 300 Deg C Mounting Style Through Hole Weight 300g Factory Pack Qty 1 Datasheet Datasheet

Read more less

Samsung Infra Red Temperature Sensor 0 to 500 Deg C 16:1 Emissivity = 0.95 Fixed 1.5 Deg C or +/-1% Accuracy for 4-20mA Output, 24VDC Supply, 18mm Diameter x 113mm w/ 1M cable 1 x 4-20mA Output 2 Wire Linear Output 10-90% RH Temp Measurement for 0 to 500 Deg C Max 113 x 18mm with 1M Cable 300 Millisecond Response Time 240VDC Supply 150mA max Specification Samsung Part Number EIS16C Sensor Type Infra Red Non Contact Thermometer No of Wires 2 Shaft Length 113mm Shaft Thickness 18mm Accuracy 1.5 Deg C or 1% Response Time 300ms Emissivity 0.95 (Fixed) Resolution 16:1 Environmental 0-60%C Operation, 10-90% RH Operation Cable length 1 Meter Temperature Range 0 to 500 Deg C Special Feature High Temp Epoxy Seal Mounting Style Through Hole Weight 400g Factory Pack Qty 1 Datasheet Datasheet

Read more less
