Infineon D690S20T, Fast Diode Capsule, Fast 650 Amp, 2000V, Replaces D459S1800T and D650S20T Features Very low forward voltage drop Very low leakage current International standard package 58/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number D690S20T Vrrm 1800V Diode Configuration Diode Capsule (PUK) IF(av) @ 85 Deg C 560 Amp Package Size ø58 x 26mm Itsm 12.2 kA VF(to) 1V Tj(max) 125°C Qr 370uA/s rF 0.45mOhm Gate Terminals N/A R th(j-c) (double sided cooled 180°sin) 0.048C/W R th(c-h) (double sided cooled) 0.005°C/W Weight 270g Clamping Force 9-13kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives M0914lc200 Heatsink Heatsink Profiles

Read more less

Infineon D291S45T, Fast Diode Capsule, Soft turn off at high dv/dt 291 Amp, 4500V Features Very low forward voltage drop Very low leakage current International standard package 58/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number D291S45T Vrrm 4500V Diode Configuration Diode Capsule (PUK) IF(av) @ 85 Deg C 291 Amp Package Size ø58 x 26mm Itsm 5.2 kA VF(to) 1.9V Tj(max) 125°C Qr 950uAs rF 1.76mΩ Gate Terminals N/A R th(j-c) (double sided cooled 180°sin) 0.04C/W R th(c-h) (double sided cooled) 0.006°C/W Weight 250g Clamping Force 9-13kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement Heatsink Heatsink Profiles

Read more less

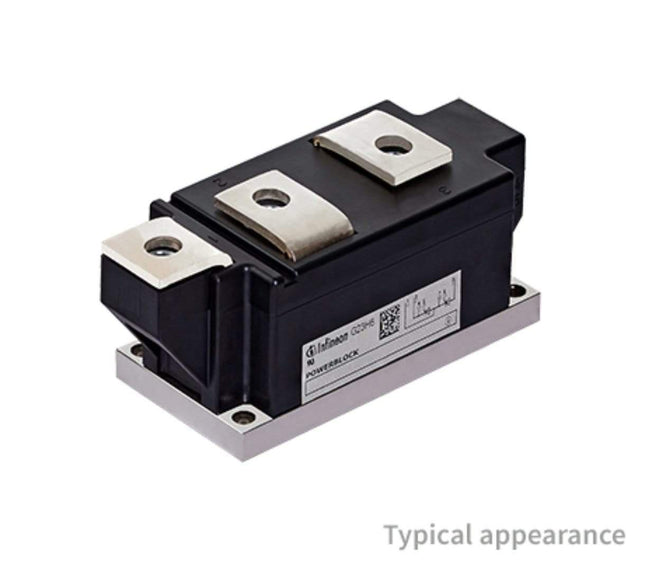

Infineon TT425N18KOF Dual Thyristor Module Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 60mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Infineon Part Number TT425N18KOF Vrrm 1800V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 425 Amp Package Size W:60mm L:144mm D:52mm Itsm 14.5 kA VF(to) 0.9V Tj(max) 125°C rF 0.3mΩ I(gt) @ 25 Deg C 250mA Terminals M10 Screw Hole Centres 80mm x 48mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.078°C/W R th(c-h) 0.02°C/W Weight 1500g Mounting Torque 6 Nm (12 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet

Read more less

Infineon T930N36TOF Thyristor(SCR) Capsule, 930Amp, 3600V, 74/26 Features Very low forward voltage drop Very low leakage current International standard package 74/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number T930N36TOF Vrrm 3600V Diode Configuration Thyristor Capsule (PUK) IF(av) @ 85 Deg C 930 Amp Package Size ø74 x 26mm Itsm 19.5 kA VF(to) 1.0V Tj(max) 125°C rF 0.43mΩ Gate Terminals Fastron R th(j-c) (double sided cooled 180°sin) 0.0215°C/W R th(c-h) (double sided cooled) 0.0035°C/W Weight 540g Clamping Force 20 - 45kN Factory Pack Qty 6 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives N1159NC400 DCR1260F42 Contact Us for Possible Replacement Heatsink Heatsink Profiles

Read more less

Infineon TZ425N16KOF Single Thyristor Module Features Thyristor for line frequency Pressure Contact Technology Electrically insulated base plate Industrial standard package Long-term stability 3600V Isolation 50mm Base Width Applications Power Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control AC power control Lighting and temperature control Specification Infineon Part Number TZ425N16KOF Vrrm 1600V Diode Configuration Single Thyristor Module IF(av) @ 85 Deg C 425 Amp Package Size W:50mm L:101mm D:52mm Itsm 14.5 kA VF(to) 0.9V Tj(max) 125°C rF 0.3mΩ I(gt) @ 25 Deg C 250mA Terminals M10 Screw Hole Centres 80mm x 38mm(M6) Gate Terminals Spade (A 2.8 - 0.8 DIN 46244) R th(j-c) 0.078°C/W R th(c-h) 0.02°C/W Weight 900g Mounting Torque 5 Nm (12 Nm Terminals) Factory Pack Qty 2 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement

Read more less

Infineon TT61N14KOF Dual Thyristor Module Features Pressure Contact Technology Optimised for Deep Cycling Electrically insulated base plate Very low forward voltage drop Very low leakage current 3600V Isolation Industrial standard package 20mm Base Width Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Center Tapped Transformers Specification Infineon Part Number TT61N14KOF Vrrm 1400V Diode Configuration Dual Thyristor Module IF(av) @ 85 Deg C 61 Amp Package Size TO-240AA W:20mm L:93mm D:30mm Itsm 1.55 kA VF(to) 0.8V Tj(max) 130°C rF 3.4mΩ Terminals M5 Screw Hole Centres 80mm (M6) Gate Trigger Current 120mA R th(j-c) 0.52°C/W R th(c-h) 0.16°C/W Weight 160g Mounting Torque 4 Nm (4 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany   Datasheet Product Datasheet Alternatives See VSKT91/16 for Vishay Solder Bonded replacement. See TT104N14KOF for Infineon Pressure Contact Alternative

Read more less

Infineon FF1400R12IP4 IGBT Dual Module Features IGBT Dual for Inverter Pressure Contact Technology Electrically insulated base plate Industrial standard package Medium Switching Speed 2500V Isolation 140mm Base Width Applications Frequency Converter Line rectifying 50/60 Hz Deep Cycle Applications Controlled Rectifiers Softstart AC motor control Low Frequency Inverter Drives Specification Infineon Part Number FF1400R12IP4 Vces 1200V Transistor Configuration Dual IGBT Module (Half Bridge) Ic(nom) @ 70 Deg C 1200 Amp Package Size W:140mm L:190mm D:38mm V(isol) 2.5 kV Vf @ 25 Deg C 2.8 - 3.5V Tj(max) 150°C Td(on) @ 25 Deg C 0.28uS Td(off) @ 25 Deg C 1.55uS I(ces) @ 25 Deg C 12mA Rcc 0.12mOhm Terminals M8 Screw Hole Centres 114 x 124mm(M6) Gate Terminals M4 R th(j-c) 0.025°C/W R th(c-h) 0.042°C/W Weight 1500g Mounting Torque 5 Nm (2 Nm Terminals) Factory Pack Qty 10 Certification UL Listed, ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives Contact Us for Possible Replacement for alternative

Read more less

Infineon D820N20T Rectifier Diode Capsule Features Very low forward voltage drop Very low leakage current International standard package 48/14 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number D820N20T Vrrm 2000V Diode Configuration Diode Capsule (PUK) IF(av) @ 85 Deg C 820 Amp Package Size ø48 x 14mm Itsm 106 kA VF(to) 0.83V Tj(max) 180°C rF 0.52mΩ Gate Terminals N/A R th(j-c) (double sided cooled 180°sin) 0.039°C/W R th(c-h) (double sided cooled) 0.0075°C/W Weight 110g Clamping Force 6 - 15kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Alternatives D798N16T Heatsink Heatsink Profiles
