KLV3224, 440 Kvar 1kV, 1401uF, 50Hz, Single Phase Power Factor Correction Capacitor Characteristics and utility 440 kVar @ 1kV @ 50 Hz 50kvar Heavy Duty 100,000Hours Single Phase Capacitor with 4 bushings Reactive power factor correction Oil Type Clamp terminals Outdoor mounting Triple safety Overpressure disconnection system Protection by internal fuses Construction and materials Low losses metallized self-healing polypropylene film, high density, high temperature and greater dielectric resistance Volt/µ UL 94 V0 Resin Side mounting brackets Standards IEC 60831-1/2 EN 60831-1/2 Specification Iskra Part Number KLV3223, 440kvar 1401uF, 50Hz, 19.053kV Technology Oil Type, Low Loss, Self Healing Dimensions 175 x 1000 x 427mm (approx) Standards IEC 60831-1/2, EN 60831-1/2 Voltage 19.053kV @ 50Hz Kvar 440 Kvar Capacitance 1401uF Insulation level 38/95kV Indoor/Outdoor Version Outdoor Tolerance On Capacitance -5% + 10% (others on request) Current (In) 440 Amp No. Of Bushings 4 Mounting Clamps Side Overpressure Disconnection System YES Self Extinguishing Resin YES Internal Fuses YES Self Healing YES Operating Temperature Range 50°C Max, 30°C Mean(1 year), 40°C Mean(24 hrs) Lifetime 100,000 Hours Terminal Style Clamp Terminals Unit Weight 91kg Factory Pack Quantity 1   Datasheet Datasheet

Read more less

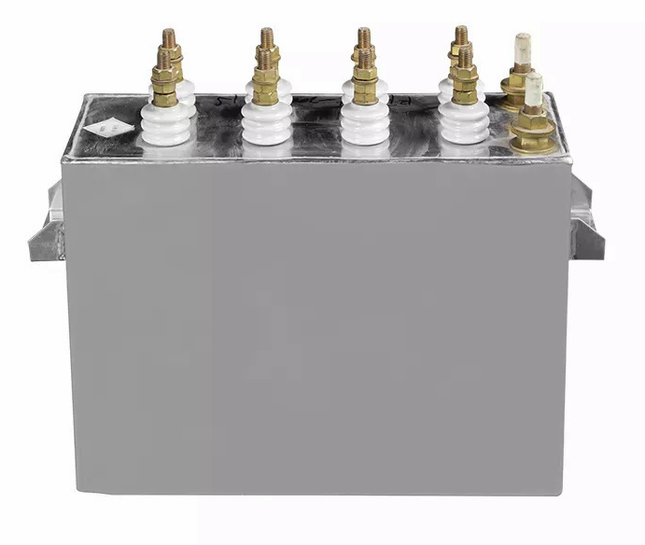

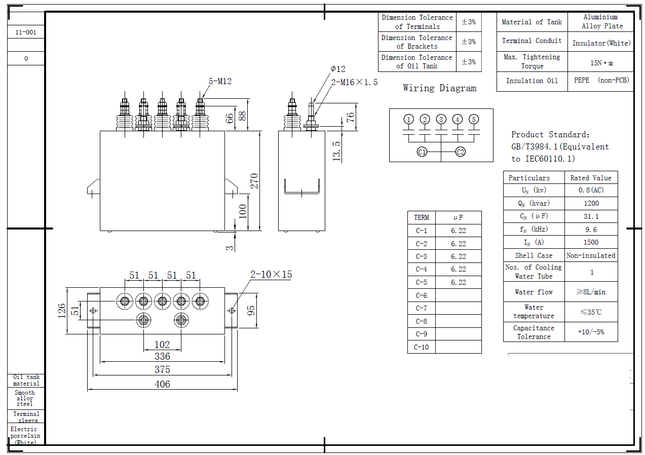

WC-1200KVAR-31uF-800VAC, Water Cooled PFC/Induction Heating Capacitor, 1200kvar, 800VAC, 31uF Characteristics and utility Railway grade 800VACrms, 1200kvar, 31uF Resin end sealing Screw terminals Suitable for hazardous environments Flat Base Standards IEC 60831-1/2 EN 60831-1/2   Specification Fastron Part Number WC-1200KVAR-31uF-800VAC Technology Dielectric of Metallized Polypropylene Dimensions 80 x 145 x 180mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage (DC) N/A Voltage (AC) 800VAC rms Capacitance 31uF Tolerance On Capacitance + 10% /- 5% Climate Category -25/+70°C Unit Weight 27kg Factory Pack Quantity 1   Datasheet TBC custom made product

Read more less
