IELHK1111-1REC4-64-4.00-AE-01-V, Air Pax DC Breaker 35 Amp DC, 50kA, 4 Pole, with Aux Contact, 2.8mm Quick Connect. Black with white markings Features : 3 Pole Auxiliary Contact Applications : On Board Vessel Earth Leakage Detection (Marine) Hydraulic/Magnetic Circuit Protection Specification Sensata - Klixon Part Number IELHK1111-1REC4-64-4.00-AE-01-V Supply Voltage 240VAC Dimensions 38.5mm x 80mm x 65mm Application Earth Leakage Detection 27mA - 50 Amp Trip Level 27mA (30mA Nominal) Relay Requires Air Pax LEL Series Breaker 4 Pole Protection IP20 Approvals E-11 GFP - UL 943 Category FTTJ2 when used in tandem with FPGM Marine Earth leakage Sensor Trip Time of Assembly 100mS or Less (60mS nominal) Sensing Coil Voltage Limit 600VAC max Operating Temnperature -35 to 66 Deg C Weight 200g Mounting Style Din Rail   Datasheet Product Datasheet

Read more less

229-3-1-65-5-9-90, Air Pax Circuit Breaker for Hydraulics, Supplementary Protector (UL 1077), 3 Pole, Series, 5/60Hz long delay with high pulse, 277/480VAC,100 Amp, 1/4 "-20 Stud (50 Amps Max),90 Amp Switch Rating Features : 3 Pole, Series 50/60Hz long delay with high pulse 277/480VAC,100 Amp 1/4 "-20 Stud (50 Amps Max), 90 Amp Switch Rating Applications : Hydraulic/Magnetic Circuit Protection Supplementary Protector (UL 1077) Specification Sensata - Klixon Part Number 229-3-1-65-5-9-90 Supply Voltage 277/480VAC Dimensions Application Supplementary Protector (UL 1077) Trip Level Relay 90 Amp Protection IP20 Approvals Trip Time of Assembly Sensing Coil Voltage Limit Operating Temnperature -35 to 66 Deg C Weight 1000g Mounting Style Din Rail   Datasheet Product Datasheet

Read more less

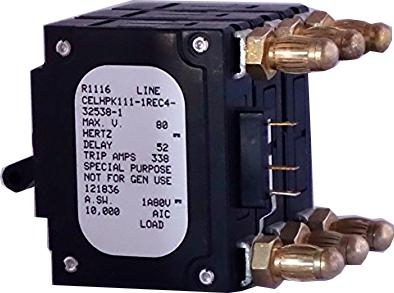

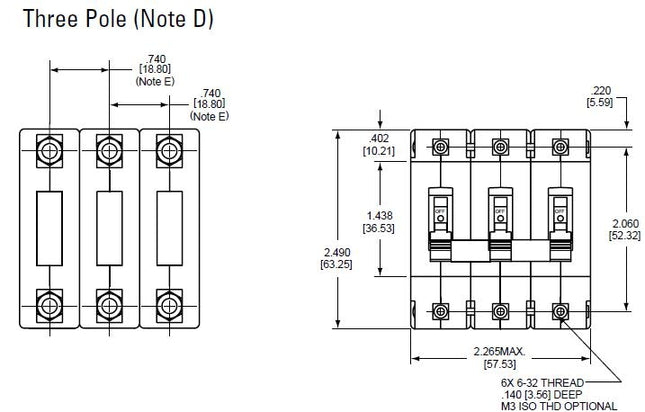

Air Pax CELHPK111-1REC4-52-300.-A-01-T, Hydraulic Magnetic Circuit Breaker 3 Pole 300 Amp 80VDC Features : Suitable for PGFM Series Earth Leakage Sensor Applications : On Board Vessel Earth Leakage Detection (Marine) Hydraulic/Magnetic Circuit Protection Specification Sensata - Klixon - Air Pax Part Number CELHPK111-1REC4-52-300.-A-01-T Working Voltage 80VDC Dimensions 58mm x 53mm Application Hydraulics or Magnetics Trip Level 300 Amp Relay N/A Protection IP20 Approvals TUV Trip Time of Assembly DC Long Delay Sensing Coil Voltage Limit 80VDC Operating Temnperature -35 to 65 Deg C Weight 300g Mounting Style Panel Mount Datasheet Product Datasheet

Read more less

LEL12-1REC5-37583-30-G2-V, Magenetic Circuit Breaker 30mA to 50 Amp Range, 240VAC Supply, Panel Mount, Suitable for PGFM Series Earth Leakage System Features : Suitable for PGFM Series Earth Leakage Sensor Applications : On Board Vessel Earth Leakage Detection (Marine) Hydraulic/Magnetic Circuit Protection Specification Sensata - Klixon Part Number LEL12-1REC5-37583-30-G2-V Supply Voltage 240VAC Dimensions 38.5mm x 80mm x 65mm Application Earth Leakage Detection 27mA - 50 Amp Trip Level 27mA (30mA Nominal) Relay Requires Air Pax LEL Series Breaker Protection IP20 Approvals E-11 GFP - UL 943 Category FTTJ2 when used in tandem with FPGM Marine Earth leakage Sensor Trip Time of Assembly 100mS or Less (60mS nominal) Sensing Coil Voltage Limit 600VAC max Operating Temnperature -35 to 66 Deg C Weight 200g Mounting Style Din Rail   Datasheet Product Datasheet

Read more less
