Heavy Duty AC Film Capacitors
-

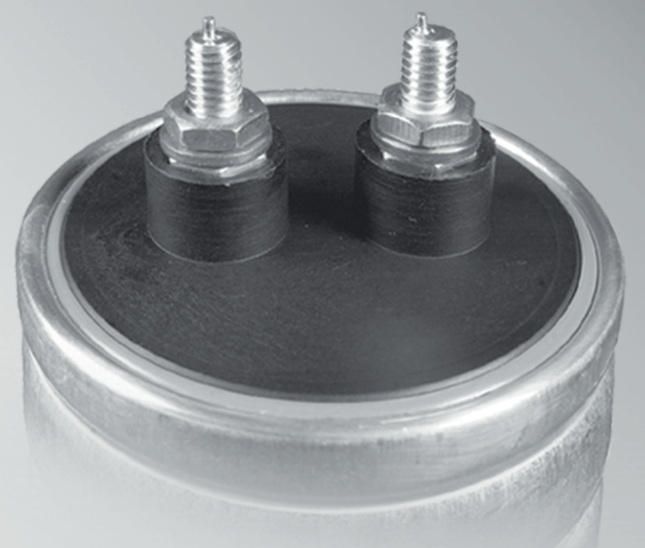

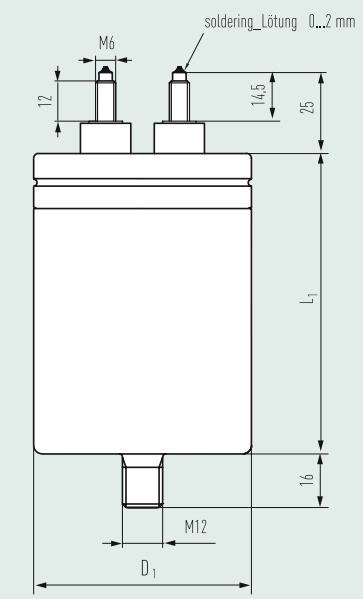

E62.G85-682G10, 6.8uF, 40x58mm Heavy Duty AC Film Power Capacitor w/Stud -40 to 85 °C 200,000 hrs, 1000VDC/640VAC
E62.G85-682G10, 6.8uF, 40x58mm Heavy Duty AC Film Power Capacitor w/Stud -40 to 85 °C 200,000 hrs, 1000VDC/640VAC Characteristics and utility 6.8uF 1000VDC/640VAC Metalized Polypropylene Film Connector type - M6 x 12mm Studs M12 Stud mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E62.G85-682G10 Technology Metalized Polypropylene Film Capacitor Dimensions ø50x85mm Mounting M12 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 1000VDC/640VAC Operating Temperature Range -40 to 85 °C Capacitance 6.8uF Tolerance On Capacitance +10 / -10% Lifetime 200,000 Hours @ 85 °C (Statistical Life) Termination Style Faston Unit Weight 0.07kg Factory Pack Quantity 21 (MOQ = 105)  Datasheet Product Datasheet
$49.00
$57.82 inclGST -
AKMJ-PC 50μF420VAC, AC Filter Capacitor Film Type ø65 x 132mm 420VAC 50uF, M8 Stud Bottom, 2 x M6 Terminals
AKMJ-PC 50μF420VAC, AC Filter Capacitor Film Type ø65 x 132mm 420VAC 50uF, M8 Stud Bottom, 2 x M6 Terminals, (Similar to LNF-P3A-50-30 with different stud sizes) Characteristics and utility 50uF, 420VAC0.0kvar 20kvar AC Filter Cap Connector type - Stud inserts Indoor mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Fastron Part Number AKMJ-PC 50μF420VAC Technology Film AC Filter Cap Dimensions ø60 x 140mm Mounting M8 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 420V Operating Temperature Range -25 to 70 °C Capacitance 50uF Tolerance On Capacitance +/- 5% Lifetime 100000 Hours @ 70 °C (Long Life) Termination Style M6 studs Unit Weight 0.5kg Factory Pack Quantity 50  Datasheet Datasheet
$105.00
$123.90 inclGST -

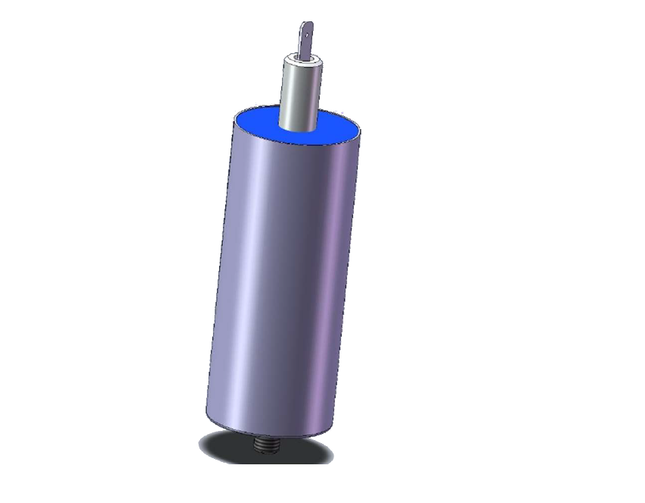

PAM 200-068 cv4D (K) Snubber Capacitor ø40 x 120mm 2kVAC 0.68uF, Railway Grade
PAM 200-068 cv4D (K) Snubber Capacitor ø40 x 120mm 2kVAC, Railway Grade 0.68uF Characteristics and utility Railway grade 2kVAC rms 0.68uF Resin end sealing Fastron terminal Suitable for hazardous environments Stud Mount Standards IEC 60831-1/2 EN 60831-1/2  Specification LeClanche Part Number PAM 200-068 cv4D (K) Technology Dielectric of Metallized Polypropylene Dimensions ø40 x 120mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage (DC) N/A Voltage (AC) 2kVAC rms Capacitance 0.68uF Tolerance On Capacitance +/- 10% Current Ieff (max) 18 Amp Repetitive Peak Current Icr (max) N/A Surge Voltage (Us) N/A Peak Voltage Ucr N/A ESL < 45nH Mounting M12 Stud Climate Category -25/+70°C Termination Style 6.3 x 0.8mm Faston Unit Weight 190g Factory Pack Quantity 1  Datasheet Product Datasheet Equivalents Alternative Â
$101.00
$119.18 inclGST -

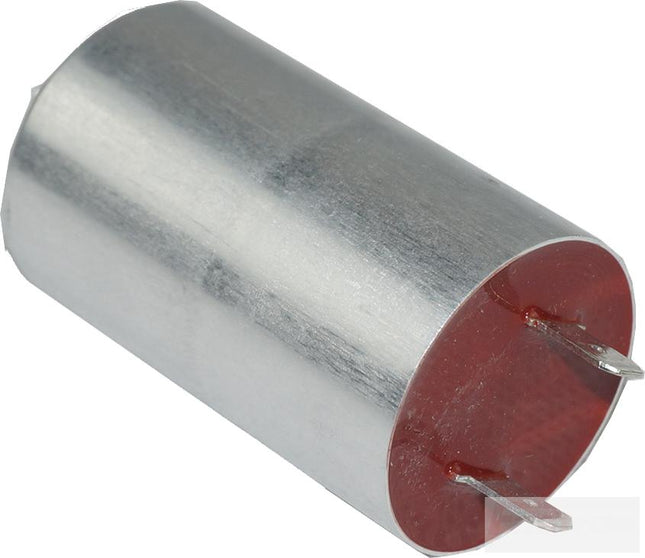

PAM 85-033 cv2, Snubber Capacitor ø35 x 58mm 850VAC 0.33uF, Railway Grade
PAM 85-033 cv2, Snubber Capacitor ø35 x 58mm 850VAC 0.33uF, Railway Grade Characteristics and utility Railway grade 1450VDC, 850VAC rms 0.33uF Resin end sealing Srew terminals Suitable for hazardous environments Stud Mount Standards IEC 60831-1/2 EN 60831-1/2  Specification LeClanche Part Number PAM 85-033 cv2 Technology Dielectric of Metallized Polypropylene Dimensions ø35 x 58mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage (DC) 1450VDC Voltage (AC) 850VAC rms Capacitance 0.33uF Tolerance On Capacitance +/- 10% Current Ieff (max) 9.2 Amp Repetitive Peak Current Icr (max) N/A Surge Voltage (Us) 3000V (60s) ESR 14.8 ESL N/A Mounting M12 Stud Climate Category 40/085/56 Termination Style 6.3 x 0.8mm Faston Unit Weight 500g Factory Pack Quantity 1  Datasheet Product Datasheet Â
$74.90
$88.38 inclGST -

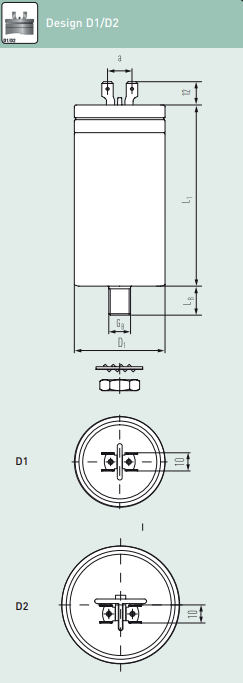

E62.F81-203D10, 20uF, 40x81mm Heavy Duty AC Film Power Capacitor w/Stud -40 to 85 °C 200,000 hrs, 640VAC/1000VDC
E62.F81-203D20, 20uF, 40x81mm Heavy Duty AC Film Power Capacitor, D1 Design w/Stud -40 to 85 °C 200,000 hrs, 640VAC/1000VDC Characteristics and utility 20uF 640VAC/1000VDC Metalized Polypropylene Film Connector type - M6 x 12mm Studs M12 Stud mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E62.F81-203D10 Technology Metalized Polypropylene Film Capacitor Dimensions ø40x81mm Mounting M12 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 640VAC/1000VDC Operating Temperature Range -40 to 85 °C Capacitance 20uF Tolerance On Capacitance +10 / -10% Lifetime 200,000 Hours @ 85 °C (Statistical Life) Termination Style 4 x Faston Terminals Unit Weight 0.14kg Factory Pack Quantity 21 (MOQ = 105)  Datasheet Product Datasheet
$87.50
$103.25 inclGST -
E62.Q17-803C60, 80uF, Heavy Duty AC Film Capacitor ø100 x 176mm, M6x12 terminals with Bushing. C6 Design,1075VAC/1680VDC
E62.Q17-803C60, 80uF, Heavy Duty AC Film Capacitor ø100 x 176mm, M6x12 terminals with Bushing. C6 Design,1075VAC/1680VDC Characteristics and utility 80uF 1075VAC/1680VDC Metalized Polypropylene Film Connector type - M6 x 12mm Studs M12 Stud mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E62.Q17-803C60 Technology Metalized Polypropylene Film Capacitor Dimensions ø100 x 176mm Mounting M12 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 1075VAC/1680VDC Operating Temperature Range -40 to 85 °C Capacitance 80uF Tolerance On Capacitance +10 / -10% Lifetime 200,000 Hours @ 85 °C (Statistical Life) Termination Style M6 x 12 studs Unit Weight 1.7kg Factory Pack Quantity 21 (MOQ = 105)  Datasheet Product Datasheet
$261.00
$307.98 inclGST -

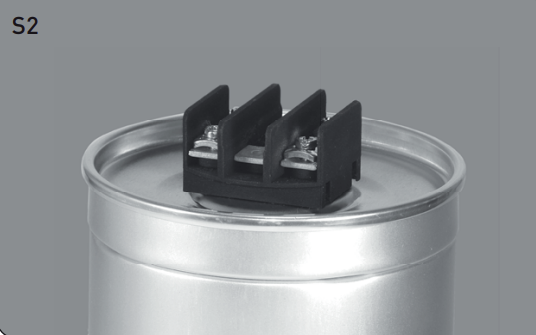

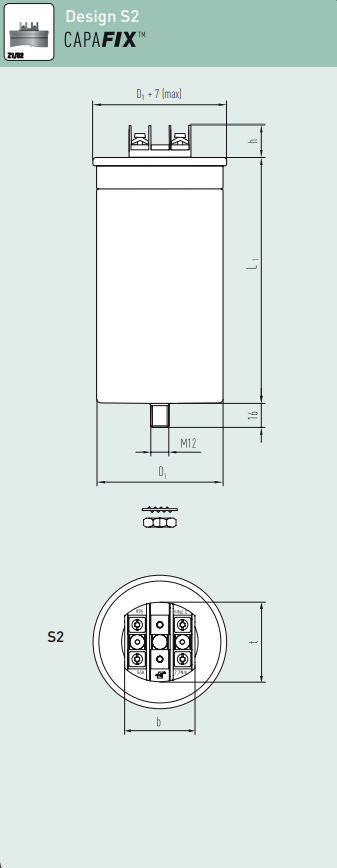

E62.M10-603S20, 60uF Heavy Duty AC Film Capacitor ø75 x 105mm, M5x12 terminals. S2 Design, 680VAC/1120VDC
E62.M10-603S20, 60uF Heavy Duty AC Film Capacitor ø75 x 105mm, M5x12 terminals. S2 Design, 680VAC/1120VDC Characteristics and utility 60uF 680VAC/1120VDC Metalized Polypropylene Film Connector type - M6 x 12mm Studs M12 Stud mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E62.M10-603S20 Technology Metalized Polypropylene Film Capacitor Dimensions ø75 x 105mm Mounting M12 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 680VAC/1120VDC Operating Temperature Range -40 to 85 °C Capacitance 60uF Tolerance On Capacitance +10 / -10% Lifetime 200,000 Hours @ 85 °C (Statistical Life) Termination Style M6 x 12 studs Unit Weight 1.1kg Factory Pack Quantity 21 (MOQ = 105)  Datasheet Product Datasheet
$225.00
$265.50 inclGST -

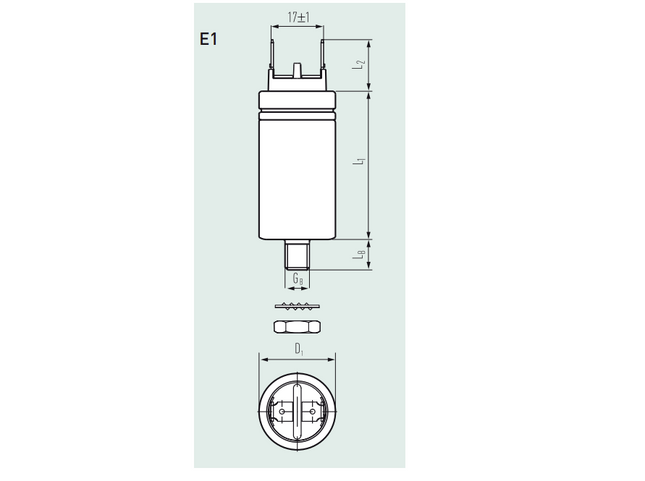

E62.E81-153E20, 15uF, 40x81mm Heavy Duty AC Film Power Capacitor w/Stud -40 to 85 °C 200,000 hrs, Voltage: 640VAC/1000VDC
E62.E81-153E20, 15uF, 40x81mm Heavy Duty AC Film Power Capacitor w/Stud -40 to 85 °C 200,000 hrs, Voltage: 640VAC/1000VDC Characteristics and utility 15uF 640VAC/1000VDC Metalized Polypropylene Film Connector type - M6 x 12mm Studs M12 Stud mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E62.E81-153E20 Technology Metalized Polypropylene Film Capacitor Dimensions ø40x81mm Mounting M12 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 640VAC/1000VDC Operating Temperature Range -40 to 85 °C Capacitance 15uF Tolerance On Capacitance +10 / -10% Lifetime 200,000 Hours @ 85 °C (Statistical Life) Termination Style 4 x Faston Terminals Unit Weight 0.14kg Factory Pack Quantity 21 (MOQ = 105) Datasheet Product Datasheet Alternative See E62.G85-153D10 for the closest replacement
$51.00
$60.18 inclGST -

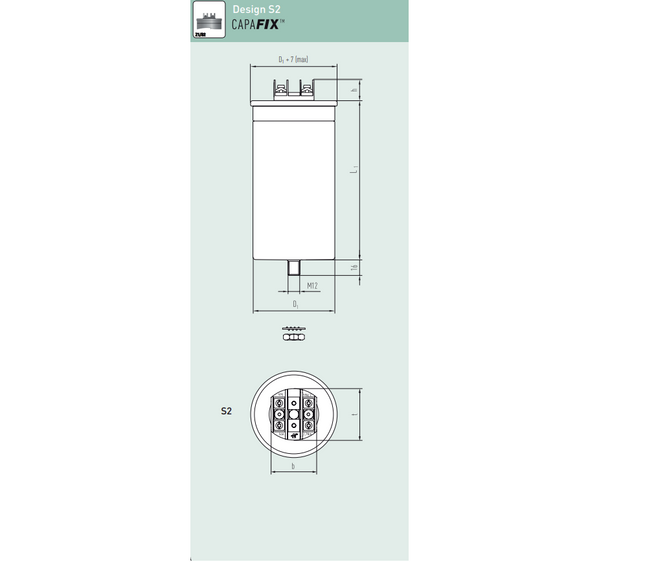

E62.N10-153S20, 15uF, Heavy Duty AC Film Capacitor ø85 x 105mm, M5x12 terminals. S2 Design, 1350VAC/2250VDC
E62.N10-153S20, 15uF, Heavy Duty AC Film Capacitor ø85 x 105mm, M5x12 terminals. S2 Design, 1350VAC/2250VDC Characteristics and utility 15uF 1350VAC/2250VDC Metalized Polypropylene Film Connector type - M6 x 12mm Studs M12 Stud mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E62.N10-153S20 Technology Metalized Polypropylene Film Capacitor Dimensions ø85 x 105mm Mounting M12 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 1075VAC/1680VDC Operating Temperature Range -40 to 85 °C Capacitance 15uF Tolerance On Capacitance +10 / -10% Lifetime 200,000 Hours @ 85 °C (Statistical Life) Termination Style M6 x 12 studs Unit Weight 1.1kg Factory Pack Quantity 21 (MOQ = 105)  Datasheet Product Datasheet
$225.00
$265.50 inclGST -
E62.M17-103C60, 10uF, Heavy Duty AC Film Capacitor ø75 x 176mm, M8x25 terminals with Bushing. C6 Design, Voltage: 2000VAC/3400VDC
E62.M17-103C60, 10uF, Heavy Duty AC Film Capacitor ø75 x 176mm, M8x25 terminals with Bushing. C6 Design, Voltage: 2000VAC/3400VDC Characteristics and utility 10uF 2000VAC/3400VDC Metalized Polypropylene Film Connector type - M6 x 12mm Studs M12 Stud mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E62.M17-103C60 Technology Metalized Polypropylene Film Capacitor Dimensions ø75 x 176mm Mounting M12 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 2000VAC/3400VDC Operating Temperature Range -40 to 85 °C Capacitance 68uF Tolerance On Capacitance +10 / -10% Lifetime 200,000 Hours @ 85 °C (Statistical Life) Termination Style M8 x 25 studs Unit Weight 1kg Factory Pack Quantity 21 (MOQ = 105)  Datasheet Product Datasheet
$204.00
$240.72 inclGST -

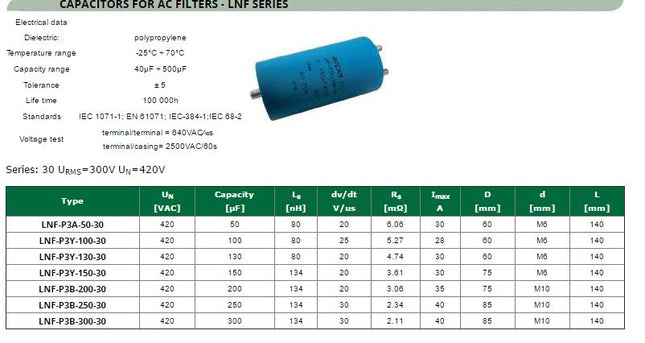

LNF-P3Y-100-30, AC Filter Capacitor Film Type ø60 x 140mm 420VAC 100uF, M6 Stud Bottom, 2 x M5 Terminals
LNF-P3Y-100-30, AC Filter Capacitor Film Type ø60 x 140mm 420VAC 100uF, M6 Stud Bottom, 2 x M5 Terminals Characteristics and utility 100uF, 420VAC0.0kvar 20kvar AC FIlter Cap Connector type - Stud inserts Indoor mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification ICAR Part Number LNF-P3Y-100-30 Technology Film AC Filter Cap Dimensions ø60 x 140mm Mounting M8 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 420V Operating Temperature Range -25 to 70 °C Capacitance 100uF Tolerance On Capacitance +/- 5% Lifetime 100000 Hours @ 70 °C (Long Life) Termination Style M6 Studs Unit Weight 0.5kg Factory Pack Quantity 50  Datasheet
$131.00
$154.58 inclGST -
LNF-P3A-50-30, AC Filter Capacitor Film Type ø60 x 140mm 420VAC 50uF, M6 Stud Bottom, 2 x M5 Terminals
LNF-P3A-50-30, AC Filter Capacitor Film Type ø60 x 140mm 420VAC 50uF, M6 Stud Bottom, 2 x M5 Terminals Characteristics and utility 50uF, 420VAC0.0kvar 20kvar AC FIlter Cap Connector type - Stud inserts Indoor mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification LeClanche Part Number LNF-P3A-50-30 Technology FIlm AC Filter Cap Dimensions ø60 x 140mm Mounting M8 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 420V Operating Temperature Range -25 to 70 °C Capacitance 50uF Tolerance On Capacitance +/- 5% Lifetime 100000 Hours @ 70 °C (Long Life) Termination Style M6 Studs Unit Weight 0.5kg Factory Pack Quantity 50  Datasheet
$125.00
$147.50 inclGST
