Trent NBR-FR22GR69V50T Series 50 Amp 690V Semiconductor I²t Fuse Cartridge Style Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 150 Amp Quick Release with RT18-125L fuse holder DIN Rail Mount with RT18-125L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-FR22GR69V50T Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 1600 A²/s Nominal Current (RMS + DC) 50 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 58 x 21mm Fuse Holder RT18-125L Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 13.8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet Product Datasheet Compatible Fuse Holder RT18-125L Datasheet

Read more less

Trent NBR-FR22GR69V32T Series 32 Amp 690V Semiconductor I²t Fuse Cartridge Style Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 132 Amp Quick Release with RT18-125L fuse holder DIN Rail Mount with RT18-125L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-FR22GR69V32T Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 605 A²/s Nominal Current (RMS + DC) 32 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 58 x 21mm Fuse Holder RT18-125L Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 13.8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet Product Datasheet Compatible Fuse Holder RT18-125L Datasheet

Read more less

Trent NBR Series 40 Amp 690V Semiconductor I²t Fuse Cartridge Style 51 x 14mm Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 63 Amp Quick Release with RT18-63L fuse holder DIN Rail Mount with RT18-63L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-CH14/UQ/40A/690V Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 750 A²/s Nominal Current (RMS + DC) 40 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 51 x 14mm Fuse Holder RT18-63L Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet Product Datasheet Compatible Fuse Holder RT18-63L

Read more less

Trent NBR-CH14/UQ/25A/690V Series 25 Amp 690V Semiconductor I²t Fuse Cartridge Style 51 x 14mm Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 63 Amp Quick Release with RT18-63L fuse holder DIN Rail Mount with RT18-63L fuse holder Compatible with all 51 x 14mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-CH14/UQ/25A/690V Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 320 A²/s Nominal Current (RMS + DC) 25 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 51 x 14mm Fuse Holder RT18-63L Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 7.6W DC Breaking Capacity 50kA Unit Weight 42g Factory Pack Qty 10   Datasheet Product Datasheet Compatible Fuse Holder RT18-63L Datasheet

Read more less

Trent NBR-FR22GR69V80T Series 80 Amp 690V Semiconductor I²t Fuse Cartridge Style 22 x 58mm Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 125 Amp Quick Release with RT18-125L fuse holder DIN Rail Mount with RT18-125L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-FR22GR69V80T Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre Arcing) 6600 A²/s Nominal Current (RMS + DC) 80 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 58 x 22mm Fuse Holder RT18-125L Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 13.8W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet Product Datasheet Compatible Fuse Holder RT18-125L Datasheet

Read more less

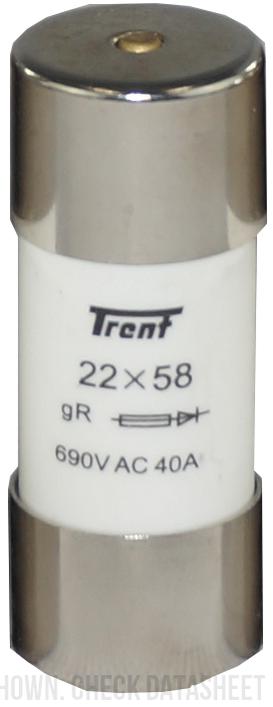

Trent NBR Series 40 Amp 690V Semiconductor I²t Fuse Cartridge Style Features Cylindrical Standard Fuses Sizes Wide Range of I²t Ratings up to 125 Amp Quick Release with RT18-125L fuse holder DIN Rail Mount with RT18-125L fuse holder Compatible with all 58 x 21mm fuse holders IEC Standard 60269.1 AND 4 690 V Voltage Rating complying with IEC 33 Applications Solid State Relay Switchboards Bridge rectifier Fusing Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-FR22GR69V40T Fuse Type I²t gR Class Nominal Voltage 690VAC @ 50Hz I²t Rating (Pre-Arcing) 750 A²/s Nominal Current (RMS + DC) 40 Amp Tested Breaking Capacity 200kA @ 690VAC Dimensions 58 x 21mm Fuse Holder RT18-125L Mounting Style Requires fuse holder Operating Temperature Range -40°C / 125°C Watt Loss 9.5W DC Breaking Capacity 50kA Unit Weight 60g Factory Pack Qty 10   Datasheet Product Datasheet Compatible Fuse Holder RT18-125L Datasheet
