DC Contactors

Gigavac P115FDA, MiniTactor Contactor, 1000VDC, 50A @ 25°C, 25A @ 85°C, SPST-NO, 48VDC Coil Contactor Features Hermetically Sealed (Patented) rated to 175 Deg C High Efficiency Dual DC Coils - 12,24,48VDC options Ideal for battery powered systems or where low power is needed Built in Coils suppression for all DC Coils Small and lightweight Flexible package for installation Specification Gigavac Part Number P115FDA Main Contact Type SPST-NO Auxiliary Contact Type N/A Coil Voltage 48VDC Load Current 50A @ 25°C, 25A @ 85°C Mechanical Life @ 0 Amp 100,000 Operations Impulse Withstand 6kV rms Control Input Terminals M3 Screw Special Feature N/A Mounting Style Panel Mount (M4) Load Voltage Range 1500VDC Standards UL508, NEC 690.11 and 690.12 DC Termination Style M4 Screw Unit Weight 135g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Gigavac GXC16CEBX, CAN Bus Contactor SPST-NO, 600 AMP, 12-800VDC, 24VDC Coil, 8 Pin Deutsch Connector, SPST-NO Auxiliary Contact, IP67, IP69K Features CAN Bus Comms Voltage Sensing Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69K SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Salt Fog MIL-STD-810 Specification Gigavac Part Number GXC16CEBX Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 24VDC Load Current 600 Amp Voltage Sensing NO Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.2kV rms Control Input Terminals 38cm Flying Leads Aux Contact Terminals 38cm Flying Leads Special Feature Hermetically Seal rated to 175 Deg C Mounting Style Panel Mount (M5) Voltage Sensing YES Comms CAN BUS Load Voltage Range 12-800VDC Standards UL1604, IP67, IP69K, SAE J1171, ISO8846 Termination Style M8 & Deutsch 8 Pin Connector Unit Weight 440g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Gigavac GXC16CEBV, CAN Bus Contactor SPST-NO, 600+ AMP, 12-800VDC, 24VDC Coil, 8 Pin Deutsch Connector, SPST-NO Auxiliary Contact, IP67, IP69K, with Voltage Sensing Features CAN Bus Comms Voltage Sensing Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69K SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Salt Fog MIL-STD-810 Specification Gigavac Part Number GXC16CEBV Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 24VDC Load Current 600 Amp Voltage Sensing YES Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.2kV rms Control Input Terminals 38cm Flying Leads Aux Contact Terminals 38cm Flying Leads Special Feature Hermetically Seal rated to 175 Deg C Mounting Style Panel Mount (M5) Voltage Sensing YES Comms CAN BUS Load Voltage Range 12-800VDC Standards UL1604, IP67, IP69K, SAE J1171, ISO8846 Termination Style M8 & Deutsch 8 Pin Connector Unit Weight 440g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

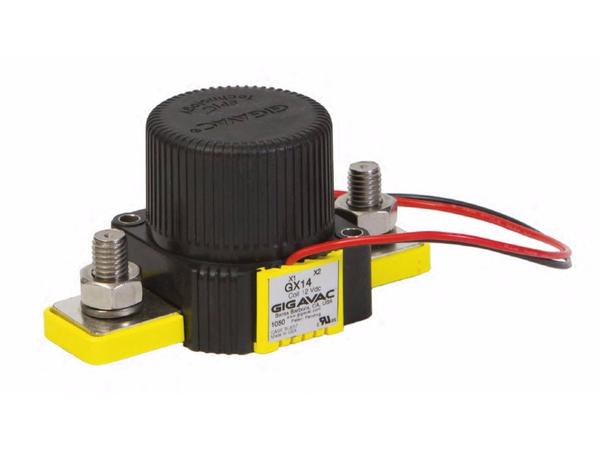

Gigavac GX14CAC, Contactor SPST-NO, 350+ AMP, 12-800VDC, 24VDC Coil, 38cm Flying leads, SPST-NC Auxiliary Contact, IP67, IP69K Features Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69K SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Salt Fog MIL-STD-810 Specification Gigavac Part Number GX14CAB Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 24VDC Load Current 350+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.2kV rms Control Input Terminals 38cm Flying Leads Aux Contact Terminals 38cm Flying Leads Special Feature Hermetically Seal rated to 175 Deg C Mounting Style Panel Mount (M5) Load Voltage Range 12-800VDC Standards UL1604, IP67, IP69K, SAE J1171, ISO8846 Termination Style M8 Unit Weight 440g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Gigavac GX11CAC, Contactor SPST-NO, 150+ AMP, 12-800VDC, 24VDC Coil, 38cm Flying leads, SPST-NC Auxiliary Contact, IP67, IP69K Features Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69K SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48,72,120VDC, or 120,240VAC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Salt Fog MIL-STD-810 Specification Gigavac Part Number GX11CAC Main Contact Type SPST-NO Auxiliary Contact Type SPST-NC Coil Voltage 24VDC Load Current 150+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.2kV rms Control Input Terminals 38cm Flying Leads Special Feature Hermetically Seal rated to 175 Deg C Mounting Style Panel Mount (M5) Load Voltage Range 12-800VDC Standards UL1604, IP67, IP69K, SAE J1171, ISO8846 Termination Style M8 Unit Weight 440g Factory Pack Qty 1   Datasheet Product Datasheet Equivalent Parts GX11CAB

Read more less

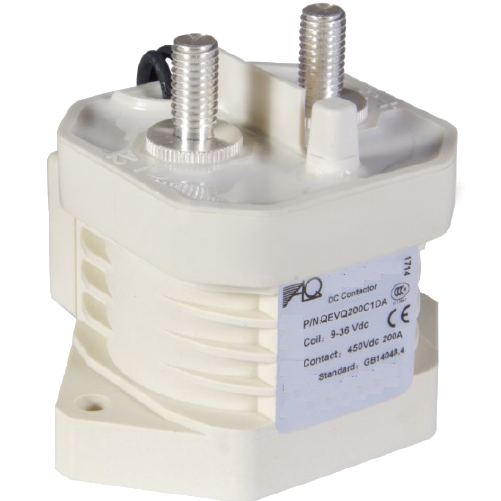

Fastron Electronics QEVQ200G1D01A71/SP1, Contactor SPST-NO Polarised, 200 AMP, 12-800VDC, 12-36VDC Coil, SPST-NO Auxiliary Contact, with female Molex connector, and M6 Inserts Features Hermetically Sealed with inert gas CE, CCC Approved Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Side mounted version available Equivalent to Durakool DEVR20-5091-S9-0936-R1 Specification Fastron Part Number QEVQ200G1D01A71/SP1 Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 12-36VDC Load Current 200 Amp Mechanical Life @ 0 Amp 200,000 Operations Dielectric at Sea Level (leakage <1mA) 2.5kV rms Control Input Terminals Lead Wire Connection with Molex 43645-0200 Female Plug Special Feature N/A Mounting Style Panel Mount (M5) Load Voltage Range 12 - 800VDC Standards CE, CCC Termination Style M6 Inserts (Female Thread) Unit Weight 550g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Fastron Electronics QEVQ200G1D01A71, Contactor SPST-NO Polarised, 200 AMP, 12-800VDC, 12-36VDC Coil, SPST-NO Auxiliary Contact, and M6 Inserts Features Hermetically Sealed with inert gas CE, CCC Approved Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Side mounted version available Specification Fastron Part Number EVQ200G1D01A71 Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 12-36VDC Load Current 200 Amp Mechanical Life @ 0 Amp 200,000 Operations Dielectric at Sea Level (leakage <1mA) 2.5kV rms Control Input Terminals Lead Wire Connection with Molex 43645-0200 Female Plug Special Feature N/A Mounting Style Panel Mount (M5) Load Voltage Range 12 - 800VDC Standards CE, CCC Termination Style M6 Inserts (Female Thread) Unit Weight 550g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Gigavac GX66CDB, Contactor SPST-NO, 600+ AMP, 12-800VDC, 24VDC Coil, M4 Coil Screw, SPST-NO Auxiliary Contact, IP67, IP69K Features Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69K SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed PWM option provides additional drive control flexibility Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Salt Fog MIL-STD-810 Specification Gigavac Part Number GX66CDB Main Contact Type SPST-NO Auxiliary Contact Type None Coil Voltage 48VDC Load Current 600+ Amp Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.2kV rms Control Input Terminals M4 Screw Aux Contact Terminals M4 Coil Screw Special Feature Hermetically Seal rated to 175 Deg C Mounting Style Panel Mount (M5) Load Voltage Range 12-800VDC Standards UL1604, IP67, IP69K, SAE J1171, ISO8846 Termination Style M8 Unit Weight 750g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Gigavac GXSA16BEB, Contactor with Overcurrent Trip, SPST-NO, 600+ AMP, 12-800VDC, 12VDC Coil, 8 Pin Deutch Connector, SPST-NO Auxiliary Contact, IP67, IP69K Features Hermetically Sealed (Patented) rated to 175 Deg C UL1604 for Class I & II Div 2 and Class III for use in hazardous locations IP67 & IP69K SAE J1171 External ignition protection ISO8846 Protection against ignition around flammable gasses CE Approved High Efficiency Dual DC Coils - Very low 12,24,48VDC continuous coil power with no EMI emissions or cross-talk on your system control power Ideal for battery powered systems or where low power is needed Built in Coils suppression for all DC Coils Flexible package for installation Chassi level power terminals Salt Fog MIL-STD-810 Specification Gigavac Part Number GXSA16BEB Main Contact Type SPST-NO Auxiliary Contact Type SPST-NO Coil Voltage 12VDC Load Current 600+ Amp Over Current Detection Yes Mechanical Life @ 0 Amp 1,000,000 Operations Dielectric at Sea Level (leakage <1mA) 2.2kV rms Control Input Terminals 8 Pin Deutch Connector Aux Contact Terminals 8 Pin Deutch Connector Special Feature Hermetically Seal rated to 175 Deg C Mounting Style Panel Mount (M5) Load Voltage Range 12-800VDC Standards UL1604, IP67, IP69K, SAE J1171, ISO8846 Termination Style M12 Unit Weight 900g Factory Pack Qty 1   Datasheet Product Datasheet

Read more less
