Fastron OEM Collection for Pricing

SSPA-BLUE-4mm (2pcs), BLUE 4mm Fully Sheathed Piggy Back Safety/Banana Plugs, 32 Amp, 1000V Rated. For Test Equipment/Leads 32 Amp / 1000V AC (rms) or DC Maximum Rating Fully Sheathed 4mm Piggy Back Plug Type Suitable For Laboratory Test Equipment

Read more less

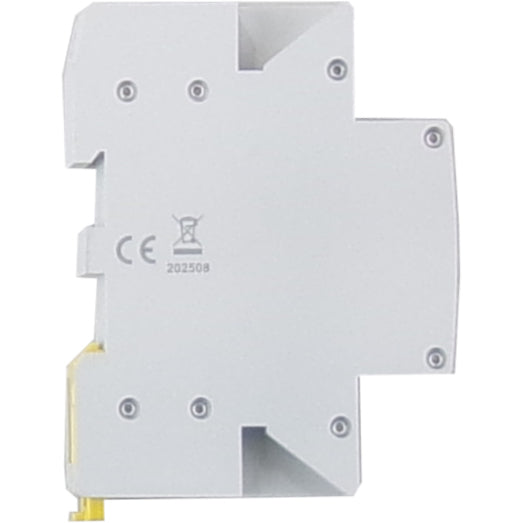

Fastron Electronics FMC1-6301-230, 1 Pole Configuration_SPST (1 x NC), Modular Contactor 250VAC 63 Amp (AC-1), 230VAC 50/60Hz Control Voltage Features 40 Amp (rms) @ 250VAC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FMC1-6301-230 Switching Type Configuration_SPST (1 x NC) Approvals CE Coil Voltage 230VAC 50/60Hz Load Current (RMS) 63 Amp (rms) @ 250VAC AC-1,AC-7a / 25 Amp (rms) AC-3 /AC-7b Special Feature 63 Amp in Single DIN Width (18mm) Mounting Style DIN Rail Mount Load Voltage Range 250VAC 50/60Hz Insulation Voltage 500VAC Isolation 2.5kV Termination Style Screw Unit Weight 130g Factory Pack Qty 20 Datasheet Contactor Datasheet

Read more less

Fastron FRT8-X2/W240, Digital Display / Multifunction Timer 12-240 V AC/DC, 0.1s - 99 Days, 2 x SPDT 16 Amp Features : Digital Display Multi-range (1s - 99days) Multi-voltage 12 →240 V AC/DC LED status indicator Possibility of external load connection in parallel to the control input Multifunction Timers Includes The Following : Specification Fastron Part Number FRT8-X2/W240 Function Multifunction Timer Nominal Voltage 12 → 240 V AC/DC Digital Output 2 x C/O (SPDT) (Changeover -Single Pole), 250VAC/DC @ 16 Amp Min Breaking Current 10mA/12VDC Timing Ranges Selectable 0.1s - 99 Days Minimum Pulse Duration 30ms/100ms with load Repeatability 0.5% Reset Time 120ms Isolation 4kV Repetition Accuracy 0.5% Threshold Adjustment Range 10 → 100 % of the range Termination Style Screw Weight 80g Factory Pack Qty 1 Certification CE, RoHS Over Voltage Category 3 in accordance with IEC/EN 60664-1 Pollution Degree 2 in accordance with IEC/EN 61131-2 Protection rating IP40 (Front), IP20 (Rear) Mechanical Resistance Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) Operating Temperature -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22   Datasheet Product Datasheet Fastron Monitoring/Time Relays Catalogue For items in our catalogue which are not listed online please Contact Us for Possible Replacement

Read more less

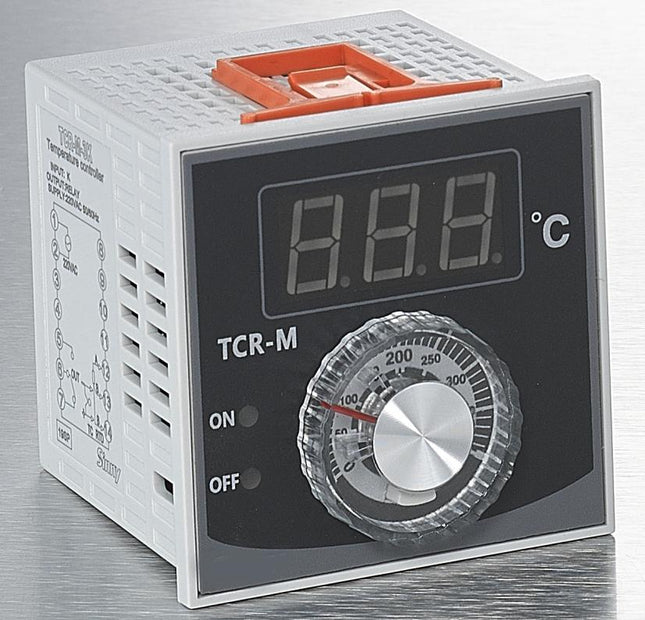

TCR-M-3-K HEATING Temperature Controller, Analogue Dial, 72x72mm, 230VAC, C/O Relay output, Type K Input, 0-400 Deg C 3-digit display (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated ON/OFF Relay, output, Optional COOLING or time proprtional versions output available Each unit needs just 75 mm depth panel space Specification Fastron Part Number TCR-M-3-K Control Output Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Input Type K Thermocouple (0-400 Deg C) Control Mode Time Proportional Control Mounting Style 72x72mm Panel Mount Control Range 0-400 Deg C Supply Voltage 230VAC Termination Style Screw Sampling Time 50ms Weight 270g Factory Pack Qty 1   Datasheet TCR Datasheet and User Manual

Read more less

Fastron FIR-16-20M-24VDC / 48VAC, Two Pole 2 x SPST NO Bistable Relay 240VAC, 16 Amp, 24VDC / 48VAC Control Voltage, 50/60Hz Features 16 Amp (rms) @ 240VAC DIN Rail Mount Slim package CE Compliant to IEC 60664 IP20 Specification Fastron Part Number FIR-16-20M-24VDC / 48VAC Switching Type 2 x SPST NO Approvals CE Coil Voltage 24VDC / 48VAC Load Rating 16 Amp Special Feature Mounting Style DIN Rail Mount Load Voltage Range 240VAC 50/60Hz Isolation 4kV Termination Style Screw Unit Weight 295g Factory Pack Qty 20   Datasheet Datasheet

Read more less

Fastron FDH4048ZA4, Solid State Relay, 480VAC, 40 Amp, 90-280VAC Control, Zero Crossing, Panel Mount, w/plastic Cover Ratings from 25A to 125 Amp @ 48-480VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs CE Compliant to EN60950-1 AC & DC control types Direct bond copper substrate Direct power lead frame Specification Fastron Part Number FDH4048ZA4 Switching Type Zero Crossing CE Yes Control Voltage 90-280VAC Load Current 40Amp (rms) Surge Capability 450 Amp (peak) Special Feature LED Status Indicator Mounting Style Panel Mount Load Voltage Range 90-480VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 100g Factory Pack Qty 20   Datasheet Product Datasheet Equivalent Parts D2440

Read more less

FAST ONE SLIM AHF-44A-400-4W, Active Harmonic Filter & Static Var Generator, 30Kvar/44 Amp, 3 Phase 4 Wire, 380VAC +/-20%, RACK MOUNT ONLY, NOTE for AHF function the module is limited to 30 Amp For Automatic Switching of Power Factor Correction Capacitors according to changing site conditions. and for the filtering or control of Harmonic Distortion Features Automatic Power Factor Correction up to Cos φ = 0.99 Overtemperature Alarm Optional RS485 Comms 3 Year Fastron Electronics Warranty Modular Construction for Rack or Wall Mount Installtions Perfect for Residential Applications Stack multiple modules for larger Power Factor Correction Requirements   Specification Fastron Part Number FAST ONE SLIM AHF-44A-400-4W Function Reactive Power Correction & Rack Mounted Active Harmonic Filter Rating 44 Amp @ 50 Deg C /30Kvar (note for AHF function, Current should be limited to 30 Amp Nominal Voltage (Un) 380VAC Line to Line 50Hz +/-20% Switch Delay Time Instant Correction/Inverter Based Desired Harmonic 0.99 IND - 0.99 CAP LCD Display Accuracy IGBT Temp, Grid Current Grid THDi, Grid PF, Grid Imbalance Current imbalance < 5%  Comms RS485 (Optional) Mounting Style , RACK MOUNT ONLY Termination Style Screw Dimensions D:400x88.2x448.5 Weight 17kg Certification EN 61000-6-4:2007+A1:2011 EN 61000-6-2:2005 EN 61000-3-2:2014 EN 61000-3-3:2013+A1:2019 Factory Pack Qty 1 Material of housing PC/ABS Unflammable, according to UL 94 V-0, & Stainless Steel Painted RAL 1013 Enclosure protection IP21 Safety According to EN 61 010-1, installation category III Pollution degree 2 Operating Temperature -20...55 °C Datasheet User Manual Datasheet

Read more less

Fastron Electronics FEFC205-80-T, 2 Stage EMI (RFI) Output Sine Wave Filter [Suitable For Inverter] for 3-phase systems, 80 Amp, 400VAC Features Suitable alternative to Schaffner FN3258(Input) or FN5020(Output) Series 3 phase Output Sine wave filter with high attenuation 400VAC +10% Applications VSD Drives or Controlled Rectifiers For Industrial Applications Suitable for use in equipment according to IEC/UL 60950 Medical Version Available Specification Fastron Part Number FEFC205-80-T Rated Voltage 400V Rated Current 80A Filter Stages 2 Stage (3 Phase 3 wire) Operating Temperature -25°C to 85°C Filter Type Excellent Attenuation for Sine Wave Output, Moderate Attenuation for input Line Filtering Leakage Current N/A Mounting Panel Mount - Case 32-7 Material Metal Termination Style Screw Weight 4.5kg Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 2.2kV CE, ROHS Yes   Datasheet Product Datasheet

Read more less

Fastron Electronics FEFC205-20-T, 2 Stage EMI (RFI) Output Sine Wave Filter [Suitable For Inverter] for 3-phase 3 wire systems, 20 Amp, 400VAC Suitable alternative to Schaffner FN3258(Input) or FN5020(Output) Series 3 phase Output Sine wave filter with high attenuation 400VAC +10% Applications VSD Drives or Controlled Rectifiers For Industrial Applications Suitable for use in equipment according to IEC/UL 60950 Medical Version Available Specification Fastron Part Number FEFC205-20-T Rated Voltage 400V Rated Current 20A Filter Stages 2 Stage (3 Phase 3 wire) Operating Temperature -25°C to 85°C Filter Type Excellent Attenuation for Sine Wave Output, Moderate Attenuation for input Line Filtering Leakage Current N/A Mounting Panel Mount - Case 32-7 Material Metal Termination Style Screw Weight 2.0kg Factory Pack Qty 1 Protection Class From front side IP 40 acc. to IEC 60529 Isolation 2.2kV CE Yes   Datasheet Product Datasheet

Read more less

TSFFNCR-130, 130 Deg C, NC Thermal Switch 10 Deg C Hysteresis, +/-2% Tolerance, Fixed Flange Mount, with 90 Deg Raised Terminals Datasheet Product Datasheet

Read more less

HTR100W168RADJ, 680 Ohm 100W Wire Wound Adjustable Resistor Tolerance +/-5% Comes with Mounting Hardware Other Sizes and Ratings available on request. Datasheet Product Datasheet Other Available Ratings   TYPEDESIGNATION VOLTAGERATING250oC RISE FORMER DIMENEIONS IN INCHES (mm) STANDARDRESISTANCERANGE   LENGTH OUTSIDEDIAMETER APPROX O.D.WHEN COATEDINCL. BAND INSIDEDIAMETER HOLE CENTRESFORMOUNTING FEET   MIN MAX ROUNDFORMERS HTR 3 3 1/2 (13) 5/32 (4) 7/32 (5.5) 1/16 (1.5) n/a 0.05 10,000 HTR 5 5 7/8 (22) 5/16 (8) 3/8 (10) 3/16 (5) n/a 0.05 25,000 HTR 10 10 1 3/4 (45) 5/16 (8) 3/8 (10) 3/16 (5) n/a 0.05 40,000 HTR 20 20 2 (51) 9/16 (14) 21/32 (17) 3/8 (10) 2 3/4 (70) 0.05 40,000 HTR 25 25 2 1/2 (64) 9/16 (14) 21/32 (17) 3/8 (10) 3 1/4 (83) 0.05 40,000 HTR 30 30 3 (76) 9/16 (14) 21/32 (17) 3/8 (10) 3 3/4 (95) 0.05 50,000 HTR 40 40 3 1/2 (89) 3/4 (19) 13/16 (21) 1/2 (13) 4 1/8 (105) 0.05 75,000 HTR 50 50 4 1/2 (114) 3/4 (19) 13/16 (21) 1/2 (13) 5 1/8 (130) 0.05 80,000 HTR 65 65 4 1/2 (114) 1 1/8 (29) 1 13/16 (30) 3/4 (19) 5 3/4 (146) 0.05 100,000 HTR 75 70 6 1/2 (165) 3/4 (19) 13/16 (21) 1/2 (13) 7 1/8 (181) 0.05 100,000 HTR 100 100 6 1/2 (165) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 7 3/4 (197) 0.1 150,000 HTR 150 150 8 1/2 (216) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 9 3/4 (248) 0.1 200,000 HTR 200 200 10 1/2 (267) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 11 3/4 (298) 0.1 250,000 HTR 250 250 12 1/2 (318) 1 1/8 (29) 1 3/16 (30) 3/4 (19) 13 3/4 (350) 0.1 250,000 HTR 350 350 10 1/2 (267) 1 5/8 (41) 1 11/16 (43) 1 1/8 (29) 11 1/2 (292) 0.2 250,000 HTR 500 500 10 (254) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 11 (279) 0.2 250,000 HTR 750 750 12 (305) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 13 (330) 0.2 250,000 HTR 1000 1000 18 (457) 2 1/2 (64) 2 5/8 (67) 1 3/8 (35) 19 (483) 0.2 250,000 OVAL HTF 20 20 1 1/4 (32) WIDTH & THICKNESS 1 x 1/14 (25 x 6) ALL LENGTHS 1 1/16 x 3/4 (15 x19) ALL LENGTHS 1 7/8 (48) 0.1 30,000 HTF 30 30 2 (51) 2 5/8 (67) 0.75 50,000 HTF 40 40 2 1/2 (64) 3 1/8 (79) 1 60,000 HTF 50 50 3 1/2 (89) 4 1/8 (104) 1 70,000 HTF 65 65 4 3/4 (120) 5 3/8 (136) 1 80,000 HTF 75 75 6 (152) 6 5/8 (168) 1 90,000 HTF 100 100 8 1/2 (216) 9 1/8 (232) 1 100,000

Read more less
