Fastron OEM Collection for Pricing
-
FTCK-5-EGT-3000-B-INC-1/8 EGT Vehicle Exhaust Sensor, Type K MIMS Class B, 1/8" NPT Inconel 600 80mm x 50mm x 4.8mm Probe w/ 3000mm Screened Teflon/Braided SS cable, 0 to 1100 Deg C
Fastron FTCK-5-EGT-3000-B-INC-1/8" NPT EGT Vehicle Exhaust Sensor, Type K MIMS Class B, Inconel 600 80mm x 50mm x 4.8mm, 0 to 1100 Deg C 1/8" NPT Compression Fitting Inconel 600 High Durability Class A Accuracy Teflon SS Braided Cable Low Long Term Drift Rated for 0 to 1100 Deg C Max 80mm x 50mm x 4.8mm MIMS Specification Fastron Part Number FTCK-5-EGT-3000-B-INC-1/8 Sensor Type Type K Thermocouple No of Wires 2 Probe Length 80 x 50mm Sheath Thickness 4.8mm Sheath Material Inconel 600 Accuracy Class A Approvals N/A Cable length 3 Meters Cable Type Teflon/Braided Stainless Steel with Spring Bayonet Cap Temperature Range 0 to 1100 Deg C Special Feature Quick Release Fitting, Strain Relief Spring Cable Mounting Style Quick Release Fitting Weight 300g Factory Pack Qty 1 Datasheet Datasheet
$89.00
$105.02 inclGST -
Flange for 6mm, Thermocouple or RTD, Compression Fitting, 304 SS Body with Brass Compression Ring Insert
Flange for 6mm Thermocouple or RTD, Compression Fitting, Stainless Steel, Compression Style
$22.75
$26.85 inclGST -
Bayonet Cap 10mm Steel 1/8" BSPT Fitting for use with Plastic industry Thermocouple
Bayonet Cap 10mm Steel 1/8" BSPT Fitting for use with Plastic industry Thermocouple 1/8" BSPT -10mm Diameter with Fine Pitch Steel with Nickel plating
$9.00
$10.62 inclGST -
FTCK-PIPE-3000, Type K Clamp Style Thermocouple for Pipes, Various Clamp Sizes, 3000mm 2 Wire Braided SS/Fibreglass/Teflon Wire, CE, ANSI, ROHS Approved
Free Aus Post Shipping for $300 SpendFastron FTCK-PIPE-3000, Type K Clamp Style Thermocouple for Pipes, Various Clamp Sizes, 3000mm 2 Wire Braided SS/Fibreglass/Teflon Wire, CE, ANSI, ROHS Approved Features Class A Accuracy Pipe Clamp Style Sensor Low Long Term Drift Rated for -20 to 370 Deg C Max 3000mm Tail Length Available in custom lengths Fibreglass Sheath Specification Fastron Part Number FTCK-PIPE-3000 Sensor Type Type K Thermocouple Ungrounded No of Wires 2 TailLength 3000mm or custom Clamp Size 7/32 -> 5/8", 3/8 -> 1/2", 3/8 -> 5/8", 1/2 -> 5/8", 5/8 -> 3/4", 3/4 -> 1", 1 1/4 -> 1 1/2", 1 1/4 -> 1 3/4", 1 1/2 -> 2", 1 3/4 -> 2 1/4", 2 1/16 -> 3", 2 5/16 -> 3 1/4", 3 -> 3 1/4", 3 - 1/4", 3 -> 3 1/2", 4 -> 4 1/2", 4 1/6 -> 5", 4 5/8 -> 5 1/2", 5 1/8 -> 6", 5 7/8 -> 6 3/4" Sheath Material Fibreglass Accuracy Class A Cable Type Briaded SS/Fibreglass/Teflon Temperature Range -20 to 370 Deg C Special Feature Pipe Clamp Mounting Style Clamp Weight 300-500g Factory Pack Qty 1 Datasheet Product Datasheet
-
FTCK-BLT-3000, Type K Bolt Style Thermocouple for Machine, Various Washer Sizes, 3000mm 2 Wire Braided SS/Fibreglass/Teflon Wire, CE, ANSI, ROHS Approved
Free Aus Post Shipping for $300 SpendFastron FTCK-BLT-3000, Type K Bolt Style Thermocouple for Machine, Various Washer Sizes, 3000mm 2 Wire Braided SS/Fibreglass/Teflon Wire, CE, ANSI, ROHS Approved Features Class A Accuracy Washet/Bolt Style Sensor Low Long Term Drift Rated for -20 to 370 Deg C Max 3000mm Tail Length Available in custom lengths Fibreglass Sheath Specification Fastron Part Number FTCK-BLT-3000 Sensor Type Type K Thermocouple Ungrounded No of Wires 2 TailLength 3000mm or custom Washer Size M5(1/8"),M6(3/16"),M8(1/4"),M10(3/8"),M12(1/2") Sheath Material Fibreglass Accuracy Class A Cable Type Briaded SS/Fibreglass/Teflon Temperature Range -20 to 370 Deg C Special Feature Ceramic Mounting Style Bolt Weight 300-500g Factory Pack Qty 1 Datasheet Product Datasheet
-

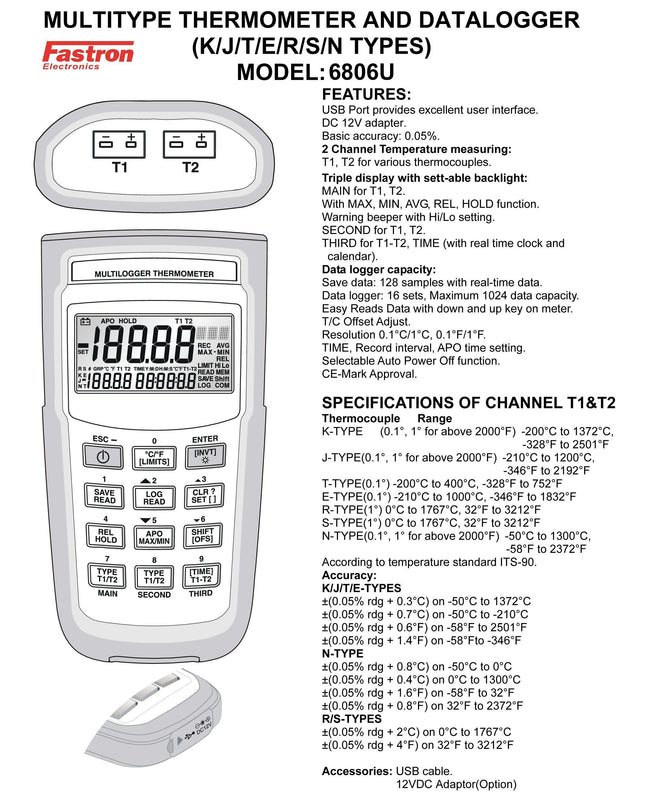

6806U USB Battery Powered Dual Thermocouple Input Temperature Logger
Free Aus Post Shipping for $300 Spend6806U USB Battery Powered Dual Thermocouple Input Temperature Logger Features 12VDC Powered (powerpack included) Battery Powered USB Data download Dual Input Type K/J/T/E/R/S/N Thermocouples 128 real time samples 16 sets of dta logging, 1024 Data capacity T/C Offest Adjustment CE Approved Resolution 0.1 Deg C Accuracy better than 0.05 Deg C Datasheet Datasheet
-
FTCS Series Type S Ceramic Thermocouple, Recrystallised Allumina 1400ºC 21x50mm Support Tube, KNE(wire entry:M20x1.5, probe entry: G1/2'') Alminium Die Cast Terminal Head, 0.35 Wire Diameter
Free Aus Post Shipping for $300 SpendFastron FTCS Series Type S Ceramic Thermocouple, Various Lengths Recrystallised Allumina 1400ºC 21x50mm Support Tube, KNE Alminium Die Cast Terminal Head, KNE(wire entry:M20x1.5, probe entry: G1/2'') Class A Accuracy 50mm Support Tube 0.35mm Internal wire diameter Low Long Term Drift Rated for -50 to 1400 Deg C Max Terminal Head Connection 300(50)mmor 450(50)mm Long x 16(21)mm Sheath Ceramic Sheath with Recrystallaised Allumina Recommended to use Flange Fitting for mounting Specification Fastron Part Number FTCS Series Sensor Type Type S Thermocouple No of Wires 2 Probe Length 300mm or 450mm (Includes 50mm Support Tube) Sheath Thickness 16(21)mm Sheath Material Ceramic & Recrystallasied Allumina Accuracy Class A Approvals CE, ANSI, ROHS Cable Length Terminal Head Terminal Head Type Die Cast Alloy Terminal Head, , KNE(wire entry:M20x1.5, probe entry: G1/2'') Temperature Range -50 to 1400 Deg C Special Feature Ceramic Mounting Style Flange Fitting Recommended Weight 850g Factory Pack Qty 1 Datasheet Datasheet Flange Datasheet
-
FTCK-5-120-PLAS-3000, Type K Class A Thermocouple, -20 to 480 Deg C Plastic Industry Style x 4.8mm Probe w/ 3000mm Screened Teflon/Braided SS cable, CE ANSI ROHS Approved
Fastron FTCK-5-120-PLAS-3000-B 4.8mm Type K Thermocouple Metal Sheath with Spring Bayonet Cap Quick Release Fitting for Plastic Industry Class A Accuracy Teflon SS Braided Cable Low Long Term Drift Rated for -20 to 480 Deg C Max Spring Cable Connection 20 x 4.8mm MIMS Specification Fastron Part Number FTCK-5-120-PLAS-3000 Sensor Type Type K Thermocouple No of Wires 2 Probe Length 20mm Sheath Thickness 4.8mm Sheath Material SS304 Stainless Steel Approvals CE, ANSI, ROHS Accuracy Class A Cable length 3 Meters Cable Type Teflon/Braided Stainless Steel with Spring Bayonet Cap Temperature Range -20 to 480 Deg C Special Feature Spring 2 Pin Bayonet Cap Mounting Style Quick Release Two pin Bayonet Fitting Weight 250g Factory Pack Qty 1 Datasheet Datasheet
$39.00
$46.02 inclGST -
F157FT-1PL 12A 240VAC, Relay, 1 x SPDT 12 Amp Form C, 250VAC/30VDC Load, 240VAC Coil, Socket or PCB Mount
Fastron F157FT-1PL 12A 240VAC Series SPDT 12 Amp Form C, Socket or PCB Mount AC/DC Relay, 240F157FT-1PL 12A 230VAC Coil Features 1 x SPDT 12 Amp @ 250VAC or 30VDC Socket or PCB Mount Changeover Contact Slim package UL Approved Compatible with Omron G2R-1-S Series CE Compliant to IEC 60664 IP20 Suits F157F-1Z-C3 socket Specification Fastron Part Number F157FT-1PL 12A 240VAC Switching Type 1 x SPDT 30VDC/250VAC C/O Form C Approvals UL, CE Coil Voltage 230VAC Load Current 1 x 12 Amp (rms) Special Feature LED Status Indicator Mounting Style PCB or Socket Mount Load Voltage Range 0-250VAC, 0-30VDC Isolation 2.5kV Termination Style PCB or Socket Mount Unit Weight 35g Factory Pack Qty 20  Datasheet Relay Datasheet Socket Replacement F157F-1Z-C3 Relay Replacement F157FT-1PL 12A 240VAC
$10.00
$11.80 inclGST -
F13FT-2PL 12A 24VDC Relay, DPDT 2 x 12 Amp Form C, 250VAC/30VDC Load, 240VAC Coil
Fastron Electronics F13FT-2PL 12A 24VDC Series Dual 12 Amp DPDT Form C AC/DC Relay, 240VAC Coil, PCB or Socket Mount Features 2 x 12 Amp @ 250VAC or 30VDC PCB or Socket Mount Changeover Contact Compatible with Omron G2R-2-S Series UL Approved CE Compliant to IEC 60664 IP20 Suits F13F-2Z-C4 Socket Specification Fastron Part Number F13FT-2PL 12A 24VDC Switching Type 2 x 30VDC or 250VAC C/O DPDT Form C Approvals UL,CE Control Voltage 24VDC Load Current 2 x 12 Amp (rms) Special Feature LED Status Indicator Load Voltage Range 0-250VAC, 0-30VDC Isolation 2.5kV Termination Style PCB or Socket Mount Unit Weight 38g Factory Pack Qty 20 Â Datasheet Relay Datasheet Replacement Socket F13F-2Z-C4
$10.00
$11.80 inclGST -
F18F-4Z-C5, Socket for Quad 14 Pin Relay F18F or RQ4 Series
Fastron F18F-4Z-C5, Socket for Quad 14 Pin Relay F18F or RQ4 Series, Form C Features Rated for 4 x 5 Amp @ 250VAC or 30VDC DIN Rail Mount Changeover Contact Terminals Compatible with Omron MY4IN Series UL Approved CE Compliant to IEC 60664 IP67 Suits F18FT Series Relays Specification Fastron Part Number F18F-4Z-C5 Switching Type 4 x 30VDC/250VAC C/O No of Pins 14 Approvals UL, CE Rated Control Voltage 24VDC Rated Load Current 4 x 5 Amp (rms) Mounting Style DIN Rail Mount Load Voltage Range 0-250VAC, 0-30VDC Unit Weight 38g Factory Pack Qty 20 Suitable Relays F18FT-4P-L/DC F18FT-4P-L/AC
$11.00
$12.98 inclGST -
F18FT-4PL-5A 240VAC, 14 Pin, Quad Output Relay, Form C 4 x 5 Amp, 250VAC/30VDC Load, 240VAC Coil
Fastron F18FT-4PL-5A 240VAC, 14 Pin, Quad Output Relay, Form C 4 x 5 Amp, 250VAC/30VDC Load, 240VAC Coil Features 4 x 5 Amp @ 250VAC or 30VDC PCB or Socket Mount Changeover Contact Compatible with Omron MY4IN Series UL Approved CE Compliant to IEC 60664 IP67 Suits F18F-4Z-C5 Socket Specification Fastron Part Number F18FT-4PL-5A 240VAC Switching Type 4 x 30VDC/250VAC C/O Form C No. of Pins 14 Approvals UL, CE Coil Voltage 24VDC Load Current 4 x 5 Amp (rms) Special Feature LED Status Indicator Mounting Style PCB or Socket Mount Load Voltage Range 0 - 250VAC, 0-30VDC Isolation 2.5kV Termination Style PCB or Socket Mount Unit Weight 38g Factory Pack Qty 20 Â Datasheet Relay Datasheet Replacement Socket F18F-4Z-C5
$10.00
$11.80 inclGST
