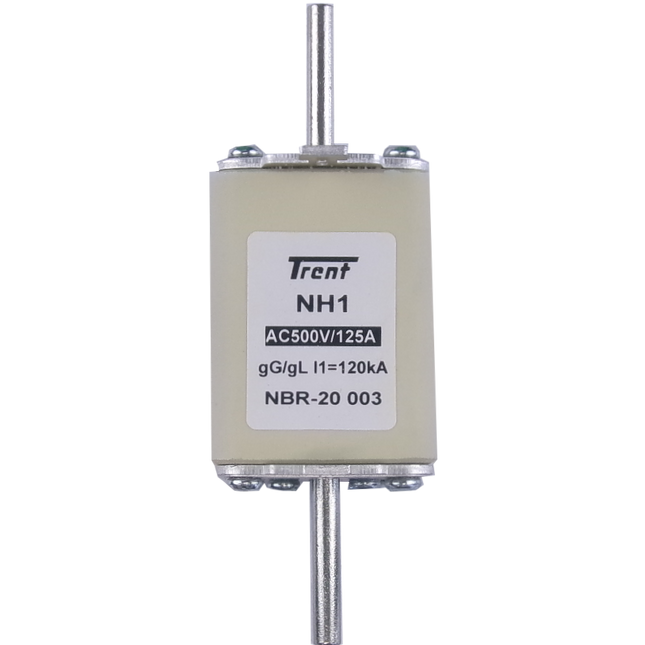

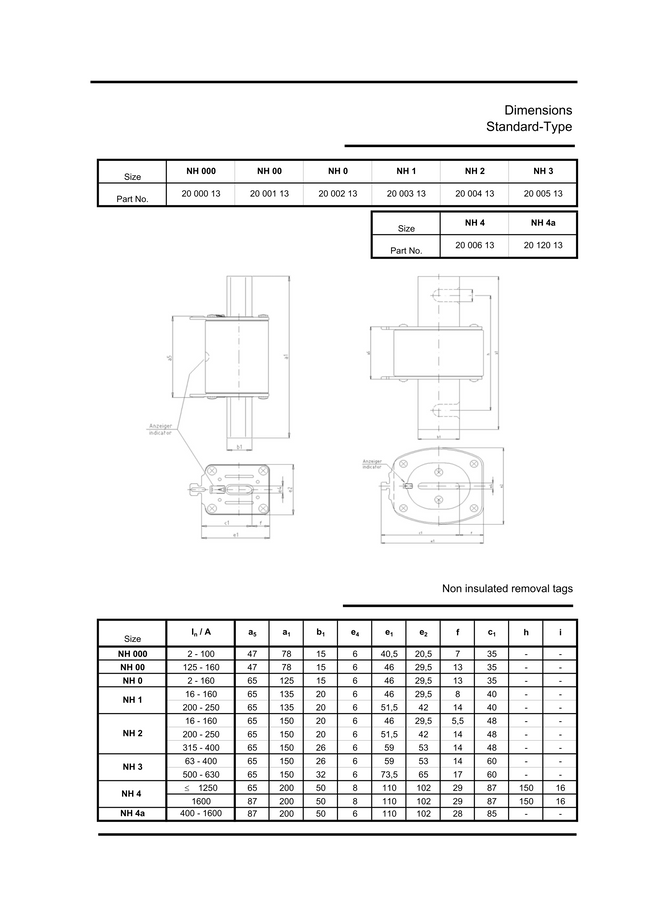

Trent NBR-20 003 13-160A-500V-120kA-NH1, Semiconductor Type gG/gL Fuse, 160 Amp, 120kA, 500VAC, NH1, 150 x 46 x 29.5mm Features Square Body Size NH1 Wide Range of I²t Ratings up to 2000 Amp Busbar or Fuse Holder Mounted IEC Standard 60269.1 AND 4 500 V Voltage Rating Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number NBR-20 003 13-160A-500V-120kA-NH1 Fuse Type I²t gG/gL Class Nominal Voltage 500VAC @ 50Hz Nominal Current (RMS + DC) 160 Amp Tested Breaking Capacity 120kA @ 690VAC Dimensions 150 x 75 x 65mm Hole Centers N/A Blade Style Mounting Fuse Holder Mounting Operating Temperature Range -40°C / 125°C Termination Blade Unit Weight 900g Factory Pack Qty 10   Datasheet Product Datasheet

Read more less

Trent 250EU-S-500V-120kA, 250EU-S-500V-120kA Series 500V Semiconductor I²t Fuse NH1 Style Features Square Body DIN 43 653 Wide Range of I²t Ratings up to 2000 Amp Fuse Holder Mounted IEC Standard 60269.1 AND 4 500 V Voltage Rating complying with IEC 33 Applications Protection of High Powered Semiconductors according to I²t Short Circuit Protection DC or AC Motor I²t Protection Battery Fuse Specification Trent Part Number 250EU-S-500V-120kA Fuse Type I²t AR Class HRC Nominal Voltage 500VAC @ 50Hz I²t Rating (660V) Nominal Current (RMS + DC) 250 Amp Tested Breaking Capacity 120kA @ 690VAC Dimensions 135 x 65 x 52mm (NH1) Indicator Tag Mounting Style Fuse Holder Operating Temperature Range -40°C / 125°C Watts Dissipation 90WW Termination Style NH1 Fuse Holder Unit Weight 400g Factory Pack Qty 3   Datasheet Product Datasheet
