Earth Leakage Relays, Core Balanced CT's, DC Earth Leakage Sensors

9 products

Filter

  • RCR-V30-230V, Earth Leakage Relay 30mA to 30 Amp Range, 115VAC/230VAC Aux Supply, Din Rail Mount, 1 x SPDT, 1 x SPNO Relay

    RCR-V30-230V, Earth Leakage Relay 30mA to 30 Amp Range, 115VAC/230VAC Aux Supply, Din Rail Mount, 1 x SPDT, 1 x SPNO Relay

    24 pcs in stock

    Hobut RCR-V30-230V, Earth Leakage Relay 30mA to 30 Amp Range, 115VAC/230VAC Aux Supply, Din Rail Mount, 1 x SPDT, 1 x SPNO Relay, Suitable Replacement to Schneider VigiPacT RH10M Features : Suitable for Core Balanced CT's CTB 35, CTB 50, CTB 70, CTB 120, CTB 160, CTB 210 Suitable Replacement to Schneider VigiPacT RH10M Applications : Earth Leakage Detection Specification Hobut Part Number RCR-V30-230V Supply Voltage 115VAC/230VAC @ 6VA Dimensions L:85mm x W:44mm xD:63.5mm Application Earth Leakage Detection Trip Setting Ranges 0.03,0.1,0.2,0.3,0.5,1,10,20,30 Amp Relay 1 x SPNO, 1 x SPDT Protection IP20 Approvals IEC 60755, 60947, 62020, 62543 Operating Temperature -20 to 55 Deg C Weight 200g Mounting Style Din Rail   Datasheet Product Datasheet User Manual Application Notes RCR-V30 Installation Guide

    Read more

    24 pcs in stock

    $319.00
    $376.42 inclGST

  • RCR-V30-60VDC, Earth Leakage Relay 30mA to 30 Amp Range 10-60VDC Supply, Din Rail Mount, 1 x SPDT ,1 x SPNO Relay, Suitable Replacement to Schneider VigiPacT RH10M

    RCR-V30-60VDC, Earth Leakage Relay 30mA to 30 Amp Range 10-60VDC Supply, Din Rail Mount, 1 x SPDT ,1 x SPNO Relay, Suitable Replacement to Schneider VigiPacT RH10M

    20 pcs in stock

    Fastron RCR-V30-60VDC, Earth Leakage Relay 30mA to 30 Amp Range 10-60VDC Supply, Din Rail Mount, 1 x SPDT ,1 x SPNO Relay, Suitable Replacement to Schneider VigiPacT RH10M Features : Suitable for Core Balanced CT's CTB 35, CTB 50, CTB 70, CTB 120, CTB 160, CTB 210 Suitable Replacement to Schneider VigiPacT RH10M Applications : AC Earth Leakage Detection Specification Hobut Part Number RCR-V30-60VDC Supply Voltage 10-60VDC @ 6VA Dimensions L:85mm x W:44mm xD:63.5mm Trip Setting Ranges 0.03,0.1,0.2,0.3,0.5,1,10,20,30 Amp Application Earth Leakage Detection Relay 1 x SPNO, 1 x SPDT Protection IP20 Approvals IEC 60755, 60947, 62020, 62543 Operating Temperature -20 to 55 Deg C Weight 200g Mounting Style Din Rail   Datasheet Product Datasheet User Manual Application Notes RCR-V30 Installation Guide

    Read more

    20 pcs in stock

    $319.00
    $376.42 inclGST

  • RCR-V30-400V, Earth Leakage Relay 30mA to 30 Amp Range, 400VAC Supply, Din Rail Mount, 1 x SPDT, 1 x SPNO Relay

    RCR-V30-400V, Earth Leakage Relay 30mA to 30 Amp Range, 400VAC Supply, Din Rail Mount, 1 x SPDT, 1 x SPNO Relay

    7 pcs in stock

    Hobut RCR-V30-400V, Earth Leakage Relay 30mA to 30 Amp Range, 400VAC Supply, Din Rail Mount, 1 x SPDT, 1 x SPNO Relay, Suitable Replacement to Schneider VigiPacT RH10M Features : Suitable for Core Balanced CT's CTB 35, CTB 50, CTB 70, CTB 120, CTB 160, CTB 210 Suitable Replacement to Schneider VigiPacT RH10M Applications : Earth Leakage Detection Specification Hobut Part Number RCR-V30-400V Supply Voltage 400VAC @ 6VA Dimensions L:85mm x W:44mm xD:63.5mm Application Earth Leakage Detection Trip Setting Ranges 0.03,0.1,0.2,0.3,0.5,1,10,20,30 Amp Relay 1 x SPNO, 1 x SPDT Protection IP20 Approvals IEC 60755, 60947, 62020, 62543 Operating Temperature -20 to 55 Deg C Weight 200g Mounting Style Din Rail   Datasheet Product Datasheet User Manual Application Notes RCR-V30 Installation Guide

    Read more

    7 pcs in stock

    $319.00
    $376.42 inclGST

  • ELR251-30A-230VAC, Earth Leakage Relay 30mA to 30A Continuously Variable Trip Setting Range, 230VAC Supply, Din Rail Mount, 1 x SPDT 10 Amp Relay

    ELR251-30A-230VAC, Earth Leakage Relay 30mA to 30A Continuously Variable Trip Setting Range, 230VAC Supply, Din Rail Mount, 1 x SPDT 10 Amp Relay

    Out of stock

    ELR251-30A-230VAC, Earth Leakage Relay 30mA to 30A Continuously Variable Trip Setting Range, 230VAC Supply, Din Rail Mount, 1 x SPDT 10 Amp Relay Features : Suitable for Core Balanced CT's CTB 35, CTB 50, CTB 70, CTB 120, CTB 160, CTB 210 Applications : Earth Leakage Detection Specification Northern Design Part Number ELR251-30A-230VAC Supply Voltage 230VAC @ 6VA Dimensions L:85mm x W:44mm xD:63.5mm Trip Setting Range 30mA - 30Amp (AC) Application Earth Leakage Detection Relay 1 x SPDT 10 Amp Protection IP20 Approvals IEC 60755, 60947, 62020, 62543 Operating Temperature -20 to 55 Deg C Weight 400g Mounting Style Din Rail   Datasheet Product Datasheet Application Notes RCR-V30 Installation Guide

    Read more

    Out of stock

    $352.00
    $415.36 inclGST

  • ELR251-50mA-1000mA-230VAC, Earth Leakage Relay 50mA to 1000mA Continuously Variable Trip Setting Range, 230VAC Supply, Din Rail Mount, 1 x SPDT 10 Amp Relay

    ELR251-50mA-1000mA-230VAC, Earth Leakage Relay 50mA to 1000mA Continuously Variable Trip Setting Range, 230VAC Supply, Din Rail Mount, 1 x SPDT 10 Amp Relay

    Out of stock

    ELR251-50mA-1000mA-230VAC, Earth Leakage Relay 50mA to 1000mA Continuously Variable Trip Setting Range, 230VAC Supply, Din Rail Mount, 1 x SPDT 10 Amp Relay Features : Suitable for Core Balanced CT's CTB 35, CTB 50, CTB 70, CTB 120, CTB 160, CTB 210 Applications : Earth Leakage Detection Specification Northern Design Part Number ELR251-50mA-1000mA-230VAC Supply Voltage 230VAC @ 6VA Dimensions L:85mm x W:44mm xD:63.5mm Trip Setting Range 50mA - 1000mA (AC) Application Earth Leakage Detection Relay 1 x SPDT 10 Amp Protection IP20 Approvals IEC 60755, 60947, 62020, 62543 Operating Temperature -20 to 55 Deg C Weight 400g Mounting Style Din Rail   Datasheet Product Datasheet Application Notes RCR-V30 Installation Guide

    Read more

    Out of stock

    $352.00
    $415.36 inclGST

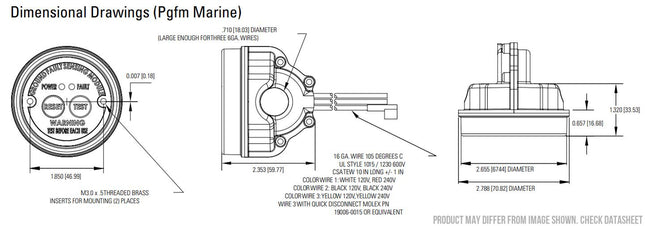

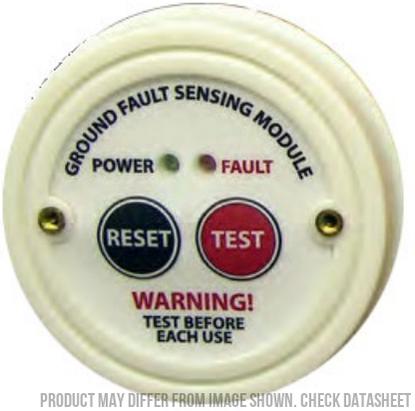

  • PGFM-211-B-A1-188, ELCI Marine Ground Fault Protection Relay for Single or Split Phase Systems, 27mA Detection, 50 Amp Max Ipn, 240VAC Supply, Panel Mount, Auto Reset, Note: Requires Suitable Air Pax Breaker PGFM-211-B-A1-188, ELCI Marine Ground Fault Protection Relay for Single or Split Phase Systems, 27mA Detection, 50 Amp Max Ipn, 240VAC Supply, Panel Mount, Auto Reset, Note: Requires Suitable Air Pax Breaker

    PGFM-211-B-A1-188, ELCI Marine Ground Fault Protection Relay for Single or Split Phase Systems, 27mA Detection, 50 Amp Max Ipn, 240VAC Supply, Panel Mount, Auto Reset, Note: Requires Suitable Air Pax Breaker

    Out of stock

    PGFM-211-B-A1-188, ELCI Marine Ground Fault Protection Relay for Single or Split Phase Systems, 27mA Detection, 50 Amp Max Ipn, 240VAC Supply, Panel Mount, Auto Reset, Note: Requires Suitable Air Pax Breaker Features : Suitable for Air Pax Breaker LEL Series Applications : On Board Vessel Earth Leakage Detection (Marine) Specification Sensata - Klixon Part Number PGFM-211-B-A1-188 Supply Voltage 240VAC Dimensions ⌀70.82mm x 59.77mm Application Earth Leakage Detection 27mA - 50 Amp Trip Level +/-27mA Nominal (Auto Reset) Relay Auto Reset, Requires Air Pax LEL Series Breaker Protection IP20 Approvals E-11 GFP - UL 943 Category FTTJ2 when used in tandem with Airpax LEL series Trip Time of Assembly 100mS or Less (60mS nominal) Sensing Coil Voltage Limit 600VAC max Operating Temnperature -35 to 66 Deg C Weight 200g Mounting Style Din Rail Datasheet Product Datasheet

    Read more

    Out of stock

    $594.50
    $701.51 inclGST

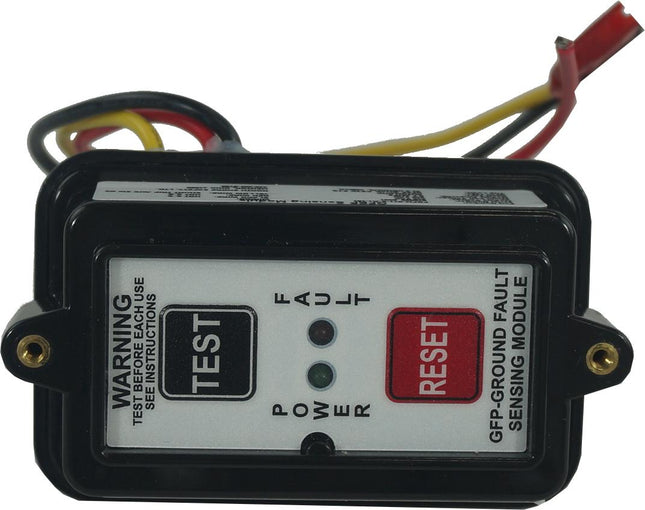

  • Last stock! PGFM-211-B-A1-187, GFCI Lineguard Ground Fault Protection Relay for Single or Split Phase Systems, 30mA Detection, 50 Amp Max Ipn, 240VAC Supply, Panel Mount, Auto Reset, Note: Requires Suitable Air Pax Breaker PGFM-211-B-A1-187, GFCI Lineguard Ground Fault Protection Relay for Single or Split Phase Systems, 30mA Detection, 50 Amp Max Ipn, 240VAC Supply, Panel Mount, Auto Reset, Note: Requires Suitable Air Pax Breaker

    PGFM-211-B-A1-187, GFCI Lineguard Ground Fault Protection Relay for Single or Split Phase Systems, 30mA Detection, 50 Amp Max Ipn, 240VAC Supply, Panel Mount, Auto Reset, Note: Requires Suitable Air Pax Breaker

    1 pcs in stock

    PGFM-211-B-A1-187, GFCI Lineguard Ground Fault Protection Relay for Single or Split Phase Systems, 30mA Detection, 50 Amp Max Ipn, 240VAC Supply, Panel Mount, Auto Reset, Note: Requires Suitable Air Pax Breaker Features : Suitable for Air Pax Breaker LEL Series Applications : On Board Vessel Earth Leakage Detection (Marine) Specification Sensata - Klixon Part Number PGFM-211-B-A1-187 Supply Voltage 240VAC Dimensions 55.4mm x 93.2mm x 83.3mm Application Earth Leakage Detection 30mA ( 50 Amp Max Ipn) Trip Level +/-30mA Nominal (Fixed) (Auto Reset) Relay Auto Reset, Requires Air Pax LEL Series Breaker Protection IP20 Approvals E-11 GFP - UL 943 Category FTTJ2 when used in tandem with Airpax LEL series Trip Time of Assembly 100mS or Less (60mS nominal) Sensing Coil Voltage Limit 600VAC max Aperture 16mm?? Operating Temnperature -35 to 66 Deg C Weight 200g Mounting Style Din Rail Datasheet Product Datasheet

    Read more

    1 pcs in stock

    $594.50
    $701.51 inclGST

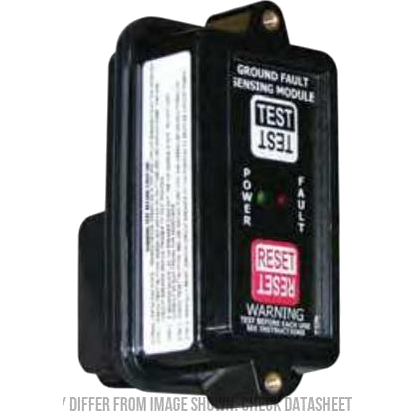

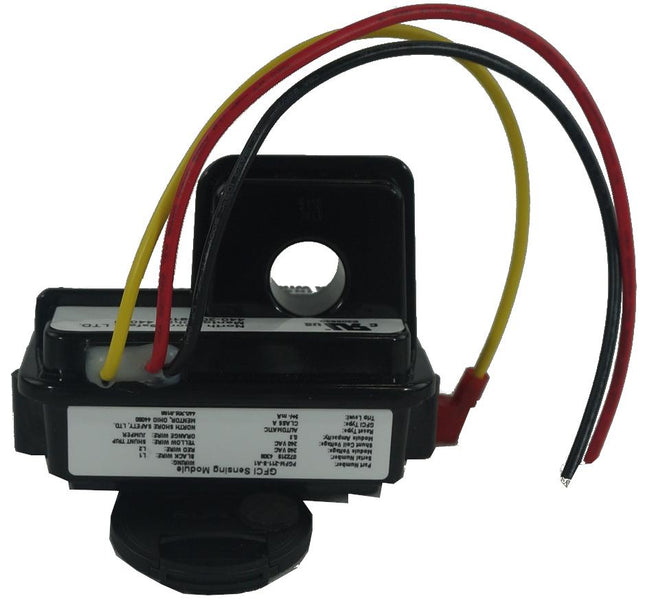

  • Last stock! PGFM-211-B-A1, GFCI Lineguard Ground Fault Protection Relay for Single or Split Phase Systems, 5mA Detection, 50 Amp Max Ipn, 240VAC Supply, Panel Mount, Auto Reset, Note: Requires Suitable Air Pax Breaker PGFM-211-B-A1, GFCI Lineguard Ground Fault Protection Relay for Single or Split Phase Systems, 5mA Detection, 50 Amp Max Ipn, 240VAC Supply, Panel Mount, Auto Reset, Note: Requires Suitable Air Pax Breaker

    PGFM-211-B-A1, GFCI Lineguard Ground Fault Protection Relay for Single or Split Phase Systems, 5mA Detection, 50 Amp Max Ipn, 240VAC Supply, Panel Mount, Auto Reset, Note: Requires Suitable Air Pax Breaker

    1 pcs in stock

    PGFM-211-B-A1, GFCI Lineguard Ground Fault Protection Relay for Single or Split Phase Systems, 5mA Detection, 50 Amp Max Ipn, 240VAC Supply, Panel Mount, Auto Reset, Note: Requires Suitable Air Pax Breaker Features : Suitable for Air Pax Breaker LEL Series Applications : On Board Vessel Earth Leakage Detection (Marine) Specification Sensata - Klixon Part Number PGFM-211-B-A1 Supply Voltage 240VAC Dimensions 55.4mm x 93.2mm x 83.3mm Application Earth Leakage Detection 5mA - 50 Amp Trip Level +/-5mA Nominal (Auto Reset) Relay Auto Reset, Requires Air Pax LEL Series Breaker Protection IP20 Approvals E-11 GFP - UL 943 Category FTTJ2 when used in tandem with Airpax LEL series Trip Time of Assembly 100mS or Less (60mS nominal) Sensing Coil Voltage Limit 600VAC max Operating Temnperature -35 to 66 Deg C Weight 200g Mounting Style Din Rail Datasheet Product Datasheet

    Read more

    1 pcs in stock

    $594.50
    $701.51 inclGST

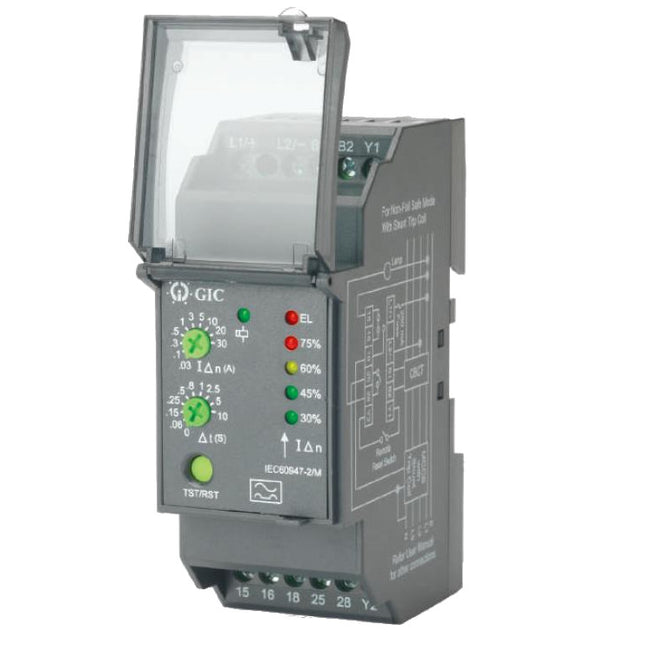

  • 17G715GF2, Earth Leakage Relay 30mA to 30 Amp Range, 100-240VAC Supply, Din Rail Mount, 1 x SPDT, 1 x SPNO Relay

    View options

    17G715GF2, Earth Leakage Relay 30mA to 30 Amp Range, 100-240VAC Supply, Din Rail Mount, 1 x SPDT, 1 x SPNO Relay

    Out of stock

    GIC Controls 17G715GF2, Earth Leakage Relay 30mA to 30 Amp Range, 100-240VAC Supply, Din Rail Mount, 1 x SPDT, 1 x SPNO Relay Features : Suitable for Core Balanced CT's CTB 35, CTB 50, CTB 70, CTB 120, CTB 160, CTB 210 Applications : Earth Leakage Detection Specification Hobut Part Number 17G715GF2 Supply Voltage 100-240VAC @ 6VA Dimensions L:90mm x W:36mm xD:65mm Application Earth Leakage Detection Relay 1 x SPNO, 1 x SPDT Protection IP20 Approvals IEC 60755, 60947, 62020, 62543 Operating Temnperature -20 to 55 Deg C Weight 200g Mounting Style Din Rail   Datasheet Product Datasheet

    Read more

    Out of stock

    $149.00
    $175.82 inclGST
