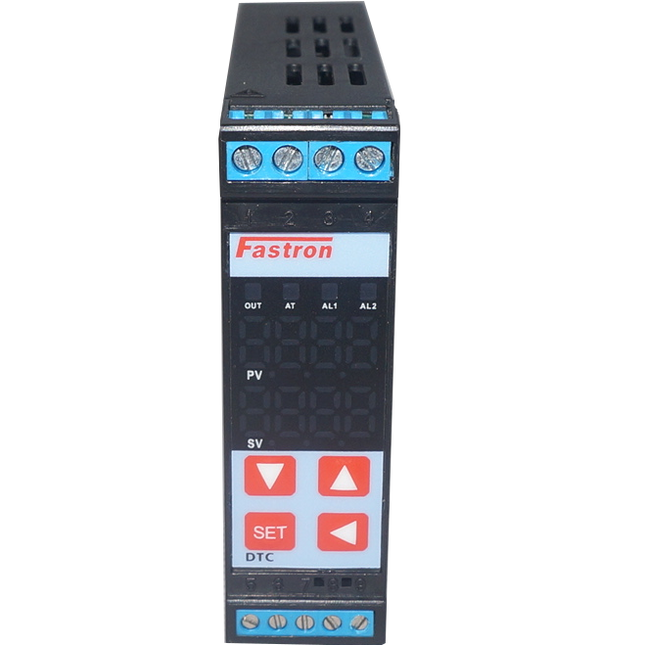

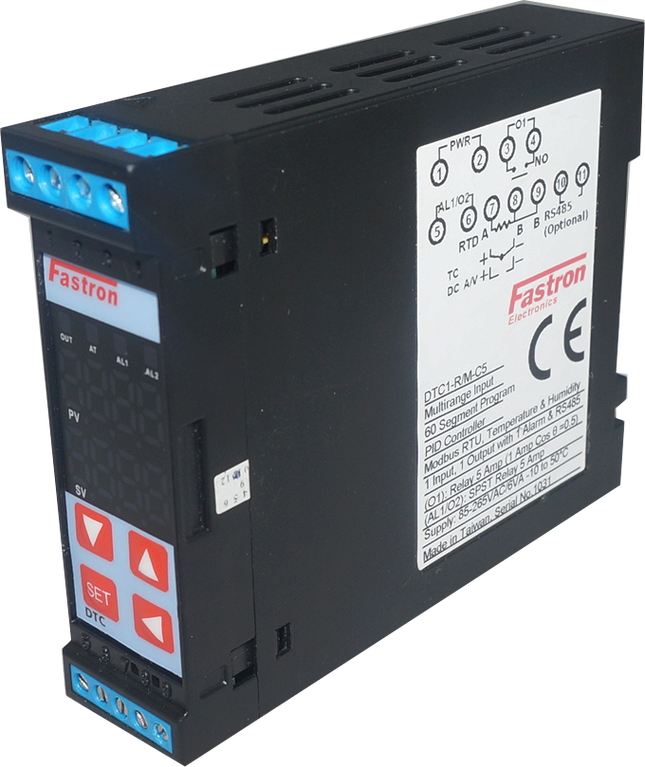

Fastron DTC1-A/M, DIN Rail Mount Temperature/Humidity Controller, Multirange Input, 85-265VAC, 4-20mA output Optional converter function 2 Input 1 Output, and 1 Input Two Output Versions available Optional 60 Segment Multi Pattern Program Control feature 4-digit display. Suit most industries including Temperature, Humidity, Pressure (0.5s response) CE Approved Each unit needs just 22.5mm width Din Rail space EC Compliant (Details) Various specials available for unique applications. Specification Fastron Part Number DTC1-A/M Control Output 4-20mA Input Multirange K/J/R/S/B/E/T/Linear Voltage Current(Optional)/N/W1/W2/Pt100 Alarm Relay 3A(Resistive), 1A(Inductive load cos ??=0.4), 240VAC/30VDC Options None Mounting Style 22.5 x 75mm Din Rail Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 230g Factory Pack Qty 1 CE Yes ?? Selection Chart PWM Control Wiring Datasheet DTC1 Brochure DTC1User Manual DTC1 User Manual Comms versions Alarm Table DTC1 (Program Control Version) User Manual

Read more less

Fastron DTC1-R/M, DIN Rail Mount Temperature/Humidity Controller, Multirange Input, 85-265VAC, Relay output Optional converter function 2 Input 1 Output, and 1 Input Two Output Versions available Optional 60 Segment Multi Pattern Program Control feature 4-digit display. Suit most industries including Temperature, Humidity, Pressure (0.5s response) CE Approved Each unit needs just 22.5mm width Din Rail space EC Compliant (Details) Various specials available for unique applications. Specification Fastron Part Number DTC1-R/M Control Output Relay 3A(Resistive), 1A(Inductive load cos ??=0.4), 240VAC/30VDC Input Multirange K/J/R/S/B/E/T/Linear Voltage Current(Optional)/N/W1/W2/Pt100 Alarm Relay 3A(Resistive), 1A(Inductive load cos ??=0.4), 240VAC/30VDC Options None Mounting Style 22.5 x 75mm Din Rail Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 230g Factory Pack Qty 1 CE Yes ?? Selection Chart PWM Control Wiring Datasheet DTC1 Brochure DTC1User Manual DTC1 User Manual Comms versions Alarm Table DTC1 (Program Control Version) User Manual

Read more less

Blind Temperature Controller 100-240VAC, 4-20mA Output Download Manual Delivery in 3-4 weeks if not in stock

Read more less

Shinko DCL33AR/M1-C5 Series Digital Indicating Controllers Converter function a standard feature 4-digit display. Suit most industries including Temperature, Humidity, Pressure (0.5s response) Tropicalised Version Available UL/CSA Approved Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 22.5mm width Din Rail space EC Compliant (Details) Specification Shinko Part Number DCL33AR/M1-C5 Control Output Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Input Multirange (refer to datasheet) Alarm Open Collector 100mA @ 24VDC Option RS485 Comms Mounting Style 22.5 x 75mm Din Rail Mount Supply Voltage 24VAC/DC Termination Style Screw Weight 230g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes Datasheet DCL33A Brochure DCL33A User Manual DCL33A C5 Comms Manual

Read more less

Blind Temp Controller 100-240VAC, Relay output, w/ 3 Phase 20Amp heater burnout Download Manual Delivery in 3-4 weeks if not in stock

Read more less

Blind Temp Controller 100-240VAC, Relay output, w/ single phase 20Amp heater burnout Alarm Download Manual Delivery in 3-4 weeks if not in stock

Read more less

Blind Temperature Controller 100-240VAC, Relay Output, w/Heating/Cooling open collector output Download Manual Delivery in 3-4 weeks if not in stock

Read more less

Blind Temperature Controller 100-240VAC, Relay Output Download Manual Delivery in 3-4 weeks if not in stock

Read more less

Shinko WCL13A-AA/MM Series Dual Loop Digital Indicating Controllers Differential control, Tank level control, converter function are standard features 5-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) 9-step pattern (for SV and time) is a standard feature UL/CSA Approved • Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 60 mm depth panel space EC Compliant (Details) Note the WCL13A Series Requires Open Ring Lug ask-002-1 or Touch Proof ask-001-1 Terminal base to function. Specification Shinko Part Number WCL13A-AA/MM Control Output 1 4 - 20mA Control Output 2 4 - 20mA Input Multirange (refer to datasheet) Option None Mounting Style Din Rail Mount Supply Voltage 100 - 240VAC Termination Style Screw Weight 180g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes Datasheet WCL Series Brochure WCL 2014 Additions Brochure WCL Series User Manual Delivery 2-3 weeks delivery if not in stock

Read more less

Shinko DCL33AA/M C5 SP05 Temp Controller, Din Rail, 240VAC, Relay output, Relay Alarm Converter function a standard feature 4-digit display. Suit most industries including Temperature, Humidity, Pressure (0.5s response) Tropicalised Version Available UL/CSA Approved Input signals can be converted to insulated 4 to 20 mA DC output (0.25s Response) Each unit needs just 22.5mm width Din Rail space EC Compliant (Details) Specification Shinko Part Number DCL33AA/M-C5-SP05 Control Output 4-20mA Output Input Multirange (refer to datasheet) Alarm Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Option RS485 Comms Mounting Style 22.5 x 75mm Din Rail Mount Supply Voltage 100 - 240VAC Termination Style Screw Weight 230g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes Datasheet DCL33A Brochure DCL33A User Manual DCL33A C5 Comms Manual

Read more less
