Din Rail Mount Solid State Relays

Crydom HS259DR + PMP6050WP, DIN Mount, Proportional Controller, 480-600VAC 25 Amp @ 40 Deg C, Selection for Burst/Phase Angle, 4-20mA, 0-10V, 0-5V Input, Din Rail Mount, with Overvoltage Protection Selectable Proportional Phase or Burst Control Input Ratings from 25A to 90 Amp @ 90-600 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Specification Crydom Part Number HS259DR + PMP6050WP Switching Type Phase Angle or Burst (Selectable) ROHS/CE/UL Yes Control Voltage 0 - 10V/0 - 5V/4 - 20mA Proportional Input (Selectable) Note Requires DC Power Supply for 0-5V/0-10V input modes Load Current 25 Amp (rms) Surge Capability 597 Amp (peak) Special Feature Proportional Controller + SSR + Overvoltage Protection Mounting Style Panel Mount Load Voltage Range 420-600VAC Dielectric Strength 4kV Termination Style Terminal Plug Unit Weight 0.4kg Factory Pack Qty 20   Datasheet PMP24 Series Datasheet PMP24 Installation/Wiring Guide GFIN Equivalent Parts Contact Us for Possible Replacement

Read more less

HS151DR-PMP6050WP, DIN Mount, Proportional Controller, 480-600VAC 40 Amp @ 40 Deg C, Selection for Burst/Phase Angle, 4-20mA, 0-10V, 0-5V Input, Din Rail Mount, with Overvoltage Protection Selectable Proportional Phase or Burst Control Input Ratings from 25A to 90 Amp @ 170-600 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Specification Crydom Part Number HS151DR-PMP6050WP Switching Type Phase Angle or Burst (Selectable) ROHS/CE/UL Yes Control Voltage 0 - 10V/0 - 5V/4 - 20mA Proportional Input (Selectable) Note Requires DC Power Supply for 0-5V/0-10V input modes Load Current 40 Amp (rms) @ 40 Deg C Surge Capability 597 Amp (peak) Special Feature Proportional Controller + SSR + Overvvoltage Protection Mounting Style Panel Mount Load Voltage Range 420-600VAC Dielectric Strength 4kV Termination Style Terminal Plug Unit Weight 1000g Factory Pack Qty 20   Datasheet PMP24 Series Datasheet PMP24 Installation/Wiring Guide HS151DR Datasheet Equivalent Parts Contact Us for Possible Replacement

Read more less

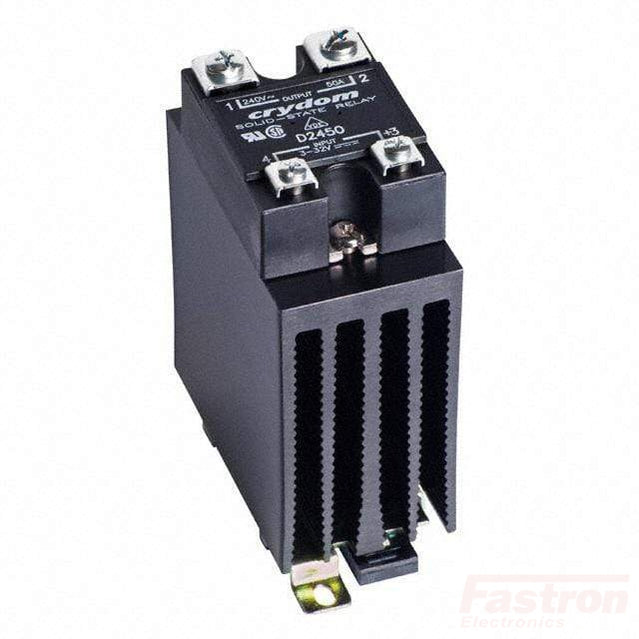

Crydom HS201DR + D1D80, Din Rail Mount DC Solid State Relay, with Heatsink 3-32VDC control, 45A @ 40 Deg C, 100VDC Load Features Ratings from 7A to 100 Amp @ 1-500VDC Mosfet output for equal load sharing Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec Part Number HS201DR + D1D80 Switching Type DC Switching ROHS/CE/UL Yes Control Voltage 3.5 - 32VDC Load Current 50 Amp DC @ 40 Deg C Surge Capability 220 Amp DC Special Feature LED Status Indicator Mounting Style Panel Mount Reccomended Load Voltage 1-72 VDC Max Load Voltage 100 VDC Termination Style Screw Terminals Dimensions L:97mm x W:45mm x D:142.8mm Unit Weight 415g Factory Pack Qty 10   Datasheet D1D80 HS201DR Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

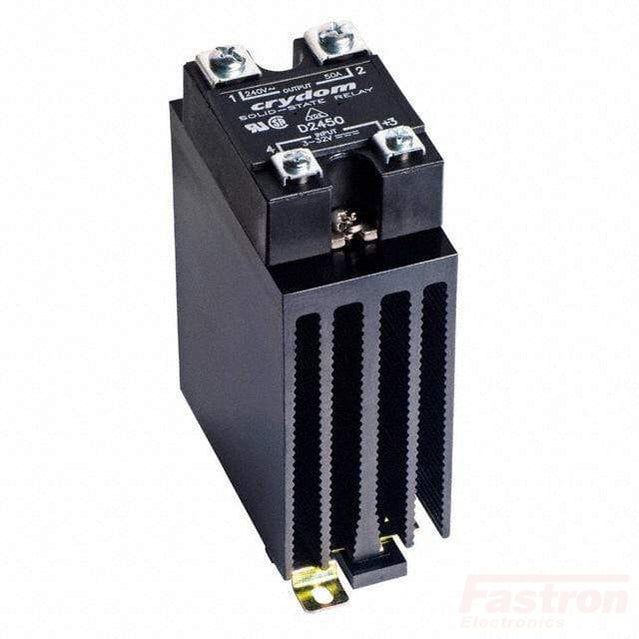

Crydom HS151DR-D1D80, Din Rail Mount DC Solid State Relay, with Heatsink 3-32VDC control, 58A @ 40 Deg C, 100VDC Load Features Ratings from 7A to 100 Amp @ 1-500VDC Mosfet output for equal load sharing Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec Part Number HS151DR + D1D80 Switching Type DC Switching ROHS/CE/UL Yes Control Voltage 3.5 - 32VDC Load Current 58 Amp DC @ 40 Deg C Surge Capability 220 Amp DC Special Feature LED Status Indicator Mounting Style Panel Mount Reccomended Load Voltage 1-72 VDC Max Load Voltage 100 VDC Termination Style Screw Terminals Dimensions L:97mm x W:45mm x D:142.8mm Unit Weight 450g Factory Pack Qty 10   Datasheet D1D80 HS151DR Datasheet Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Fastron HS212F & FCR-400-40R, Three Phase, Phase Angle Controller, 4-20mA,0-10V,500K POT Input, 400VAC, 36 Amp @ 40 Deg C, Din Rail Mount 4-20mA, 0-10V or 500K POT Proportional Phase Control Input Ratings from 25A to 120 Amp @ 180-280 VAC SCR output for heavy industrial loads Instantaneous turn-on output Direct bond copper substrate Direct power lead frame Epoxy free design Specification Trent part Number HS212F & FCR-400-40R Switching Type Phase Angle (Random Crossing) Control Voltage 4-20mA,0-10V,500K POT Proportional Input Load Current 36 Amp (rms) per phase @ 40 Deg C Surge Capability 500Amp (peak) Special Feature Three Phase Proportional Controller Mounting Style DIN Rail Mount Load Voltage Range 350-400VAC +15% (460VAC Max) Max Non Repetitive Peak Voltage 600 Vp Termination Style Barrier Strip Screw Dimensions 100 x 135 x 130mm Unit Weight 1500g Factory Pack Qty 20   Datasheet FCR Series Voltage Regulators HS212 Datasheet

Read more less

Fastron HS212DR & FCR-400-40R, Three Phase, Phase Angle Controller, 4-20mA,0-10V,500K POT Input, 400VAC, 20 Amp @ 40 Deg C, Din Rail Mount 4-20mA, 0-10V or 500K POT Proportional Phase Control Input Ratings from 25A to 120 Amp @ 180-280 VAC SCR output for heavy industrial loads Instantaneous turn-on output Direct bond copper substrate Direct power lead frame Epoxy free design Specification Trent part Number HS212DR & FCR-400-40R Switching Type Phase Angle (Random Crossing) Control Voltage 4-20mA,0-10V,500K POT Proportional Input Load Current 36 Amp (rms) per phase @ 40 Deg C Surge Capability 500Amp (peak) Special Feature Three Phase Proportional Controller Mounting Style DIN Rail Mount Load Voltage Range 350-400VAC +15% (460VAC Max) Max Non Repetitive Peak Voltage 600 Vp Termination Style Barrier Strip Screw Dimensions 100 x 135 x 130mm Unit Weight 1500g Factory Pack Qty 20   Datasheet FCR Series Voltage Regulators HS212 Datasheet

Read more less

Fastron HS212DR-F & FCR-400-40R-5, Three Phase, Phase Angle Controller, 4-20mA,0-5V,500K POT Input, 400VAC, 20 Amp @ 40 Deg C, Din Rail Mount 4-20mA,0-10V, 0-5V or 500K POT Proportional Phase Control Input Ratings from 25A to 120 Amp @ 180-280 VAC SCR output for heavy industrial loads Instantaneous turn-on output Direct bond copper substrate Direct power lead frame Epoxy free design Specification Trent part Number HS212DR-F & FCR-400-40R-5 Switching Type Phase Angle (Random Crossing)/ Burst Fire (10 cycles) Control Voltage 4-20mA,0-5V,500K POT Proportional Input Load Current 36 Amp (rms) per phase @ 40 Deg C Surge Capability 690Amp (peak) Special Feature Three Phase Proportional Controller Mounting Style DIN Rail Mount Load Voltage Range 350-400VAC +15% (460VAC Max) Max Non Repetitive Peak Voltage 600 Vp Termination Style Barrier Strip Screw Dimensions 100 x 135 x 130mm Unit Weight 1500g Factory Pack Qty 20   Datasheet FCR Series Voltage Regulators HS212 Datasheet

Read more less

Fastron HS212DR-F & FCR-400-40R, Three Phase, Phase Angle Controller, 4-20mA,0-10V,500K POT Input, 400VAC, 36 Amp @ 40 Deg C, Din Rail Mount 4-20mA, 0-10V or 500K POT Proportional Phase Control Input Ratings from 25A to 120 Amp @ 180-280 VAC SCR output for heavy industrial loads Instantaneous turn-on output Direct bond copper substrate Direct power lead frame Epoxy free design Specification Trent part Number HS212DR-F & FCR-400-40R Switching Type Phase Angle (Random Crossing) Control Voltage 4-20mA,0-10V,500K POT Proportional Input Load Current 36 Amp (rms) per phase @ 40 Deg C Surge Capability 500Amp (peak) Special Feature Three Phase Proportional Controller Mounting Style DIN Rail Mount Load Voltage Range 350-400VAC +15% (460VAC Max) Max Non Repetitive Peak Voltage 600 Vp Termination Style Barrier Strip Screw Dimensions 100 x 135 x 130mm Unit Weight 1500g Factory Pack Qty 20   Datasheet FCR Series Voltage Regulators HS212 Datasheet

Read more less
