Din Rail Mount Line Filters for EMI/EMC/RFI Compliance
-

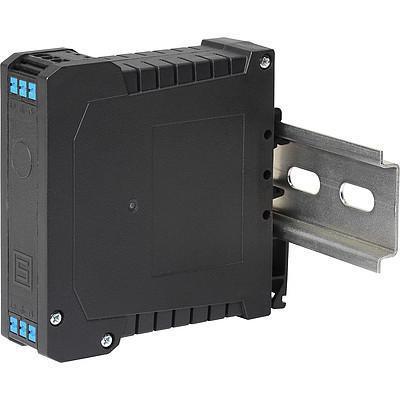

3-103-678, Din Rail Mount 2 Stage EMC (RFI) Line Filter, 16Amp, 250VAC, Very High Broadband Attenuation
Schurter 3-103-678, Din Rail Mount 2 Stage EMC (RFI) Line Filter, 16Amp, 250VAC, Very High Features Line filter in standard and medical version 1-stage - standard attenuation Characteristics Designed for standard applications Protection against interference voltage from the mains Possible interferences generated in the equipment are strongly attenuated Universal line filter for standard applications Suitable for use in equipment according to IEC/UL 60950 Other Versions on Request Version with wire connection Version with varistor for overvoltage protection Specification Schurter Part Number 3-103-678 Rated Voltage 250V Rated Current 16A Filter Stages 1 Stage Operating Temperature -40°C to 100°C Filter Type Very High Broadband Attenuation Leakage Current 0.5mA Mounting DIn Rail Mount Mount - Case RI Material Metal Termination Style Screw Weight 140g Factory Pack Qty 10 Protection Class Suitable for appliances with protection class I acc. to IEC 61140 Isolation 1.7kV L-N VDE/UL/CSA/ROHS Yes  Datasheet Product Datasheet
$60.30
$71.15 inclGST -
3-103-712, Din Rail Mount 2 Stage EMC (RFI) Line Filter, 12Amp, 250VAC, Very High Broadband Attenuation
Schurter 3-103-712, Din Rail Mount 2 Stage EMC (RFI) Line Filter, 12Amp, 250VAC, Very High Broadband Attenuation Features Line filter in standard and medical version 1-stage - standard attenuation Characteristics Designed for standard applications Protection against interference voltage from the mains Possible interferences generated in the equipment are strongly attenuated Universal line filter for standard applications Suitable for use in equipment according to IEC/UL 60950 Other Versions on Request Version with wire connection Version with varistor for overvoltage protection Specification Schurter Part Number 3-103-712 Rated Voltage 250V Rated Current 12A Filter Stages 1 Stage Operating Temperature -40°C to 100°C Filter Type Very High Broadband Attenuation Leakage Current 0.5mA Mounting DIn Rail Mount Mount - Case RI Material Metal Termination Style Screw Weight 140g Factory Pack Qty 10 Protection Class Suitable for appliances with protection class I acc. to IEC 61140 Isolation 1.7kV L-N VDE/UL/CSA/ROHS Yes  Datasheet Product Datasheet
$67.00
$79.06 inclGST -
3-103-675, Din Rail Mount 2 Stage EMC (RFI) Line Filter, 6Amp, 250VAC, Very High Broadband Attenuation
Schurter 3-103-675, Din Rail Mount 2 Stage EMC (RFI) Line Filter, 6Amp, 250VAC, Very High Broadband Attenuation Features Line filter in standard and medical version 1-stage - standard attenuation Characteristics Designed for standard applications Protection against interference voltage from the mains Possible interferences generated in the equipment are strongly attenuated Universal line filter for standard applications Suitable for use in equipment according to IEC/UL 60950 Other Versions on Request Version with wire connection Version with varistor for overvoltage protection Specification Schurter Part Number 3-103-675 Rated Voltage 250V Rated Current 6A Filter Stages 1 Stage Operating Temperature -40°C to 100°C Filter Type Very High Broadband Attenuation Leakage Current 0.5mA Mounting DIn Rail Mount Mount - Case RI Material Metal Termination Style Screw Weight 140g Factory Pack Qty 10 Protection Class Suitable for appliances with protection class I acc. to IEC 61140 Isolation 1.7kV L-N VDE/UL/CSA/ROHS Yes  Datasheet Product Datasheet
$60.30
$71.15 inclGST
