Fastron Electronics AMB-M-A9-A-N, 96 x 48mm AC Ammeter, True RMS, 0-10 Amp Input, 110-240VAC Aux supply, Large 4.1 Digit Adjustable Zero and Span Setting Adjustable Display Scaling Large 4.1 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Each unit needs just 96 x 48mm Panel Space 90mm Depth CE Approved Specification Fastron Electronics Part Number AMB-M-A9-A-N Conditioner Output N/A Input 0-10 Amp AC True RMS Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 110 - 240VAC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Display Type 4.1 Digit RED LED Mounting Style 96 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet NEW Version Application Notes Panel Meters Blog Articles

Read more less

Fastron Electronics AM5H-A-D-V5-A-R4AN, 96x48mm DC Ammeter DC Voltmeter 0-50mVDC with 4-20mA output, 4 x Relays, 100-240VAC/DC supply, 5 Digit Adjustable Zero and Span Setting Adjustable Display Scaling Large 5 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 96 x 48mm Panel Space 90mm Depth Specification Fastron Electronics Part Number AM5H-A-D-V5-A-R4AN Conditioner Output 4-20mA Alarms 4 x Hi/Low, 7 Amp @ 277VAC Input 0 - 36VDC Over Range x 1.5 Operating Temperature 0 - 60°C Load Voltage 100-240VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Display Type 5 Digit RED LED Termination Style Screw Mounting Style 96 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet User Manual Application Notes Panel Meters Blog Articles

Read more less

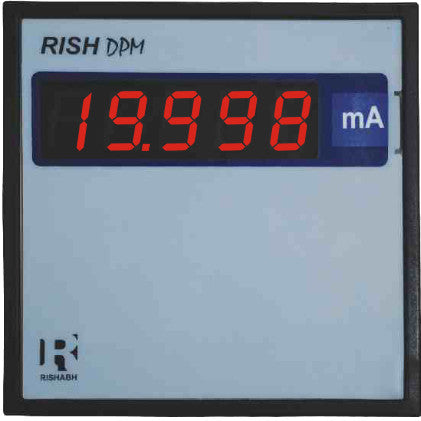

Rishabh Instruments Rish DPM 96x96 A DC-420-24, 96x96mm DC Ammeter, Panel Mount, 4-20mADC Input, 24VDC Aux Supply, 4.1 Digit 0-19999 range Default display is mA, for other dsiplay parameter please advsie  Features Adjustable Zero and Span Setting Adjustable Display Scaling Large 4.1 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Each unit needs just 96 x 96mm Panel Space 55mm Depth CE Approved Specification Rishabh Part Number Rish DPM 96x96 A DC-420-24 Conditioner Output N/A Input 4-20mA Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 24VDC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Display Type 4.1 Digit RED LED Mounting Style 96 x 96mm (xD55mm)Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Panel Meters Blog Articles

Read more less

Fastron Electronics AMB-DVO(+/-200mV)D-N, 96x48mm DC Ammeter DC Voltmeter +/-200mV DC Input, 24-60VDC supply, Large 4.1 Digit Adjustable Zero and Span Setting Adjustable Display Scaling Large 4.1 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Each unit needs just 96 x 48mm Panel Space 90mm Depth CE Approved Specification Fastron Electronics Part Number AMB-DVO(+-200mV)D-N Conditioner Output N/A Input +/- 200mVDC Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 24-60VDC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Display Type 4.1 Digit RED LED Mounting Style 96 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Panel Meters Blog Articles

Read more less

Fastron Electronics AM5H-A-D-VO(0-100mV)-D-NAN, 96x48mm DC Voltmeter DC Ammeter 0-100mVDC with 4-20mA output, 22-60VAC/DC supply, Digital Panel Meter & Transmitter, 5 Digit Adjustable Zero and Span Setting Adjustable Display Scaling Large 5 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 96 x 48mm Panel Space 90mm Depth Specification Fastron Electronics Part Number AM5H-A-D-VO(0-100mV)-D-NAN Conditioner Output 4-20mA Input 0 - 100mVDC Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 22-60VAC/DC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Display Type 5 Digit RED LED Termination Style Screw Mounting Style 96 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet User Manual Application Notes Panel Meters Blog Articles

Read more less

Fastron Electronics AMB-D-A6-A-N, DC Ammeter DC Voltmeter, 4-20mA Input, 110-240VAC Supply, Large 4.1 Digit Adjustable Zero and Span Setting Adjustable Display Scaling Large 4.1 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Each unit needs just 96 x 48mm Panel Space 90mm Depth CE Approved Specification Fastron Electronics Part Number AMB-D-A6-A-N Conditioner Output N/A Input 4 - 20mA Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 110 - 240VAC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Display Type 4.1 Digit RED LED Mounting Style 96 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Panel Meters Blog Articles

Read more less

Fastron Electronics AM5A-A-DV1-C D DC Ammeter DC Voltmeter & Transmitter Adjustable Zero and Span Setting Adjustable Display Scaling Large 5 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 96 x 48mm Panel Space 90mm Depth Specification Fastron Electronics Part Number AM5A-A-DV1-C Alarm Output 1 x High or Low C/O Relay Alarm with Reset Input 0 - 50mVDC Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 22-60VDC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style 96 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet User Manual Application Notes Panel Meters Blog Articles

Read more less

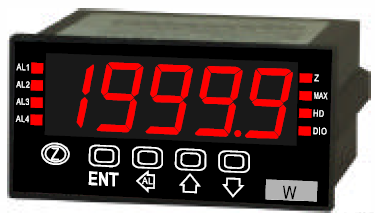

Fastron Electronics AM5A-A-DV1-A DC Ammeter DC Voltmeter  & Transmitter Adjustable Zero and Span Setting Adjustable Display Scaling Large 5 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type) Each unit needs just 96 x 48mm Panel Space 90mm Depth Specification Fastron Electronics Part Number AM5A-A-DV1-A Alarm Output 1 x High or Low C/O Relay Alarm with Reset Input 0 - 50mVDC Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 110- 240VAC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Mounting Style 96 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet User Manual Application Notes Panel Meters Blog Articles

Read more less

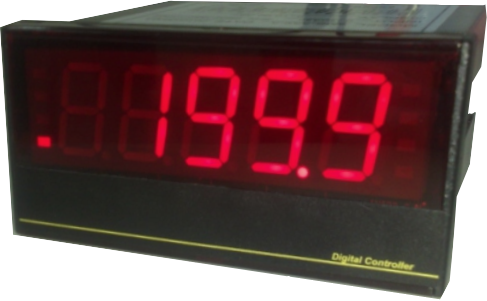

Fastron Electronics AMB-D-A6-D-N, 96x48mm DC Ammeter, 4-20mA AC Input, 24-60VDC supply, Large 4.1 Digit Adjustable Zero and Span Setting Adjustable Display Scaling Large 4.1 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Each unit needs just 96 x 48mm Panel Space 90mm Depth CE Approved Specification Fastron Electronics Part Number AMB-D-A6-D-N Conditioner Output N/A Input 4-20mA Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 22-60VDC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Display Type 4.1 Digit RED LED Mounting Style 96 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Panel Meters Blog Articles

Read more less

Fastron Electronics AMB-DVO(+/-199mV)A-N, 96x48mm DC Voltmeter, DC Ammeter Bipolar +/-199.9mV Input, 240VAC supply, Large 4.1 Digit Adjustable Zero and Span Setting Adjustable Display Scaling Large 4.1 Digit 20.3mm (8 Inch) LED Display 250mS Response Time PC 94 UL V0 Each unit needs just 96 x 48mm Panel Space 90mm Depth CE Approved Specification Fastron Electronics Part Number AMB-DVO(+-199mV)A-N Conditioner Output N/A Input +/- 199.9mVDC Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 110-240VAC Span Adjustment Range +/-10% Zero Adjustment Range +/-5% Termination Style Screw Display Type 4.1 Digit RED LED Mounting Style 96 x 48mm Panel Mount Case Material PC - UL 94 V0 Weight 320g Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Panel Meters Blog Articles

Read more less

BS1-ND213, Digital DC Ammeter, 48x24mm, 85-265VAC, Range : 4-20mADC, Display Range 0-199.9, 100 Ohm Input,  3.5-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) UL/CE Approved Each unit needs just 100.2 mm depth panel space EC Compliant Specification Hanyoung Nux Part Number BS1-ND213 Input 4-20mA (0-199.9 Display Range) Mounting Style 48 x 24mm Panel Mount Supply Voltage 85 - 265VAC Termination Style Screw Weight 250g Factory Pack Qty 1 ROHS Yes UL Yes CE Yes   Datasheet BS1 Series Instruction Manual BS1 Series Wiring and Selection Tables Free Software Hanyoung Nux TCS Software Hanyoung Nux TCS Software User Manual VX Series SB Driver (Windows 7) Not required for Windows 10 or 11

Read more less

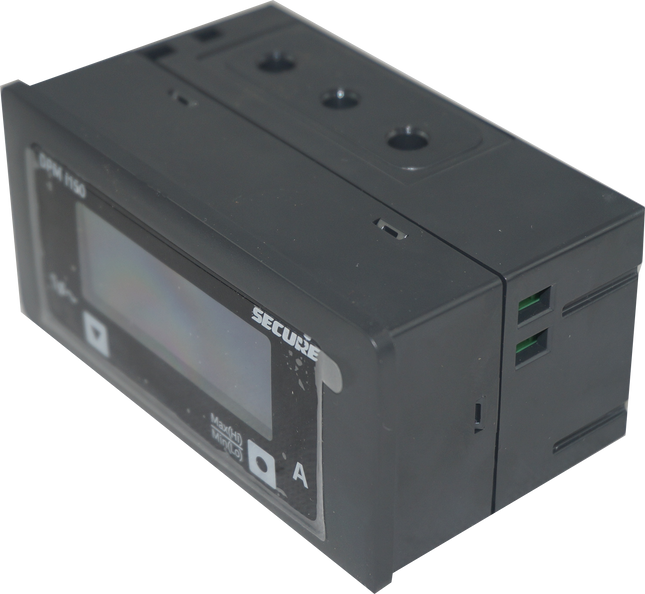

Secure Meters DPM48I200-2, 48mm x 96mm Digital DC Ammeter, DC Voltmeter +/-150mV Shunt Input, 0.5% Accuracy, 40 to 300VAC/DC Supply, IP54 (Optional IP65)   Features LED Dual Display 250mS Response Time PC 94 UL V0 Each unit needs just 96 x 48mm Panel Space 52mm Depth CE Approved ROHS and REACH Specification Secure Part Number DPM48I200-2 Frequency Range 45-65 Hz Accuracy 0.5% Input +/-150mVDC Over Range x 1.5 Operating Temperature 0 - 60°C Supply Voltage 40-300VAC/DC Termination Style Screw Mounting Style 96 x 48mm Panel Mount Case Material PC - UL 94 V0 Standards IEC / EN 61010-1; IEC / EN 61010-2-030 Protection Degree IP54 (IP65 Optional) Weight 280g Factory Pack Qty 1   Datasheet Product Datasheet Manual DPM Series User Manual Application Notes Panel Meters Blog Articles

Read more less
