DC Moulded Case Circuit Breakers (MCCB)

Trent FGM6DC-3PL-320 200A, 3 Pole DC Moulded Case Circuit Breaker (MCCB) Fixed Type Ics = 25kA, 200 Amp, 1500VDC Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : < 50mS Trip Delay Time Disconnect 25kA Short Circuit Rating @400VAC Suitable for DC Power Systems Including Solar and Battery Standards : IEC/EN 60947-3 IP20 (IP40 Installed) IEC 61008 Specification Trent Part Number FGM6DC-3PL-320 200A Functions DC MCCB Nominal Voltage 1500VDC Nominal Current Range 200 Amps Trip Delay Time < 50ms Operating Temperature -35 to 70 Deg C Electrical Operations 5,000 Ops Insulation Voltage 1500V Short Circuit Current Ics=Icu (Ics/Icu) 25kA Approvals CE Standards GB/T14048.2, IEC/EN 60947-3, IP20 (IP40 Installed)  Weight 3.3kg Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet CE Declaration

Read more less

Trent FGM6DC-3PL-320 125A, 3 Pole DC Moulded Case Circuit Breaker (MCCB) Fixed Type 25kA 125 Amp, 1500VDC Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : Disconnect 25kA Short Circuit Rating @1500VDC Suitable for DC Power Systems Including Solar and Battery Standards : IEC/EN 60947-3 IP20 (IP40 Installed) IEC 61008 Specification Trent Part Number FGM6DC-3PL-320 125A Functions DC MCCB Nominal Voltage 1500VDC Nominal Current Range 125 Amps Trip Delay Time < 50ms Operating Temperature -35 to 70 Deg C Electrical Operations 5,000 Ops Insulation Voltage 1500V Short Circuit Current Ics=Icu 25kA @ 1500VDC Approvals CE Standards GB/T14048.2, IEC/EN 60947-3, IP20 (IP40 Installed)  Weight 3.3kg Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet CE Declaration

Read more less

Trent FGM6DC-3PLC-800 800A, 3 Pole DC Moulded Case Circuit Breaker (MCCB) Fixed Type 25kA 800 Amp, 1500VDC Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : 3 Pole Disconnect 25kA Short Circuit Rating @1500VDC Suitable for DC Power Systems Including Solar and Battery Standards : IEC/EN 60947-3 IP20 (IP40 Installed) IEC 61008 Specification Trent Part Number FGM6DC-3PLC-800 800A Functions 3 Pole DC MCCB Nominal Voltage 1500VDC Nominal Current Range 800 Amps Trip Delay Time < 50ms Rated Impulse Voltage 12kV Operating Temperature -35 to 70 Deg C Electrical Operations 5,000 Ops Insulation Voltage 1500V Short Circuit Current Ics=Icu (Ics/Icu) 25kA Approvals CE Standards GB/T14048.2, IEC/EN 60947-3, IP20 (IP40 Installed)  Weight 8.5kg Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet CE Declaration

Read more less

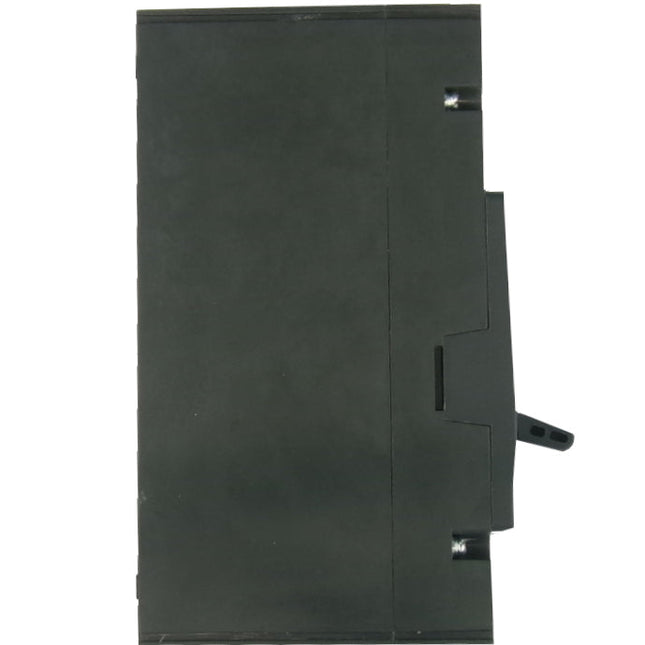

Trent FGM6DC-3PL-630 630A, 3 Pole DC Moulded Case Circuit Breaker (MCCB) Fixed Type Ics = 25kA, 630 Amp, 1500VDC Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : 3 Pole Disconnect 25kA Short Circuit Rating @1500VDC Suitable for DC Power Systems Including Solar and Battery Standards : IEC/EN 60947-3 IP20 (IP40 Installed) IEC 61008 Specification Trent Part Number FGM6DC-3PLC-630 630A Functions 3 Pole DC MCCB Nominal Voltage 1500VDC Nominal Current Range 630 Amps Trip Delay Time < 50ms Rated Impulse Voltage 12kV Operating Temperature -35 to 70 Deg C Electrical Operations 5,000 Ops Insulation Voltage 1500V Short Circuit Current Ics=Icu (Ics/Icu) 25kA Approvals CE Standards GB/T14048.2, IEC/EN 60947-3, IP20 (IP40 Installed)  Weight 8.5kg Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet CE Declaration

Read more less

Trent FGM6DC-3PL-500 500A, 3 Pole DC Moulded Case Circuit Breaker (MCCB) Fixed Type, Ics = 25kA, 630 Amp, 1500VDC Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : 3 Pole Disconnect 25kA Short Circuit Rating @1500VDC Suitable for DC Power Systems Including Solar and Battery Standards : IEC/EN 60947-3 IP20 (IP40 Installed) IEC 61008 Specification Trent Part Number FGM6DC-3PLC-630 500A Functions 3 Pole DC MCCB Nominal Voltage 1500VDC Nominal Current Range 500 Amps Trip Delay Time < 50ms Rated Impulse Voltage 12kV Operating Temperature -35 to 70 Deg C Electrical Operations 5,000 Ops Insulation Voltage 1500V Short Circuit Current Ics=Icu (Ics/Icu) 25kA Approvals CE Standards GB/T14048.2, IEC/EN 60947-3, IP20 (IP40 Installed)  Weight 8.5kg Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet CE Declaration

Read more less

Trent FGM6DC-3PL-400 350A, 3 Pole DC Moulded Case Circuit Breaker (MCCB) Fixed Type, Ics = 25kA, 350 Amp, 1500VDC Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : 3 Pole Disconnect 25kA Short Circuit Rating @1500VDC Suitable for DC Power Systems Including Solar and Battery Standards : IEC/EN 60947-3 IP20 (IP40 Installed) IEC 61008 Specification Trent Part Number FGM6DC-3PL-400 350A Functions 3 Pole DC MCCB Nominal Voltage 1500VDC Nominal Current Range 350 Amps Trip Delay Time < 50ms Rated Impulse Voltage 12kV Operating Temperature -35 to 70 Deg C Electrical Operations 5,000 Ops Insulation Voltage 1500V Short Circuit Current Ics=Icu (Ics/Icu) 25kA Approvals CE Standards GB/T14048.2, IEC/EN 60947-3, IP20 (IP40 Installed)  Weight 8.5kg Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet CE Declaration

Read more less

Trent TC-FGM6DC-3P-800, Terminal Cover for 3 Pole DC Moulded Case Circuit Breaker (MCCB) Frame Size 800, 1 PC ONLY  Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : IP40 Terminal Cover UL94V0 Material Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 Specification Trent Part Number TC-FGM6DC-3P-800 Functions Terminal Cover for 3 Pole DC Moulded Case Circuit Breaker Frame Size 800 Operating Temperature -25 to 50 Deg C Insulation Voltage 800V Weight 50g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Trent TC-FGM6DC-630, Terminal Cover for 3 Pole DC Moulded Case Circuit Breaker (MCCB) Frame Size 630, 1 PC ONLY  Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : IP40 Terminal Cover UL94V0 Material Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 Specification Trent Part Number TC-FGM6DC-630 Functions Terminal Cover for 3 Pole DC Moulded Case Circuit Breaker Frame Size 630 Operating Temperature -25 to 50 Deg C Insulation Voltage 800V Weight 50g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less

Trent TC-FGM6DC-400 100A, Terminal Cover for 3 Pole DC Moulded Case Circuit Breaker (MCCB) Frame Size 400, 1 PC ONLY  Miniature Circuit Breakers are used for over-current (overload and short-circuit) protection of installations and devices, and as a disconnector in case of electric shock Features : IP40 Terminal Cover UL94V0 Material Standards : IEC/EN 60898,60947-3 IP20 (IP40 Installed) IEC 61008 Specification Trent Part Number TC-FGM6DC-400 Functions Terminal Cover for 3 Pole DC Moulded Case Circuit Breaker Frame Size 400 Operating Temperature -25 to 50 Deg C Insulation Voltage 800V Weight 50g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet

Read more less
