Electronicon E50.N85-603NT0, 60uF 2kVDC, DC Link, H:85mm x D:85mm, Imax = 40 Amp, M12 Mounting Stud, M6 Terminals Characteristics and utility 60uF, 2kVDC0.0kvar 20kvar DC Link Film Capacitor Connector type - Stud inserts Indoor mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E50.N85-603NT0, 60uF 2kVDC Technology DC Link Dimensions H:181mm x D:85mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 2kVDC Inom 40 Amps Capacitance 620uF Tolerance On Capacitance +/- 10% Lifetime 200,000 Hours Termination Style M6 Screw Inserts Unit Weight 0.7kg Factory Pack Quantity 2   Datasheet Product Catalogue

Read more less

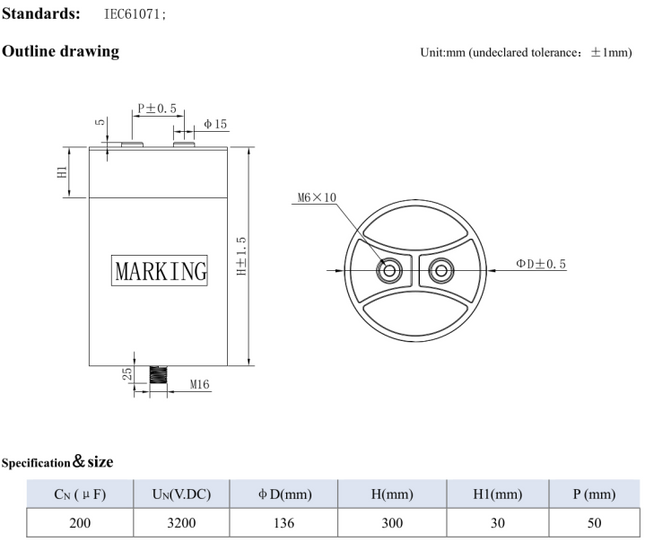

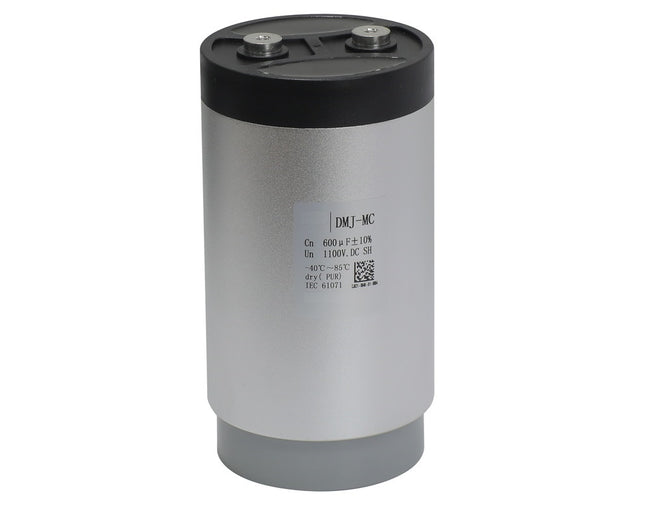

Fastron Electronics DMJ-MC 200uF, 3200VDC 136x300, DC Link, 80Amp, H:335mm x D:136mm, M16 Mounting Stud, M6 Terminals, Suitable to Replace E63.S32-204CR0 Characteristics and utility 200uF, 3200VDC0.0kvar 20kvar DC Link Film Capacitor Connector type - Stud inserts Indoor mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Fastron Part Number DMJ-MC 200uF, 3200VDC 136x300 Technology DC Link Dimensions H:335mm x D:236mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 900VDC Inom 80 Amps Capacitance 200uF Tolerance On Capacitance +/- 10% Lifetime 200,000 Hours Termination Style M6 Screw Inserts Unit Weight 5.1kg Factory Pack Quantity 2 Factory Location China   Datasheet Product Datasheet

Read more less

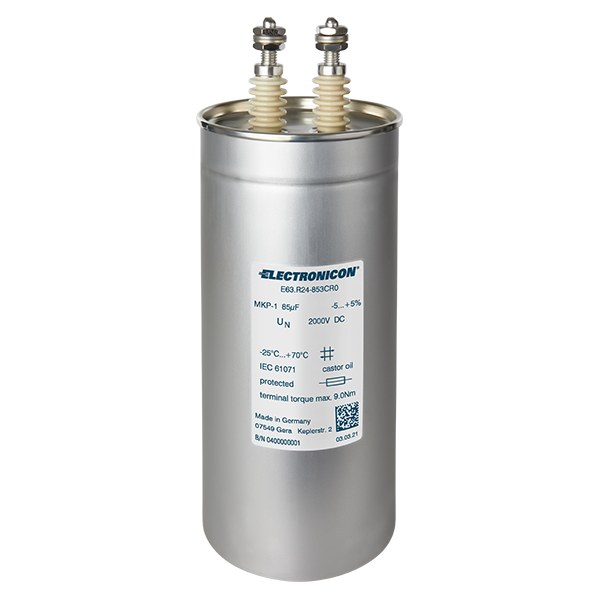

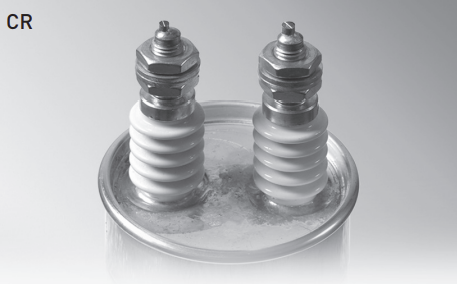

E63.S32-204CRO, 200uF, DC Link Capacitor ø136 x 320mm, M10x12 terminals with Bushing. CRO Design, Voltage: 3200VDC Characteristics and utility 200uF 3200VDC Metalized Polypropylene Film Connector type - M10 x 25mm Studs M12 Stud mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E63.S32-204CRO Technology Metalized Polypropylene Film Capacitor Dimensions ø136 x 320mm Mounting M12 Stud Standards IEC 60831-1/2, EN 60831-1/2 Voltage 3200VDC Operating Temperature Range -40 to 85 °C Capacitance 200uF Tolerance On Capacitance +10 / -10% Lifetime 200,000 Hours @ 85 °C (Statistical Life) Termination Style M10 x 25 studs Unit Weight 1.3kg Factory Pack Quantity 21 (MOQ = 105)   Datasheet Product Datasheet

Read more less

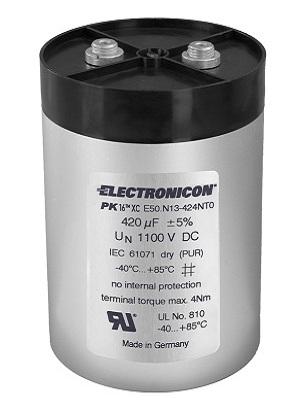

Electronicon E50.N18-624NT0 620uF 900VDC, DC Link, 60Amp, H:181mm x D:85mm, M12 Mounting Stud, M6 Terminals Characteristics and utility 620uF, 900VDC0.0kvar 20kvar DC Link Film Capacitor Connector type - Stud inserts Indoor mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Electronicon Part Number E50.N18-624NT0 620uF 900VDC Technology DC Link Dimensions H:181mm x D:85mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 900VDC Inom 60 Amps Capacitance 60uF Tolerance On Capacitance +/- 10% Lifetime 200,000 Hours Termination Style M6 Screw Inserts Unit Weight 2.5kg Factory Pack Quantity 2   Datasheet Product Catalogue  Product Datasheet

Read more less

Iskra Doo KNG3047 500uF 900VDC, DC Link 60Amp, RRN404_21, H:142mm x D:85mm, M12 Mounting Stud, M6 Terminals, MOQ = 100pcs 970uF, 1000VDC0.0kvar 20kvar DC Link Film Capacitor Connector type - Stud inserts Indoor mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Iskra Doo Part Number KNG3047 500uF 900VDC Technology DC Link Dimensions H:142mm x D:85mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 900VDC Inom 60 Amps Capacitance 500uF Tolerance On Capacitance +/- 10% Lifetime 120,000 Hours Termination Style M6 Screw Inserts Unit Weight 2.4kg Factory Pack Quantity 200   Datasheet Product Datasheet

Read more less

Iskra Doo KNG3047 2295uF 700VDC, DC Link, 120Amp, RRN327/20, H:220mm x D:116mm, M12 Mounting Stud, M6 Terminals, MOQ = 50pcs Characteristics and utility 2295uF, 700VDC0.0kvar 20kvar DC Link Film Capacitor Connector type - Stud inserts Indoor mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Iskra Doo Part Number KNG3047 2295uF 700VDC Technology DC Link Dimensions H:220mm x D:116mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 700VDC Inom 120 Amps Capacitance 2295uF Tolerance On Capacitance +/- 10% Lifetime 120,000 Hours Termination Style M6 Screw Inserts Unit Weight 3.1kg Factory Pack Quantity 200   Datasheet Product Datasheet

Read more less

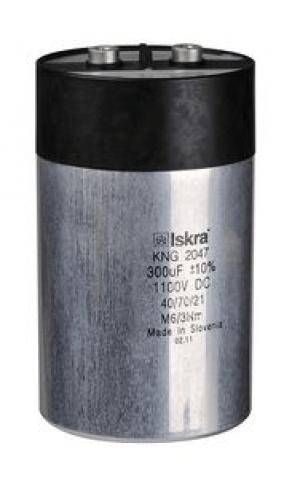

Iskra Doo KNG3047 970uF 1000VDC, DC Link Capacitor, 80 Amp, MOQ = 200pcs Characteristics and utility 970uF, 1000VDC0.0kvar 20kvar DC Link Film Capacitor Connector type - Stud inserts Indoor mounting Standards IEC 60831-1/2 EN 60831-1/2 Specification Iskra Doo Part Number KNG3047 970uF 1000VDC Technology DC Link Dimensions H:165mm x D:116mm Standards IEC 60831-1/2, EN 60831-1/2 Voltage 1000VDC Inom 80 Amps Capacitance 970uF Tolerance On Capacitance +/- 10% Lifetime 120,000 Hours Termination Style M6 Screw Inserts Unit Weight 2.4kg Factory Pack Quantity 200   Datasheet Product Datasheet

Read more less
