Current Transformers Non-Fastron

Rish Xmer 195/80 2500/5 Split Core CT Class 0.5 25VA, 85 x 172mm Aperture

11 pcs in stock

Rish Xmer Split Core 2500/5 Amp 195/80 Class 0.5, 25VA Series Current Transformer, 85 x 172mm Aperture Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Electronics Part Number Rish Xmer Split Core 2500/5 195/80 Technology Split Core AC Current Transformer Ratio 2500/5 Aperture Size 172 x 85mm VA Rating 25VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -25°C / 40°C Continuous Current (max) Ipn x 1.2 Termination Style Screw Unit Weight 2kg Factory Pack Qty 9 Datasheet Product Datasheet

Read more less

11 pcs in stock

$383.00
$451.94 inclGST

Rish Xmer Splt Core 195/80 2500/5 Split Core CT Class 1 30VA, 85 x 172mm Aperture

Out of stock

Rish Xmer Splt Core Split Core 2500/5 Amp 195/80 Class 1, 30VA Series Current Transformer, 85 x 172mm Aperture Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Electronics Part Number Rish Xmer Split Core 2500/5 195/80 Technology Split Core AC Current Transformer Ratio 2500/5 Aperture Size 172 x 85mm VA Rating 30VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -25°C / 40°C Continuous Current (max) Ipn x 1.2 Termination Style Screw Unit Weight 2kg Factory Pack Qty 9 Datasheet Product Datasheet

Read more less

Out of stock

$383.00
$451.94 inclGST

View options

Xmer CT Split 93/30SC 300/5 Class 0.5 2.5VA, 23 x 33mm Aperture

12 pcs in stock

Xmer CT Split 93/30SC 300/5 Class 0.5 2.5VA, 23 x 33mm Aperture Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Rishabh Part Number Xmer CT Split 93/30SC 300/5 Class 0.5 2.5VA Technology Split Core AC Current Transformer Ratio 300/5 Aperture Size 23 x 33mm VA Rating 2.5VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 200Amp x 1.2 Termination Style Screw Unit Weight 600g Factory Pack Qty 9 Datasheet Product Datasheet

Read more less

12 pcs in stock

$89.00
$105.02 inclGST

FAT150D10, AC Current Transducer, 150Amp Measurement, 24mm Split Core, 0-10V Average RMS Output, Accuracy = 1%, 500mm Cable Length

Out of stock

Fastron Electronics FAT150D10, AC Current Transducer, 150Amp Measurement, 24mm Split Core, 0-10V Average RMS Output, Accuracy = 1%, 500mm Cable Length Features Quick Release 24mm Split Core System Cale Mount 0-10V Output 24VDC Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Part Number FAT150D10 Technology 24mm Split Core AC Current Transformer Ratio 150/0-10V Aperture Size ø 24 mm VA Rating N/A Accuracy Class Class 1 Output 0-10V (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 150Amp x 1.2 Termination Style 0.5M Flying leads Unit Weight 300g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide

Read more less

Out of stock

$189.00
$223.02 inclGST

FAT150D420T, AC Current Transducer, 150Amp Measurement, 24mm Split Core, 4-20mA Average RMS Output, Accuracy = 1%, Terminal Types

12 pcs in stock

Fastron Electronics FAT150D420T, AC Current Transducer, 150Amp Measurement, 24mm Split Core, 4-20mA Average RMS Output, Accuracy = 1% Features Quick Release 24mm Split Core System Cale Mount 4-20mA Output 24VDc Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Part Number FAT150D420T Technology 24mm Split Core AC Current Transformer Ratio 150/4-20mA Aperture Size ø 24 mm VA Rating N/A Accuracy Class Class 1 Output 4-20mA (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 150Amp x 1.2 Termination Style 0.5M Flying leads Unit Weight 300g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide

Read more less

12 pcs in stock

$189.00
$223.02 inclGST

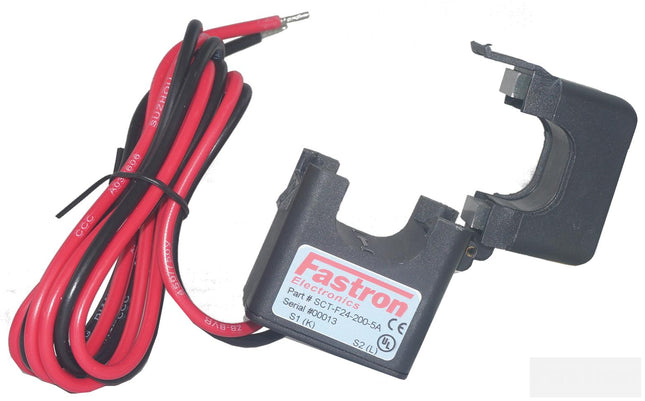

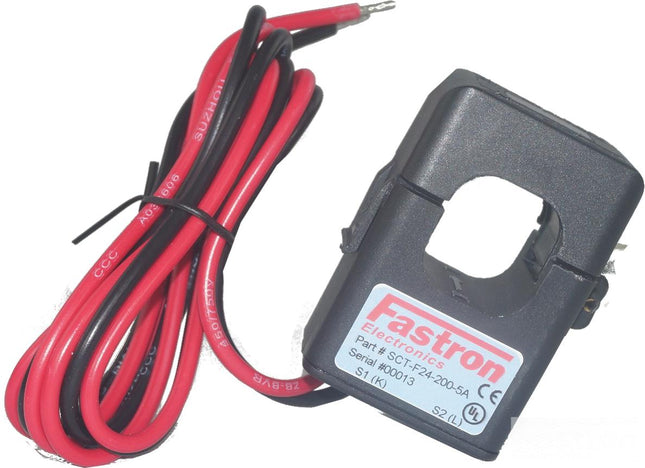

SCT-F24-300-5A, 5 Amp, 300Amp measurement Split Core CT's-Split Core AC Current Transformer-Fastron Electronics-Fastron Electronics Store

FAT150D10, AC Current Transducer, 150Amp Measurement, 24mm Split Core, 0-10V Average RMS Output, Accuracy = 1%, 500mm Flying Leads

Out of stock

Fastron Electronics FAT150D10, AC Current Transducer, 150Amp Measurement, 24mm Split Core, 0-10V Average RMS Output, Accuracy = 1% Features Quick Release 24mm Split Core System Cale Mount 0-10V Output 24VDC Aux Rated System Voltage 0.60/2.5kV 0.5M Flying Leads Applications US Based Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Fastron Part Number FAT150D10 Technology 24mm Split Core AC Current Transformer Ratio 150/0-10V Aperture Size ø 24 mm VA Rating N/A Accuracy Class Class 1 Output 0-10V (+20%) Isolation 2.5kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Cable Mount/Busbar Mount Operating Temperature Range -15°C / 45°C Continuous Current (max) 150Amp x 1.2 Termination Style 0.5M Flying leads Unit Weight 300g Factory Pack Qty 9 Datasheet Product Datasheet Application Notes Installation Guide

Read more less

Out of stock

$189.00
$223.02 inclGST

N2600MC160, Thyristor(SCR) PUK 1760 Amp, 1600V, 74/26, Can Replace T1500N16 or T1509N16

24 pcs in stock

Westcode N2600MC160, Thyristor(SCR) PUK 1760 Amp, 1600V, 74/26, Can Replace T1500N16 or T1509N16 Features Very low forward voltage drop Very low leakage current International standard package 74/26 Package Press Mounted Double or Single Sided Cooling Applications Power Supplies Rectifier for drives applications Uncontrolled Rectifiers Rectifiers for UPS Battery Chargers Field Supply for DC Motors Water Cooled Rectifiers DC Substation Blocking Diode Large Generators Specification Infineon Part Number N2600MC160 Vrrm 1600V Diode Configuration Diode Capsule (PUK) IF(av) @ 85 Deg C 1760 Amp Package Size ø74 x 26mm Itsm 33 kA VF(to) 0.95V Tj(max) 180°C rF 0.13mΩ Gate Terminals Faston 4.8 x 0.8mm & 2.8 x 0.8mm R th(j-c) (double sided cooled 180°sin) 0.015°C/W R th(c-h) (double sided cooled) 0.030°C/W Weight 600g Clamping Force 24 - 32kN Factory Pack Qty 12 Certification ROHS Infineon Headquarters Germany Datasheet Product Datasheet Heatsink Heatsink Profiles

Read more less

24 pcs in stock

$595.00
$702.10 inclGST
