Crydom HS151DR-D1D40, Din Rail Mount DC Solid State Relay, with Heatsink 3-32VDC control, 29A @ 40 Deg C, 100VDC Load Features Ratings from 7A to 100 Amp @ 1-500VDC Mosfet output for equal load sharing Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec Part Number HS151DR + D1D40 Switching Type DC Switching ROHS/CE/UL Yes Control Voltage 3.5 - 32VDC Load Current 29 Amp DC @ 40 Deg C Surge Capability 106 Amp DC Special Feature LED Status Indicator Mounting Style Panel Mount Reccomended Load Voltage 1-72 VDC Max Load Voltage 100 VDC Termination Style Screw Terminals Dimensions L:97mm x W:45mm x D:142.8mm Unit Weight 450g Factory Pack Qty 10   Datasheet HS151DR Datasheet Series 1 DC Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Crydom HS151DR-D1D20, Din Rail Mount DC Solid State Relay, with Heatsink 3-32VDC control, 18A @ 40 Deg C, 100VDC Load Features Ratings from 7A to 100 Amp @ 1-500VDC Mosfet output for equal load sharing Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec Part Number HS151DR + D1D20 Switching Type DC Switching ROHS/CE/UL Yes Control Voltage 3.5 - 32VDC Load Current 18 Amp DC @ 40 Deg C Surge Capability 42 Amp DC Special Feature LED Status Indicator Mounting Style Panel Mount Reccomended Load Voltage 1-72 VDC Max Load Voltage 100 VDC Termination Style Screw Terminals Dimensions L:97mm x W:45mm x D:142.8mm Unit Weight 450g Factory Pack Qty 10   Datasheet HS151DR Datasheet Series 1 DC Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Crydom HS151DR-D5D07, Din Rail Mount DC Solid State Relay, with Heatsink 3-32VDC control, 6.5A @ 40 Deg C, 500VDC Load Features Ratings from 7A to 100 Amp @ 1-500VDC Mosfet output for equal load sharing Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Direct bond copper substrate Direct power lead frame Epoxy free design Spec Part Number HS151DR + D2D07 Switching Type DC Switching ROHS/CE/UL Yes Control Voltage 3.5 - 32VDC Load Current 6.5 Amp DC @ 40 Deg C Surge Capability 22 Amp DC Special Feature LED Status Indicator Mounting Style Panel Mount Reccomended Load Voltage 1-150 VDC Max Load Voltage 200 VDC Termination Style Screw Terminals Dimensions L:97mm x W:45mm x D:142.8mm Unit Weight 450g Factory Pack Qty 10   Datasheet HS151DR Datasheet Series 1 DC Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

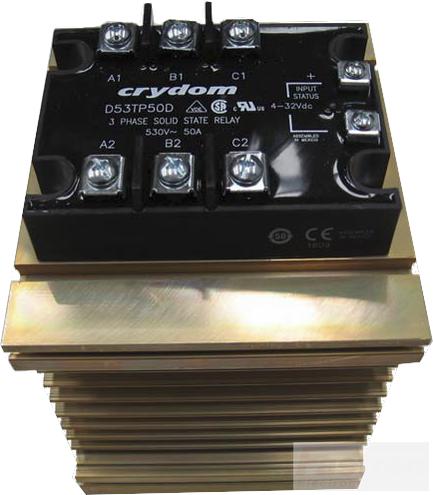

Fastron H31/110M + A53TP50D, Three Phase Solid State Relay with Heatsink 3.5-32VDC Control, 3 x 34Amp, 48-530VAC Load Features Ratings from 25 to 120 Amp @ 48-533 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs IP20 Cover Included AC & DC control types Direct bond copper substrate Direct power lead frame Epoxy free design Spec Fastron Part Number H31/110M-B + A53TP50D Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 90-280VAC Load Current 3 x 34 Amp (rms) Surge Capability 597 Amp (peak) Special Feature LED Status Indicator Mounting Style Panel Mount Load Voltage Range 48-530VAC Dimensions L:110 x W:125 x D:180mm EMC Compliant Level 3 Termination Style Screw Unit Weight 2kg Factory Pack Qty 10 Datasheet Product Datasheet H31 Datasheet Equivalent Contact Us for Possible Replacement App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

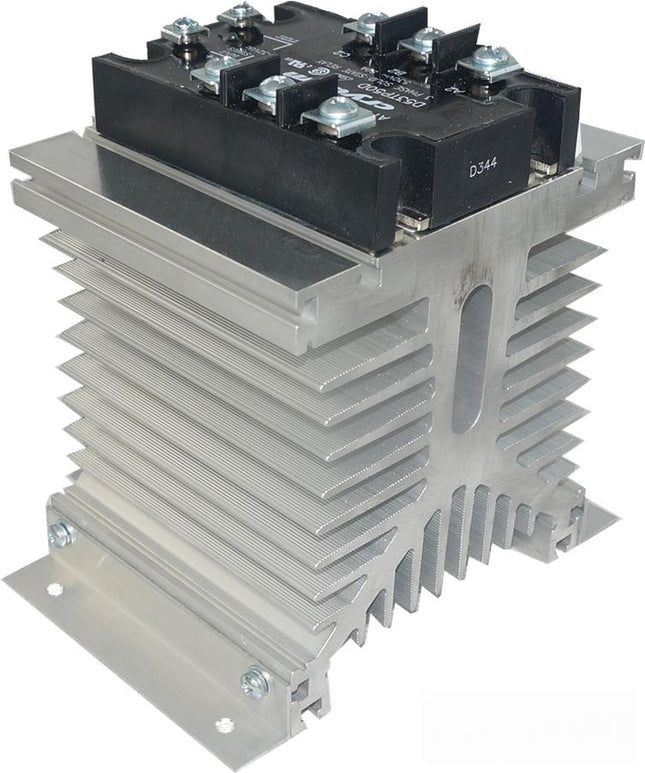

Fastron H31/110M-B + D53TP50D, Three Phase Solid State Relay with Heatsink 3.5-32VDC Control, 3 x 34Amp, 48-530VAC Load Features Ratings from 25 to 120 Amp @ 70-480 VAC SCR output for heavy industrial loads Zero voltage or Instantaneous turn-on outputs IP20 Cover Included AC & DC control types Direct bond copper substrate Direct power lead frame Epoxy free design Spec Fastron Part Number H31/110M-B + D53TP50D Switching Type Zero Crossing ROHS/CE/UL Yes Control Voltage 3.5-32VDC Load Current 3 x 34 Amp (rms) Surge Capability 597 Amp (peak) Special Feature LED Status Indicator Mounting Style Panel Mount Dimensions L:110 x W:125 x D:180mm Load Voltage Range 70-530VAC EMC Compliant Level 3 Termination Style Screw Unit Weight 2kg Factory Pack Qty 10 Datasheet Product Datasheet H31 Datasheet App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less

Crydom 10PCV2450, 2-10V Input Proportional Solid State Relay/Controller, 100-240VAC, 50 Amp Features 2-10V Proportional Phase Control Input Ratings from 25A to 90 Amp @ 70-280 VAC SCR output for heavy industrial loads Zero voltage or instantaneous turn-on outputs UL/CE/ROHS Compliant Includes Plastic IP20 Terminal Cover Direct bond copper substrate Direct power lead frame Epoxy free design Spec Crydom Part Number 10PCV2450 Switching Type Phase Angle (Random Crossing) ROHS/CE/UL Yes Control Voltage 2 - 10V Proportional Input Load Current 50 Amp (rms) Surge Capability 625Amp (peak) Special Feature Proportional Controller + SSR Mounting Style Panel Mount Load Voltage Range 180-280VAC Max Non Repetitive Peak Voltage 600 Vp Termination Style Barrier Strip Screw Unit Weight 160g Factory Pack Qty 20 Datasheet Product Datasheet Notifications Please note Changes from Gen 3 to Gen 4 (current) package design here Equivalent Relequick RS1APV010DC280060R Contact Us for Possible Replacement App Notes Why Use SSR's? The inside story Selecting a SSR DC Output SSR's Selecting a Suitable Heatsink Use of Thermal Interface Material How to Verify the Proper Heatsink Effect of Forced Air Cooling Fuse Protection of SSR's Overvoltage Protection "P" Option MOV SSR Reliability Whitepaper 3 Phase Motors and Heating Applications 3 Phase Motor Reversing How to test a SSR SSR Precautions SSR Life Expectancy MTBF ROHS & Reach Statement Heatsink SSR and Heatsink Assemblies

Read more less
