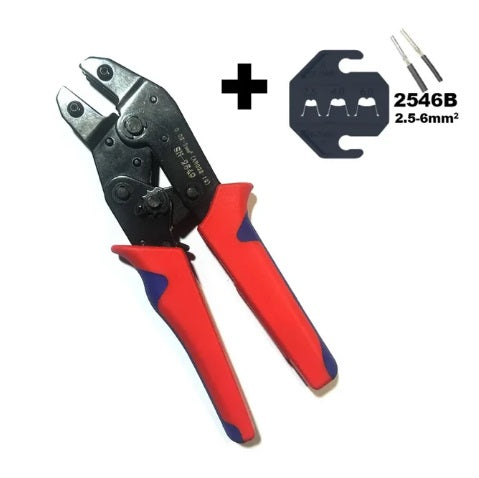

SN2546B, Crimp Tool/Pliers with SN2546B Jaw, Dupont Crimper 2.54/4.0/6.0 mm for EPS, Ferrul, JST, XH, Molex Connectors
Specification
Part Number:
SN-2546B
Series:
Dupont Multi 2.54/4.0/6.0
Jaw Type
SN2546B
Length:
7.67 Inch
Wire Size:
AWG23-16
Keyed:
Yes, A key
Color:
Black/Red/Blue
Material:
Metal/Plastic
Shape:
Rectangular
Connector Style:
Plug
Cavities:
4
Holds Pin/Socket:
Holds
Features
Small size: The crimping tool is small in size and light in weight, easy to carry and store.
Excellent product: The crimping tool is made of high-quality stainless steel, which is durable and has a long service life.
Multi purpose uses: The crimping tool can be used to open and close wires, such as cable cutters, carabiners, etc.

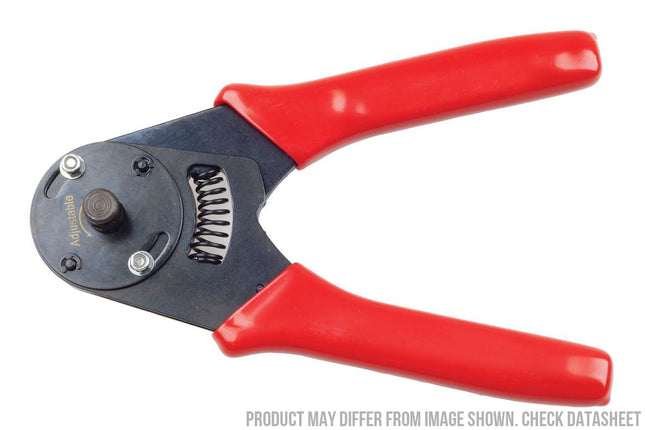

Crimper for Deutsch Connector for Gigavac Auto Contactors, DTE16
Specification
Part Number:
DEUTSCH CRIMPER DTE16
Series:
DT Series
Insulation:
.088-.145 [2.24-3.68]
Wire Size:
16
Keyed:
Yes, A key
Color:
Black/Red
Material:
Metal/Plastic
Shape:
Rectangular
Connector Style:
Plug
Cavities:
8
Contact Size:
16
Rating:
13
Holds Pin/Socket:
Socket
Flange/In-line/PCB Mount:
In-line
Features
Product Type Features
Connector Style : Housing for female terminals
Connector System : Wire-to-Wire
Sealable : Yes
Hybrid Connector : No
Primary Locking Feature : Integrated in Housing
Connector & Contact Terminates To : Wire & Cable
Strain Relief : Add By Accessory
Row-to-Row Spacing : 4.45 mm [ .175 in ]
Configuration Features
Number of Positions : 8
Number of Rows : 2
Blank Cavity Position : 0
Electrical Characteristics
Nominal Voltage Architecture (V): 12, 24, 48
Operating Voltage (VAC): 250
Operating Voltage (VDC): 250
Body Features
Color : Gray
Connector Code : A
Cable Exit Angle : 180°
Body Material : PA GF
Contact Features
Mating Pin Diameter : 1.59 mm [ .0625 in ]
Contact Rating (Max) (A): 13
Mechanical Attachment
Mounting Feature : Without
Terminal Position Assurance : Yes
Polarized : Yes
Housing Features
Centerline (Pitch) : 9.12 mm [ .359 in ]
Dimensions
Width : 19.71 mm [ .776 in ]
Height : 37.21 mm [ 1.465 in ]
Length : 30.91 mm [ 1.217 in ]
Usage Conditions
Operating Temperature Range : -55 – 125 °C [ -67 – 257 °F ]
Operation/Application
Circuit Application : Power & Signal
Industry Standards
Degree of Protection : IP68, IP6K9K
UL Flammability Rating : 12mm Flame Test per Standard UL-94
Agency/Standard : SAE J2030
Packaging Features
Packaging Method : Box
Packaging Quantity : 550
Other
Connector Position Assurance Capable : No
Serviceable : Yes
Datasheet
https://www.te.com/commerce/DocumentDelivery/DDEController?Action=showdoc&DocId=Customer+Drawing%7FDT06-08SA%7FE%7Fpdf%7FEnglish%7FENG_CD_DT06-08SA_E.pdf%7FDT06-08SA
SKU
A03325
Brand
Deutsch/TE
Shipping Weight
0.0100kg
Shipping Width
0.010m
Shipping Height
0.020m
Shipping Length
0.010m
Shipping Cubic
0.000002000m3
