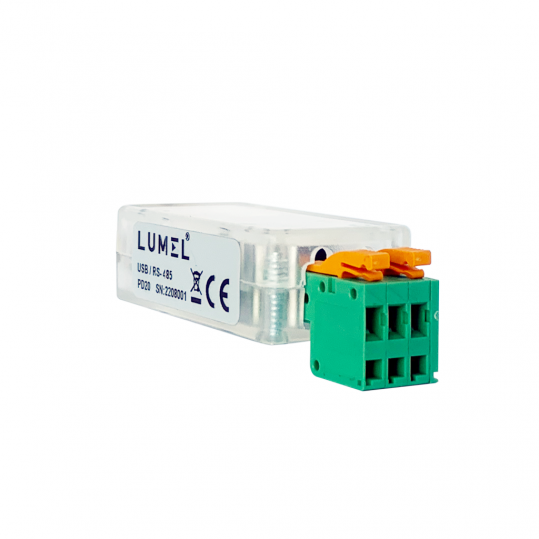

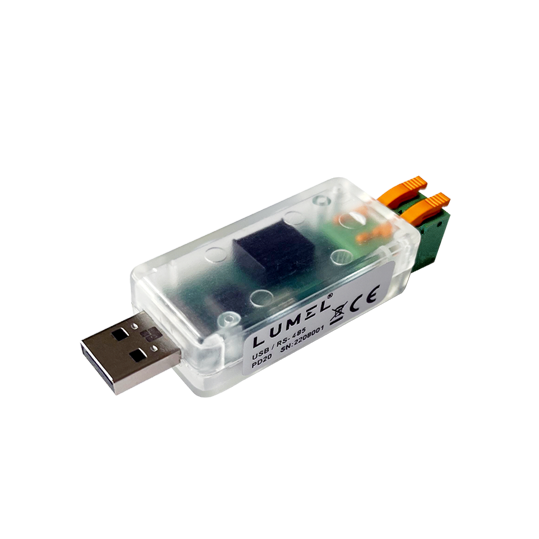

PD20 00M0, Industrial Grade USB to RS485 Converter, 115.2kbps, Full Galvanic Isolation
Features
In PD20 converter are used 2 interfaces (USB, RS485) - galvanically isolated.
USB interface (type A) – destined for the device communication with the computer.
RS-485 interface - destined for the communication with devices from the object side.
Compliance with the standard USB 1.1 and USB 2.0.
Data transmission rate up to 115.2 kbps.
Support virtual serial port (COM).
Bi-directional data transmission (half duplex).
Device supplied from USB port.
External dimension: 76 x 25 x 20mm.
Converter does not interfere into the structure of data transmission and is compatible with many industrial communication protocols.
Datasheet and User Manual
Datasheet
Service Manual
Lumel SM61IoT-1100M0, Datalogger with Internal Web page, Universal 85-253VAC, 90-300VDC Supply, 2 Relays, Modbus, Email Alarm Feature TCP/RTU,MQTT,HTTP/TCP/UDP/FTP/RS485/RS232/USB Comms
MQTT protocol for IoT Applications
Internal Web page
1GB Flash Memory (Optional 8GB)
USB/RS232/RS485/Ethernet Comms as standard
Modbus TCP/RTU,MQTT,HTTP/TCP/UDP/FTP Protocols
Universal 85-253VAC, 90-300VDC Supply
Relays Alarms (Optional Digital Alarms)
Email Alarm Feature
Features :
Built in Web Page and FTP Server
2 RS485 Ports or 1 x RS485 and 1 x RS232 Ports
2 Relay Alarms
Real Time Clock
Simultaneous Interrogation of Data
Password Data Access
Email Alarm Function
Specification
Lumel Part Number
SM61IoT-1100E0
Functions
Communication Datalogger and Alarm Unit
Supply Voltage
90-300VDC or 85-253VAC
Protocols
TCP/RTU,MQTT,HTTP/TCP/UDP/FTP
Communication Ports
RS485/RS232,RS485,USB,Ethernet
RS485/RS232 Baud Rate
1200,2400,4800,9600,19200,38400,57600,115200 bit/s
USB Baud Rate
115200 bit/s
Ethernet Baud Rate
10,100 Mbit/s
Real Time Clock
1min/month (30ppm)
Isolation
3.5kV
Weight
250g
Language
English and Polish version
Factory Pack Qty
1
EU Directives
EN61000, EN61010
Safety
Protection Class II
Enclosure Material
PC/ABS non combustable-self-extinguishability, complying with UL 94 V-0
Enclosure Protection
IP20
Operating Temperature
-20 →+70 °C
Datasheet
Product Datasheet
User Manual

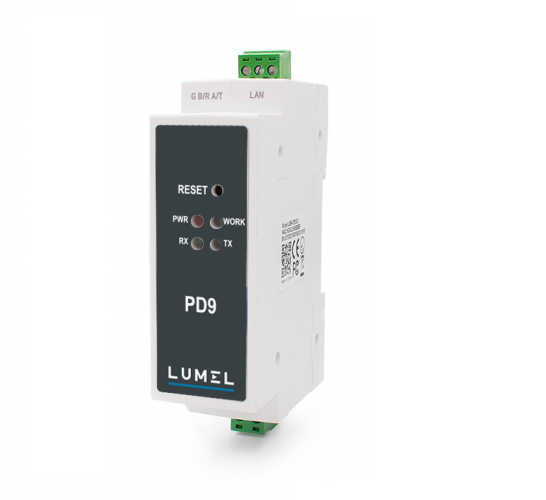

Lumel PD9, Communication Converter RS485 Modbus RTU to Modbus TCP, 5-36VDC Supply
USB/RS485/Ethernet Comms as standard
Modbus TCP/RTU Protocols
5-36VDC Supply
Features :
1 RS485 Ports or 1 x Ethernet Port, 1 x USB service Port
Free user config software
Specification
Lumel Part Number
PD9
Functions
Communication Datalogger and Alarm Unit
Supply Voltage
5-36VDC
Protocols
TCP/RTU
Communication Ports
RS485Ethernet
RS485/RS232 Baud Rate
1200,2400,4800,9600,19200,38400,57600,115200 bit/s
USB Baud Rate
115200 bit/s
Ethernet Baud Rate
10,100 Mbit/s
Real Time Clock
1min/month (30ppm)
Isolation
3.5kV
Weight
250g
Factory Pack Qty
1
EU Directives
EN61000, EN61010
Safety
Protection Class II
Enclosure Material
PC/ABS non combustable-self-extinguishability, complying with UL 94 V-0
Enclosure Protection
IP20
Operating Temperature
-20 →+70 °C
Datasheet
User Manual
