Capacitor Duty Contactors

1301A.C09-20.0 + 1302A.C09-00.0, Capacitor Duty Contactor 240/480/600VAC @ 15, 20, 25 kVar, 200,000 Operations, AC-6B Capacitor duty contactors are designed to meet the requirements of capacitor duty applications. Contactors are fitted with a block of three auxiliary contacts connected in series with six quick discharge damping resistors, two per each phase. Peak current is limited to the value within the contactor making capacity. Features : Capacitor Duty Discharge Resistors Three-pole contactors Seven ratings from 12,5 kVAr to 60 kVAr IEC 60947-4-1 for AC-6b utilization category UL Approved Advantages : Conforms to utilization category AC-6b Saves costs of expensive replacement Long electrical life Reduces watt losses during “ON” condition, saves energy High safety No risk of dangerous voltage Switching of capacitor bank in parallel without de-rating Less maintenance and downtime Standard control voltages: 24 V 50/60 Hz, 220 V 50/60 Hz, 230 V 50/60 Hz, 415 V 50/60 Hz Specification Electronicon Part Number 1301A.C09-20.0 + 1302A.C09-00.0 Functions 3 Pole Capacitor Duty Contactor Nominal Voltage 230/480/600VAC @ 50Hz Current Carrying Capacity as per UL 15kVar/Amp @230VAC, 20kVar/Amp@480VAC, 25kVar/Amp@600VAC, AC-6B Auxiliary Contacts 1 x NO and 1 x NC Trip Delay Time 2-10ms Electrical Life 200,000 Ops Operating Temperature -25 to 40 Deg C Mechanical Operations 15,000,000 Ops Control Voltage 240VAC Power Dissipation 0.36W Approvals UL Standards IEC/EN 60947-4-1, AS/NZ 61009-1, AC-6B Weight 200g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

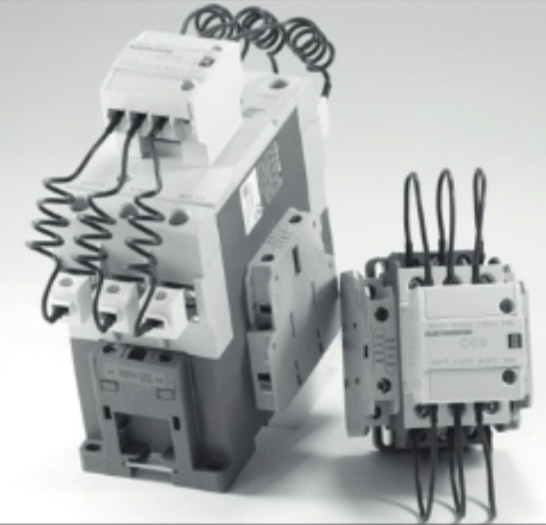

1301A.C09-25.0 + 1302A.C09-00.0, Capacitor Duty Contactor 240/480/600VAC @ 12.5, 25, 30 kVar, 200,000 Operations, AC-6B Capacitor duty contactors are designed to meet the requirements of capacitor duty applications. Contactors are fitted with a block of three auxiliary contacts connected in series with six quick discharge damping resistors, two per each phase. Peak current is limited to the value within the contactor making capacity. Features : Capacitor Duty Discharge Resistors Three-pole contactors Seven ratings from 12,5 kVAr to 60 kVAr IEC 60947-4-1 for AC-6b utilization category UL Approved Advantages : Conforms to utilization category AC-6b Saves costs of expensive replacement Long electrical life Reduces watt losses during “ON” condition, saves energy High safety No risk of dangerous voltage Switching of capacitor bank in parallel without de-rating Less maintenance and downtime Standard control voltages: 24 V 50/60 Hz, 220 V 50/60 Hz, 230 V 50/60 Hz, 415 V 50/60 Hz Specification Electronicon Part Number 1301A.C09-25.0 + 1302A.C09-00.0 Functions 3 Pole Capacitor Duty Contactor Nominal Voltage 230/480/600VAC @ 50Hz Current Carrying Capacity as per UL 12.5kVar/Amp @230VAC, 25kVar/Amp@480VAC, 30kVar/Amp@600VAC, AC-6B Auxiliary Contacts 1 x NO and 1 x NC Trip Delay Time 2-10ms Electrical Life 200,000 Ops Operating Temperature -25 to 40 Deg C Mechanical Operations 15,000,000 Ops Control Voltage 240VAC Power Dissipation 0.36W Approvals UL Standards IEC/EN 60947-4-1, AS/NZ 61009-1, AC-6B Weight 200g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

1301A.C09-50.0 + 1302A.C09-00.0, Capacitor Duty Contactor 240/480/600VAC @ 27, 50, 50 kVar, 100,000 Operations, AC-6B Capacitor duty contactors are designed to meet the requirements of capacitor duty applications. Contactors are fitted with a block of three auxiliary contacts connected in series with six quick discharge damping resistors, two per each phase. Peak current is limited to the value within the contactor making capacity. Features : Capacitor Duty Discharge Resistors Three-pole contactors Seven ratings from 12,5 kVAr to 60 kVAr IEC 60947-4-1 for AC-6b utilization category UL Approved Advantages : Conforms to utilization category AC-6b Saves costs of expensive replacement Long electrical life Reduces watt losses during “ON” condition, saves energy High safety No risk of dangerous voltage Switching of capacitor bank in parallel without de-rating Less maintenance and downtime Standard control voltages: 24 V 50/60 Hz, 220 V 50/60 Hz, 230 V 50/60 Hz, 415 V 50/60 Hz Specification Electronicon Part Number 1301A.C09-50.0 + 1302A.C09-00.0 Functions 3 Pole Capacitor Duty Contactor Nominal Voltage 230/480/600VAC @ 50Hz Current Carrying Capacity as per UL 27kVar/Amp @230VAC, 50kVar/Amp@480VAC, 50kVar/Amp@600VAC, AC-6B Auxiliary Contacts 1 x NO and 1 x NC Trip Delay Time 2-10ms Electrical Life 100,000 Ops Operating Temperature -25 to 40 Deg C Mechanical Operations 15,000,000 Ops Control Voltage 240VAC Power Dissipation 0.36W Approvals UL Standards IEC/EN 60947-4-1, AS/NZ 61009-1, AC-6B Weight 200g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

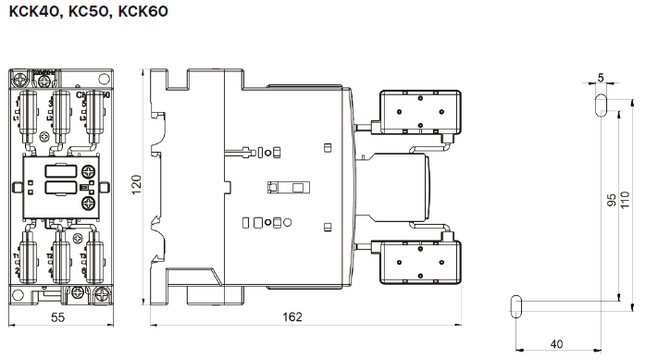

Iskra Doo KCK50-10-230-50, Capacitor Duty Contactor 600VAC @ 50 kVar, 100,000 Operations, AC-6B Capacitor duty contactors are designed to meet the requirements of capacitor duty applications. Contactors are fitted with a block of three auxiliary contacts connected in series with six quick discharge damping resistors, two per each phase. Peak current is limited to the value within the contactor making capacity. Features : Capacitor Duty Discharge Resistors Three-pole contactors Seven ratings from 16 kVAr to 75 kVAr IEC 60947-4-1 for AC-6b utilization category CE Approved Advantages : Conforms to utilization category AC-6b Saves costs of expensive replacement Long electrical life Reduces watt losses during “ON” condition, saves energy High safety No risk of dangerous voltage Switching of capacitor bank in parallel without de-rating Less maintenance and downtime Standard control voltages: 24 V 50/60 Hz, 220 V 50/60 Hz, 230 V 50/60 Hz, 415 V 50/60 Hz Specification Iskra Doo Part Number KCK50-10-230-50 Functions 3 Pole Capacitor Duty Contactor Nominal Voltage 230/480/600VAC @ 50Hz Current Carrying Capacity 50kVar@600VAC, AC-6B Auxiliary Contacts 1 x NO Trip Delay Time 2-10ms Electrical Life 100,000 Ops Operating Temperature -25 to 40 Deg C Mechanical Operations 1,000,000 Ops Control Voltage 230VAC Approvals EAC, CE Standards IEC/EN 60947-4-1, AC-6B Weight 1800g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

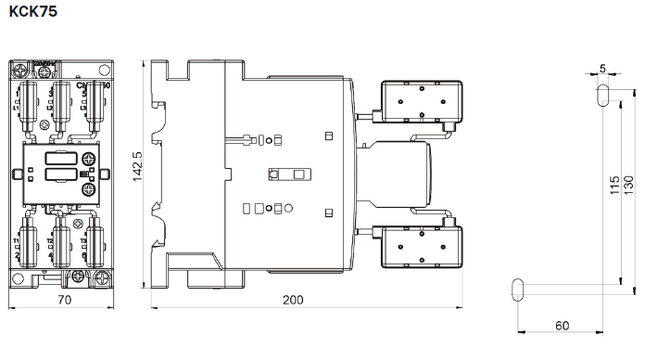

Iskra Doo KCK75-10-230-50, Capacitor Duty Contactor 600VAC @ 75kVar, 100,000 Operations, AC-6B Capacitor duty contactors are designed to meet the requirements of capacitor duty applications. Contactors are fitted with a block of three auxiliary contacts connected in series with six quick discharge damping resistors, two per each phase. Peak current is limited to the value within the contactor making capacity. Features : Capacitor Duty Discharge Resistors Three-pole contactors Seven ratings from 16 kVAr to 75 kVAr IEC 60947-4-1 for AC-6b utilization category CE Approved Advantages : Conforms to utilization category AC-6b Saves costs of expensive replacement Long electrical life Reduces watt losses during “ON” condition, saves energy High safety No risk of dangerous voltage Switching of capacitor bank in parallel without de-rating Less maintenance and downtime Standard control voltages: 24 V 50/60 Hz, 220 V 50/60 Hz, 230 V 50/60 Hz, 415 V 50/60 Hz Specification Iskra Doo Part Number KCK75-10-230-50 Functions 3 Pole Capacitor Duty Contactor Nominal Voltage 230/480/600VAC @ 50Hz Current Carrying Capacity 75kVar/Amp@600VAC, AC-6B Auxiliary Contacts 1 x NO Trip Delay Time 2-10ms Electrical Life 100,000 Ops Operating Temperature -25 to 40 Deg C Mechanical Operations 1,000,000 Ops Control Voltage 230VAC Approvals EAC, CE Standards IEC/EN 60947-4-1, AC-6B Weight 2200g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

Iskra Doo KCK33-10-230-50, Capacitor Duty Contactor 600VAC @ 33 kVar, 100,000 Operations, AC-6B Capacitor duty contactors are designed to meet the requirements of capacitor duty applications. Contactors are fitted with a block of three auxiliary contacts connected in series with six quick discharge damping resistors, two per each phase. Peak current is limited to the value within the contactor making capacity. Features : Capacitor Duty Discharge Resistors Three-pole contactors Seven ratings from 16 kVAr to 75 kVAr IEC 60947-4-1 for AC-6b utilization category CE Approved Advantages : Conforms to utilization category AC-6b Saves costs of expensive replacement Long electrical life Reduces watt losses during “ON” condition, saves energy High safety No risk of dangerous voltage Switching of capacitor bank in parallel without de-rating Less maintenance and downtime Standard control voltages: 24 V 50/60 Hz, 220 V 50/60 Hz, 230 V 50/60 Hz, 415 V 50/60 Hz Specification Iskra Doo Part Number KCK33-10-230-50 Functions 3 Pole Capacitor Duty Contactor Nominal Voltage 230/480/600VAC @ 50Hz Current Carrying Capacity 33kVar@600VAC, AC-6B Auxiliary Contacts 1 x NO Trip Delay Time 2-10ms Electrical Life 100,000 Ops Operating Temperature -25 to 40 Deg C Mechanical Operations 1,000,000 Ops Control Voltage 230VAC Approvals EAC, CE Standards IEC/EN 60947-4-1, AC-6B Weight 1800g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

Iskra Doo KCK25-10-230-50, Capacitor Duty Contactor 600VAC @ 25 kVar, 100,000 Operations, AC-6B Capacitor duty contactors are designed to meet the requirements of capacitor duty applications. Contactors are fitted with a block of three auxiliary contacts connected in series with six quick discharge damping resistors, two per each phase. Peak current is limited to the value within the contactor making capacity. Features : Capacitor Duty Discharge Resistors Three-pole contactors Seven ratings from 16 kVAr to 75 kVAr IEC 60947-4-1 for AC-6b utilization category CE Approved Advantages : Conforms to utilization category AC-6b Saves costs of expensive replacement Long electrical life Reduces watt losses during “ON” condition, saves energy High safety No risk of dangerous voltage Switching of capacitor bank in parallel without de-rating Less maintenance and downtime Standard control voltages: 24 V 50/60 Hz, 220 V 50/60 Hz, 230 V 50/60 Hz, 415 V 50/60 Hz Specification Iskra Doo Part Number KCK25-10-230-50 Functions 3 Pole Capacitor Duty Contactor Nominal Voltage 230/480/600VAC @ 50Hz Current Carrying Capacity 25kVar@600VAC, AC-6B Auxiliary Contacts 1 x NO Trip Delay Time 2-10ms Electrical Life 100,000 Ops Operating Temperature -25 to 40 Deg C Mechanical Operations 1,000,000 Ops Control Voltage 230VAC Approvals EAC, CE Standards IEC/EN 60947-4-1, AC-6B Weight 900g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

Iskra Doo KCK20-10-230-50, Capacitor Duty Contactor 600VAC @ 20 kVar, 100,000 Operations, AC-6B Capacitor duty contactors are designed to meet the requirements of capacitor duty applications. Contactors are fitted with a block of three auxiliary contacts connected in series with six quick discharge damping resistors, two per each phase. Peak current is limited to the value within the contactor making capacity. Features : Capacitor Duty Discharge Resistors Three-pole contactors Seven ratings from 16 kVAr to 75 kVAr IEC 60947-4-1 for AC-6b utilization category CE Approved Advantages : Conforms to utilization category AC-6b Saves costs of expensive replacement Long electrical life Reduces watt losses during “ON” condition, saves energy High safety No risk of dangerous voltage Switching of capacitor bank in parallel without de-rating Less maintenance and downtime Standard control voltages: 24 V 50/60 Hz, 220 V 50/60 Hz, 230 V 50/60 Hz, 415 V 50/60 Hz Specification Iskra Doo Part Number KCK20-10-230-50 Functions 3 Pole Capacitor Duty Contactor Nominal Voltage 230/480/600VAC @ 50Hz Current Carrying Capacity 20kVar@600VAC, AC-6B Auxiliary Contacts 1 x NO Trip Delay Time 2-10ms Electrical Life 100,000 Ops Operating Temperature -25 to 40 Deg C Mechanical Operations 1,000,000 Ops Control Voltage 230VAC Approvals EAC, CE Standards IEC/EN 60947-4-1, AC-6B Weight 900g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

Iskra Doo KCK16-10-230-50, Capacitor Duty Contactor 600VAC @ 16 kVar, 100,000 Operations, AC-6B Capacitor duty contactors are designed to meet the requirements of capacitor duty applications. Contactors are fitted with a block of three auxiliary contacts connected in series with six quick discharge damping resistors, two per each phase. Peak current is limited to the value within the contactor making capacity. Features : Capacitor Duty Discharge Resistors Three-pole contactors Seven ratings from 16 kVAr to 75 kVAr IEC 60947-4-1 for AC-6b utilization category CE Approved Advantages : Conforms to utilization category AC-6b Saves costs of expensive replacement Long electrical life Reduces watt losses during “ON” condition, saves energy High safety No risk of dangerous voltage Switching of capacitor bank in parallel without de-rating Less maintenance and downtime Standard control voltages: 24 V 50/60 Hz, 220 V 50/60 Hz, 230 V 50/60 Hz, 415 V 50/60 Hz Specification Iskra Doo Part Number KCK16-10-230-50 Functions 3 Pole Capacitor Duty Contactor Nominal Voltage 230/480/600VAC @ 50Hz Current Carrying Capacity 16kVar@600VAC, AC-6B Auxiliary Contacts 1 x NO Trip Delay Time 2-10ms Electrical Life 100,000 Ops Operating Temperature -25 to 40 Deg C Mechanical Operations 1,000,000 Ops Control Voltage 230VAC Approvals EAC, CE Standards IEC/EN 60947-4-1, AC-6B Weight 700g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

Iskra Doo KCK40-10-230-50, Capacitor Duty Contactor 600VAC @ 40 kVar, 100,000 Operations, AC-6B Capacitor duty contactors are designed to meet the requirements of capacitor duty applications. Contactors are fitted with a block of three auxiliary contacts connected in series with six quick discharge damping resistors, two per each phase. Peak current is limited to the value within the contactor making capacity. Features : Capacitor Duty Discharge Resistors Three-pole contactors Seven ratings from 16 kVAr to 75 kVAr IEC 60947-4-1 for AC-6b utilization category CE Approved Advantages : Conforms to utilization category AC-6b Saves costs of expensive replacement Long electrical life Reduces watt losses during “ON” condition, saves energy High safety No risk of dangerous voltage Switching of capacitor bank in parallel without de-rating Less maintenance and downtime Standard control voltages: 24 V 50/60 Hz, 220 V 50/60 Hz, 230 V 50/60 Hz, 415 V 50/60 Hz Specification Iskra Doo Part Number KCK40-10-230-50 Functions 3 Pole Capacitor Duty Contactor Nominal Voltage 230/480/600VAC @ 50Hz Current Carrying Capacity 40kVar@600VAC, AC-6B Auxiliary Contacts 1 x NO Trip Delay Time 2-10ms Electrical Life 100,000 Ops Operating Temperature -25 to 40 Deg C Mechanical Operations 1,000,000 Ops Control Voltage 230VAC Approvals EAC, CE Standards IEC/EN 60947-4-1, AC-6B Weight 1800g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less

Iskra Doo KCK60-10-230-50, Capacitor Duty Contactor 600VAC @ 60 kVar, 100,000 Operations, AC-6B Capacitor duty contactors are designed to meet the requirements of capacitor duty applications. Contactors are fitted with a block of three auxiliary contacts connected in series with six quick discharge damping resistors, two per each phase. Peak current is limited to the value within the contactor making capacity. Features : Capacitor Duty Discharge Resistors Three-pole contactors Seven ratings from 16 kVAr to 75 kVAr IEC 60947-4-1 for AC-6b utilization category CE Approved Advantages : Conforms to utilization category AC-6b Saves costs of expensive replacement Long electrical life Reduces watt losses during “ON” condition, saves energy High safety No risk of dangerous voltage Switching of capacitor bank in parallel without de-rating Less maintenance and downtime Standard control voltages: 24 V 50/60 Hz, 220 V 50/60 Hz, 230 V 50/60 Hz, 415 V 50/60 Hz Specification Iskra Doo Part Number KCK60-10-230-50 Functions 3 Pole Capacitor Duty Contactor Nominal Voltage 230/480/600VAC @ 50Hz Current Carrying Capacity 60kVar@600VAC, AC-6B Auxiliary Contacts 1 x NO Trip Delay Time 2-10ms Electrical Life 100,000 Ops Operating Temperature -25 to 40 Deg C Mechanical Operations 1,000,000 Ops Control Voltage 230VAC Approvals EAC, CE Standards IEC/EN 60947-4-1, AC-6B Weight 2000g Enclosure Material UL94 Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Discharge Resistor Usage Power Factor Correction Blog

Read more less
