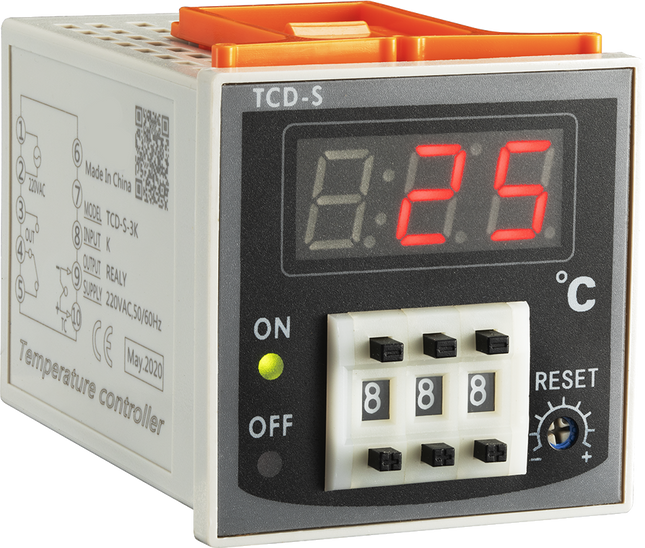

TCD-S-1-K HEATING Temp Controller, 48x48mm, 230VAC, C/O Relay output, Type K Input. Encoder Control,amp; Digital Display, 0-999 Deg C Pushbutton Encoder Setpoint 3-digit display (0.5s response) Drip-proof / Dust-proof IP66 (front panel only) Input signals can be converted to insulated ON/OFF Relay, output, Optional cooling or time proprtional versions output available Each unit needs just 75 mm depth panel space Specification Fastron Part Number TCD-S-1-K Control Output Relay 3A(Resistive), 1A(Inductive load cos Ѳ=0.4) Input Type K Thermocouple Control Mode Heating ON/OFF Control Control Range 0- 999 Deg C Mounting Style 48x48mm Panel Mount Supply Voltage 230VAC Termination Style Screw Sampling Time 50ms Weight 270g Factory Pack Qty 1   Datasheet TCD/TCR/FC5 Datasheet TCD/TCR User Manual

Read more less

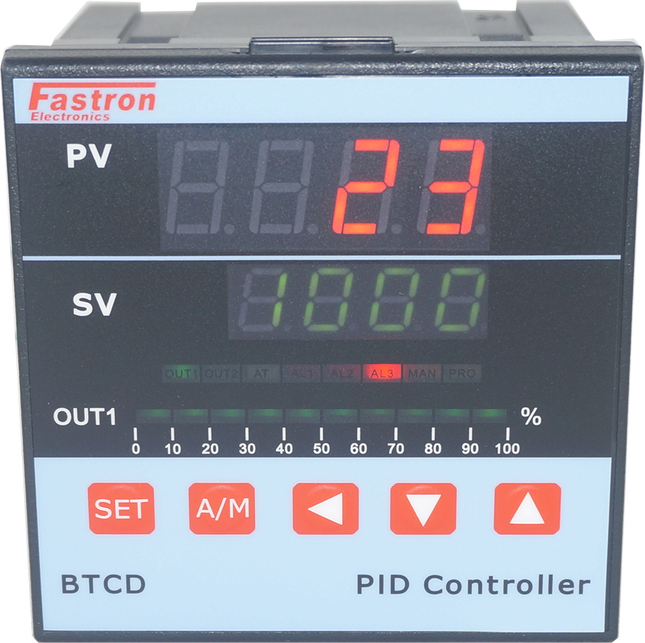

Fastron Electronics BTCD/A-M-A2-DA, PID Controller 96x96mm, 85-265VAC, 4-20mA output 2 Alarms, 4-20mA Cooling, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/A-M-A2-DA Control Output 4-20mA Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 2nd Alarm Option 2 4-20mA Cooling Mounting Style 96 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCD/A-M-A2-DA-TA, PID Controller 96x96mm, 85-265VAC, 4-20mA output 4-20mA Cooling Output, 2 Alarms, Retransmission, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/A-M-A2-DA-TA Control Output 4-20mA Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 2nd Alarm Option 2 4-20mA Cooling, 4-20mA Retransmission Mounting Style 96 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCD/A-M-A2-DR, PID Controller 96x96mm, 85-265VAC, 4-20mA output 2 Alarms, Relay Cooling, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/A-M-A2-DR Control Output 4-20mA Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 2nd Alarm Option 2 Relay Cooling Mounting Style 96 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCD/R-M-A2-DA, PID Controller 96x96mm, 85-265VAC, Relay Output 2 Alarms, 4-20mA Cooling, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/R-M-A2-DA Control Output Relay 3 Amp (Resitive) Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 2nd Alarm Option 2 4-20mA Cooling Mounting Style 96 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCD/A-M-A3-EI, PID Controller 96x96mm, 85-265VAC, 4-20mA output 3 Alarms, Event input (2xSV ), Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/A-M-A3-EI Control Output 4-20mA Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 2nd and 3rd Alarm Option 2 Event Input (2 x SV) Mounting Style 96 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCD/R-M-A3-EI, PID Controller 96x96mm, 85-265VAC, Relay Output 3 Alarms, Event input (2xSV ), Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/R-M-A3-EI Control Output Relay 3 Amp (Resistive) Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 2nd and 3rd Alarm Option 2 Event Input (2 x SV) Mounting Style 96 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCD/A-M-A2-C5, PID Controller 96x96mm, 85-265VAC, 4-20mA output 2 Alarms, RS485 Modbius Comms, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/S-M1-A2-DA Control Output SSR 24VDC @ 30mA Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 2nd Alarm Option 2 4-20mA Cooling Mounting Style 96 x 96mm Panel Mount Load Voltage Range 15-50VDC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCD/R-M-A2-DR-PROG, PID Pattern Controller 96x96mm, 85-265VAC, Relay Output 2 Alarms, Relay Cooling, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/R-M-A2-DR-PROG Control Output Relay 3 Amp (Resitive) Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 2nd Alarm Option 2 Relay Cooling, 2 x Step Patterns Mounting Style 96 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCD/S-M-A2-DA, PID Controller 96x96mm, 85-265VAC, SSR output 2 Alarms, 4-20mA Cooling, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/S-M-A2-DA Control Output SSR 24VDC @ 30mA Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 2nd Alarm Option 2 4-20mA Cooling Mounting Style 96 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCD/A-M1-A2-TA-EI, PID Controller 96x96mm, 15-50VDC, 4-20mA output, 2 Alarms, Retransmission, Event Input (2 x SV), Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/A-M1-A2-TA-EI Control Output 4-20mA Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 2nd Alarm Option 2 Event Input (2 x SV), 4-20mA Retransmission Mounting Style 96 x 96mm Panel Mount Load Voltage Range 15-50VDC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less

Fastron Electronics BTCD/A-M-A3-TA, PID Controller 96x96mm, 85-265VAC, 3 Alarms, Retransmission, Multirange TC/RTD/4-20mA Input 4-digit displays suit most industries including Temperature, Humidity, Pressure (0.5s response) Drip-proof / Dust-proof IP56 (front panel only) CE Approved Each unit needs just 80 mm depth panel space Optional Pattern Control Feature Specification Fastron Part Number BTCD/A-M-A2-DA-TA Control Output 4-20mA Input Multirange 4-20mA/RTD/Thermocouple (other linear inputs to be specified at time of order) Option 1 3rd Alarm Option 2 4-20mA Retransmission Mounting Style 96 x 96mm Panel Mount Load Voltage Range 100-240VAC Termination Style Screw Weight 600g Factory Pack Qty 1 CE Yes   Datasheet BTC Series Brochure BTC Series User Manual BTC Series RS485 Comms Manual Fine Tuning PID Adjustments

Read more less
