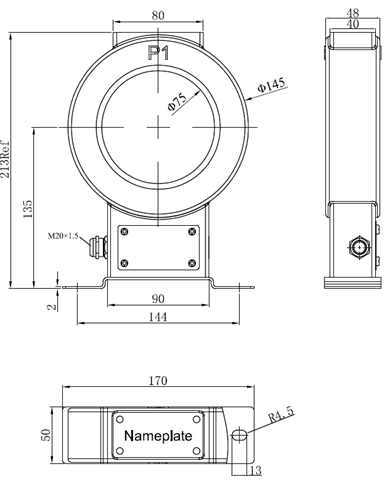

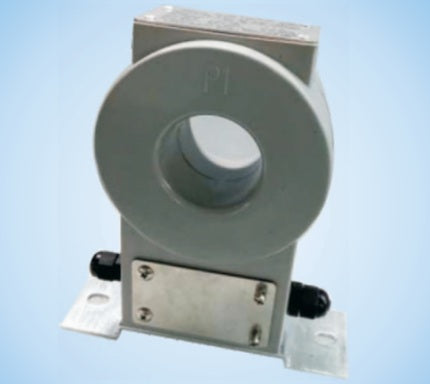

Fastron Electronics FCT3-0.72 1200/5 FS10 Class 0.2S, Solid Core, 1200/5 Class 0.2S, 10VA, FS10, Panel Mount, 75mm Aperture, IP65, Metering Class Current Transformer Features Metering Class / Solid Core  FS10 10VA ø 75mm Mounting Feet Supplied Self Powered Rated System Voltage 0.60/3kV Applications Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurement   Specification Fastron Electronics Part Number FCT3-0.72 1200/5 FS10 Class 0.2S Technology Split Core AC Current Transformer Ratio 1200/5A Aperture Size ø 75mm VA Rating 10VA Accuracy Class Class 0.2S Output 5 Amp (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Dimensions 180x138x52mm Mounting Style Panel Mount Operating Temperature Range -35°C / 55°C Continuous Current (max) 1200Amp x 1.2 Termination Style 10M Twisted Pair 0.34mm^2 Unit Weight 3000g Factory Pack Qty 1   Datasheet Product Datasheet Application Notes Installation Guide

Read more less

FP150125P/80mA, 1500/80mA Split Core CT, Class 0.5, 7.5VA, 80 x 120mm Aperture, Dimensions 145 x 37 x 200mm Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Electronics Part Number FP150125P/80mA Technology Split Core AC Clip On Current Transformer Ratio 1500/80mA Aperture Size 85 x 120mm VA Rating 7.5VA Accuracy Class Class 0.5 Output 80mA Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10°C / 50°C Continuous Current (max) 1500Amp x 1.2 Termination Style Screw Approvals CE Unit Weight 1150g Factory Pack Qty 1   Datasheet Product Datasheet Installation Guide

Read more less

Xmer CT Split 93/30SC 250/5 Class 1 3.75VA, 23 x 33mm Aperture Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number Xmer CT Split 93/30SC 250/5 Class 1 3.75VA Technology Split Core AC Current Transformer Ratio 250/5 Aperture Size 23 x 33mm VA Rating 3.75VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 200Amp x 1.2 Termination Style Screw Unit Weight 600g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

Xmer CT Split 93/30SC 150/5 Class 1 1.75VA, 23 x 33mm Aperture Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number Xmer CT Split 93/30SC 150/5 Class 1 1.75VA Technology Split Core AC Current Transformer Ratio 150/5 Aperture Size 23 x 33mm VA Rating 1.75VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 150Amp x 1.2 Termination Style Screw Unit Weight 600g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

Xmer CT Split 93/30SC 100/5 Class 1 1.5VA, 23 x 33mm Aperture Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number Xmer CT Split 93/30SC 100/5 Class 1 1.5VA Technology Split Core AC Current Transformer Ratio 100/5 Aperture Size 23 x 33mm VA Rating 1.5VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 100Amp x 1.2 Termination Style Screw Unit Weight 600g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

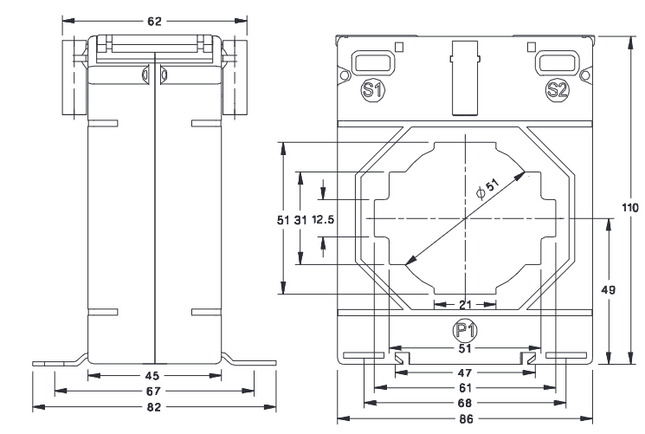

Rishabh CT 600/5 Class 0.5 15VA 86/60 (45), Current Transformer 600/5Amp CT 15VA, Class 0.5 Features DIN Rail Mounting Clip Included Built In Sealable Terminal Covers Mounting Feet Supplied Narrow Width (45mm) Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number CT 600/5 Class 0.5 15VA 86/60 (45) Technology AC Current Transformer Ratio 600/5 Aperture Size 51mm or 12.5x61mm Busbar VA Rating 15VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Moun Operating Temperature Range -30°C / 85°C Continuous Current (max) 400Amp x 1.2 Termination Style Screw Unit Weight 800g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

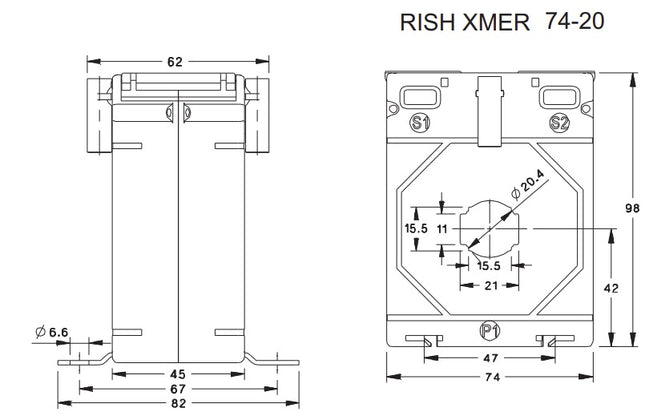

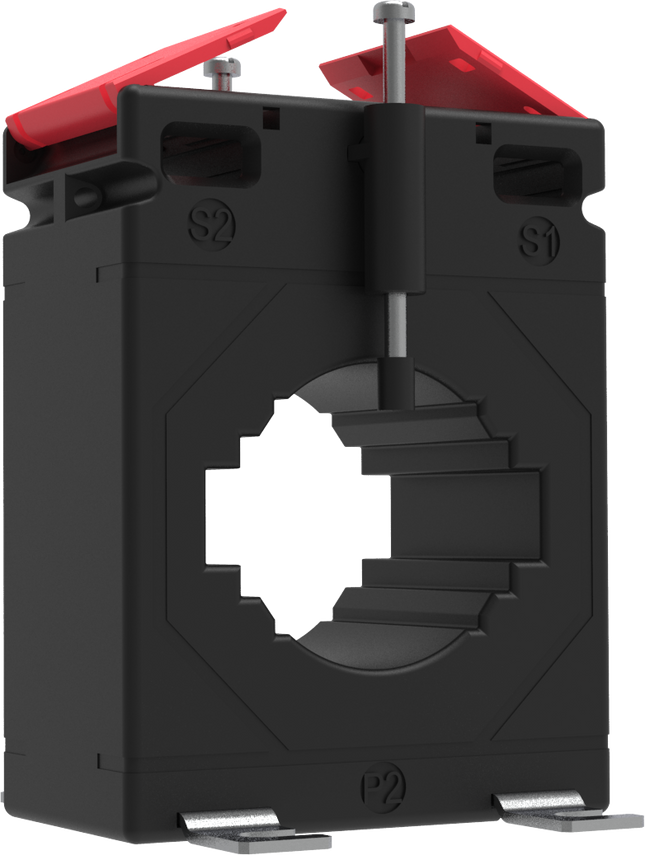

Rish Xmer 74-20 (45) 100/5 Class 1 7.5VA, 21mm Aperture Features High Accuravcy Class 0.2S Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number Rish Xmer 74-20 (45) 100/5 Class 1 7.5VA Technology AC Current Transformer Ratio 100/5 Aperture Size 21x11mm VA Rating 1.5VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -25°C / 40°C Continuous Current (max) Ipn x 1.2 Termination Style Screw Unit Weight 500g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

Rishabh CT 200/5 Class 1 15VA 62/30 (50), Current Transformer 300/5Amp CT, Class 0.5, 28mm Aperture or 10x30mm Busbar Features DIN Rail Mounting Clip Included Built In Sealable Terminal Covers Mounting Feet Supplied Narrow Width (45mm) Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number CT 200/5 Class 1 15VA 62/30 (50) Technology AC Current Transformer Ratio 200/5 Aperture Size 28mm or 10x30mm Busbar VA Rating 15VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 200Amp x 1.2 Termination Style Screw Unit Weight 300g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less
