FP075080P, 750/5 Amp Split Core CT, Class 1, 2.5VA Series Clip On Current Transformer Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number FP075080P Technology Split Core AC Clip On Current Transformer Ratio 750/5 Aperture Size 50 x 80mm VA Rating 2.5VA Accuracy Class Class 0.5 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10°C / 50°C Continuous Current (max) 750Amp x 1.2 Termination Style Screw Approvals CE Unit Weight 1150g Factory Pack Qty 1   Datasheet Product Datasheet Installation Guide

Read more less

FRC-10-B10, AC Current Transducer, 10 Amp average RMS measurement, 0-10VDC output, 2% Accuracy, 14mm Aperture, or 3.5 x 15.5mm busbar, Self Powered, Panel Mount Compact and low cost olid Core AC current sensor, selectable 10 Amp Average RMS 0-10 V output Features Solid Core Average RMS output 0-10V voltage output Self Powered Busbar, or panel mounting Isolated plastic case recognised according to UL94-V0 Advantages Large aperture for cable up to ⌀14mm High isolation between primary and secondary circuits Easy installation DIN Rail Kit available Applications -Automation Systems Analogue current reading for remote monitoring (e.g. Motor) -Data Loggers Self Powered. Will nto drain data logger batteries -Panel Meters Simple connection displays power consumption Specification LEM Part Number FRC-10-B10 Technology AC Current Transformer with Process Output ROHS Yes Supply Voltage Self Powered Nominal Current (RMS + DC) 10 Amp Maximum Measurement Current (Peak) 12 Amp Output 0-10V Average RMS Aperture ⌀14mm, or 3.5 x 15.5mm busbar Isolation 6kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount Operating Temperature Range -40°C / 85°C Accuracy 1% Termination Style Molex Unit Weight 65g Factory Pack Qty 6   Datasheet Product Datasheet

Read more less

Xmer CT Split 93/30SC 200/5 Class 1 2.5VA, 23 x 33mm Aperture Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number Xmer CT Split 93/30SC 200/5 Class 1 2.5VA Technology Split Core AC Current Transformer Ratio 200/5 Aperture Size 23 x 33mm VA Rating 2.5VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 200Amp x 1.2 Termination Style Screw Unit Weight 600g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

FP120125P/0.333V, 1200A/0.333V Split Core CT, Class 0.5, 80 x 120mm Aperture, Dimensions 145 x 37 x 200mm Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Electronics Part Number FP120125P/0.333V Technology Split Core AC Clip On Current Transformer Ratio 1200/0.333V Aperture Size 85 x 120mm VA Rating N/A Accuracy Class Class 0.5 Output 0.333V AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10°C / 50°C Continuous Current (max) 1200Amp x 1.2 Termination Style Screw Approvals CE Unit Weight 1150g Factory Pack Qty 1   Datasheet Product Datasheet Installation Guide

Read more less

Xmer CT Split 125/50SC 400/5 Class 1 3.75VA, 55 x 85mm Aperture Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Rishabh Part Number Xmer CT Split 125/50SC 400/5 Class 1 3.75VA Technology Split Core AC Current Transformer Ratio 400/5 Aperture Size 55 x 85mm VA Rating 3.75VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 400Amp x 1.2 Termination Style Screw Unit Weight 1.25kg Factory Pack Qty 9 Datasheet Product Datasheet

Read more less

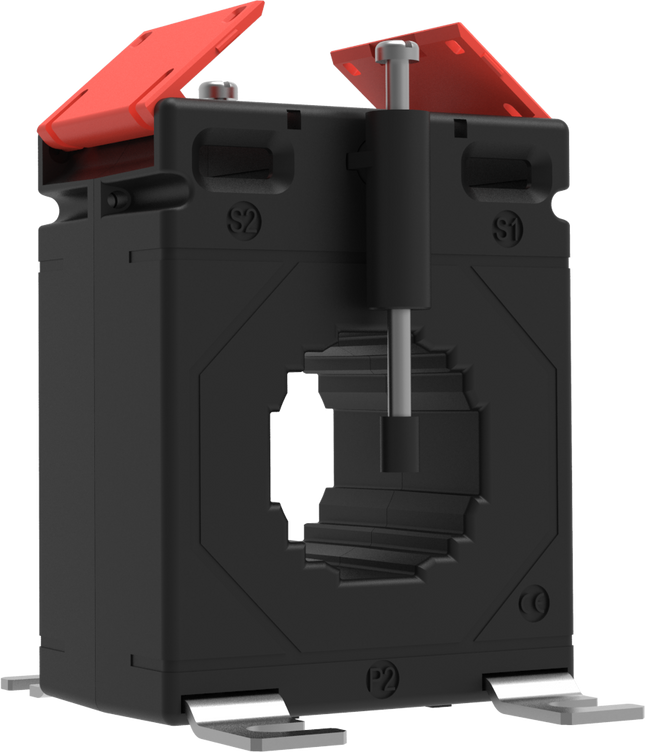

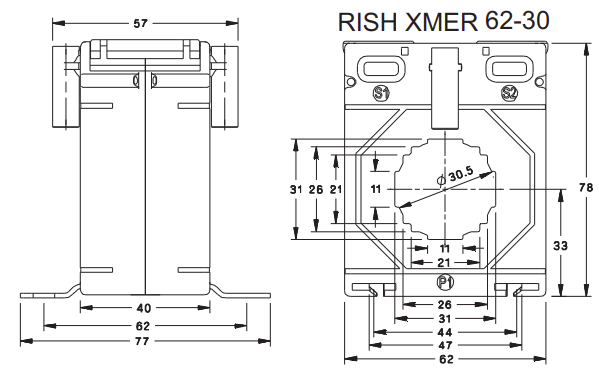

Rish Xmer 62-30 (40) 600/5 Class 0.2S, 6.25VA, 31mm Aperture Features High Accuracy Class 0.2S Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number Rish Xmer 62-30 (40) 600/5 Class 0.2S Technology AC Current Transformer Ratio 600/5 Aperture Size 31x11mm (30mm) VA Rating 6.25VA Accuracy Class Class 0.2S Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -25°C / 40°C Continuous Current (max) Ipn x 1.2 Termination Style Screw Unit Weight 500g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

FP020030P/1A, 200/1 Amp Split Core CT, Class 0.5 1.5VA Clip On AC Current Transformer, 20 x 30mm Aperture, Dimension 90 x 40 x 110mm Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Fastron Part Number FP020030P/1A Technology Split Core AC Clip On Current Transformer Ratio 200/1 Aperture Size 20 x 30mm VA Rating 1.5VA Accuracy Class Class 1 Output 1 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10°C / 50°C Continuous Current (max) 200Amp x 1.2 Termination Style Screw Approvals CE Unit Weight 1150g Factory Pack Qty 1   Datasheet Product Datasheet Installation Guide

Read more less

Rishabh CT 120/5 Class 0.5 2.5VA 50/21 (30) Series Current Transformer Features DIN Rail Mounting Clip Included Built In Sealable Terminal Covers Mounting Feet Supplied Narrow Width (30mm) Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number CT 120/5 Class 0.5 2.5VA 50/21 (30) Technology AC Current Transformer Ratio 120/5 Aperture Size ⌀ 21mm or 20x10mm Busbar VA Rating 2.5VA Accuracy Class Class 0.5 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 120Amp x 1.2 Termination Style Screw Unit Weight 300g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

Rishabh CT 200/5 Class 0.5 10VA 62/30 (50), Current Transformer 200/5Amp CT, Class 0.5, 28mm Aperture or 10x30mm Busbar Features DIN Rail Mounting Clip Included Built In Sealable Terminal Covers Mounting Feet Supplied Narrow Width (45mm) Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number CT 200/5 Class 0.5 10VA 62/30 (50) Technology AC Current Transformer Ratio 200/5 Aperture Size 28mm or 10x30mm Busbar VA Rating 10VA Accuracy Class Class 0.5 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 200Amp x 1.2 Termination Style Screw Unit Weight 300g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

Rishabh CT 150/5 Class 0.5 3.75VA 62/30 (40) Series Current Transformer Features DIN Rail Mounting Clip Included Built In Sealable Terminal Covers Mounting Feet Supplied Narrow Width (45mm) Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number CT 150/5 Class 0.5 3.75VA 62/30 (40) Technology AC Current Transformer Ratio 150/5 Aperture Size ⌀ 30mm or 26x10mm Busbar VA Rating 3.75VA Accuracy Class Class 0.5 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 150Amp x 1.2 Termination Style Screw Unit Weight 300g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less

Rishabh CT 200/5 Class 1 15VA 86/40 (45), Current Transformer 300/5Amp CT 15VA HIGH BURDEN, Class 0.5, 36mm Aperture or 11x41mm Busbar Features DIN Rail Mounting Clip Included Built In Sealable Terminal Covers Mounting Feet Supplied Narrow Width (45mm) Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements   Specification Rishabh Part Number CT 200/5 Class 1 15VA 86/40 (45) Technology AC Current Transformer Ratio 200/5 Aperture Size 36mm or 11x41mm Busbar VA Rating 15VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 200Amp x 1.2 Termination Style Screw Unit Weight 300g Factory Pack Qty 9   Datasheet Product Datasheet

Read more less
