Current Transformers Australia
-

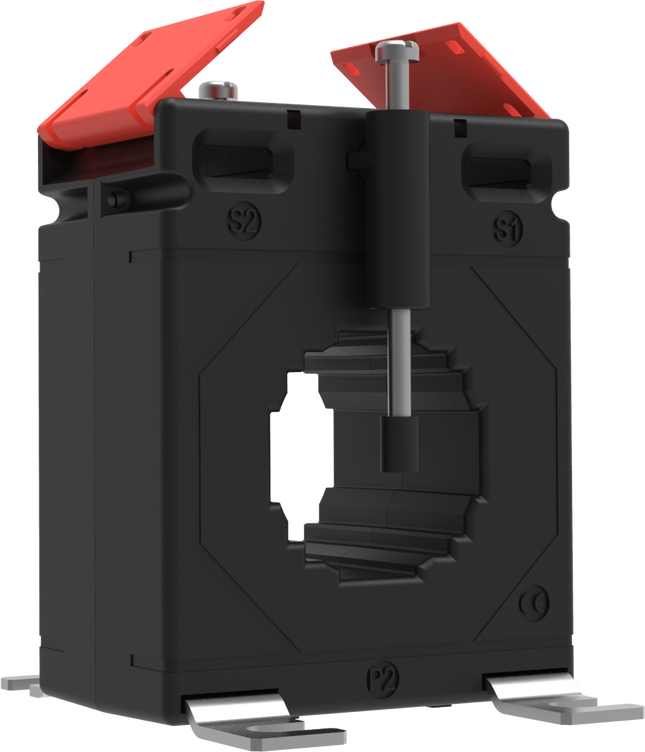

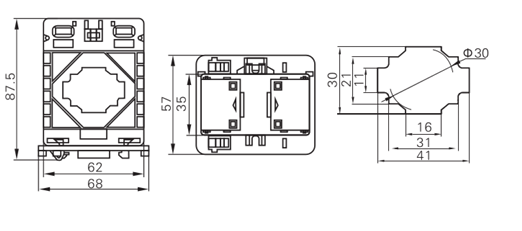

CP 62/40 600/1 5 VA Class 1, 600/1Amp, 31mm Aperture, or 11 x 41mm Busbar
CP 62/40 600/1 5 VA Class 1, 600/1Amp, 31mm Aperture, or 11 x 41mm Busbar Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements  Specification Fastron Part Number CP 62/40 600/1 5 VA Class 1 Technology AC Current Transformer Ratio 600/1 Aperture Size 41x11mm (30mm) VA Rating 5VA Accuracy Class Class 0.2S Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -25°C / 40°C Continuous Current (max) Ipn x 1.2 Termination Style Screw Unit Weight 500g Factory Pack Qty 9  Datasheet Product Datasheet
$59.00
$69.62 inclGST -

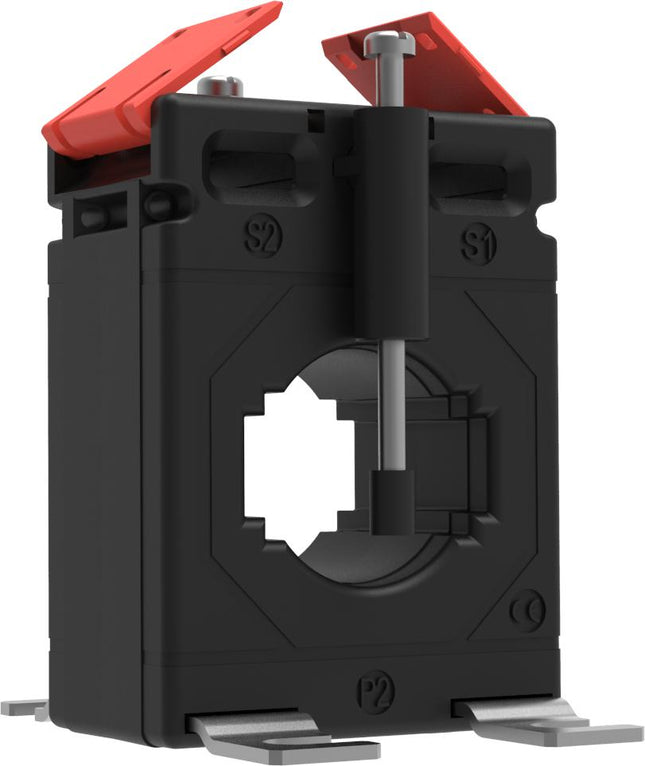

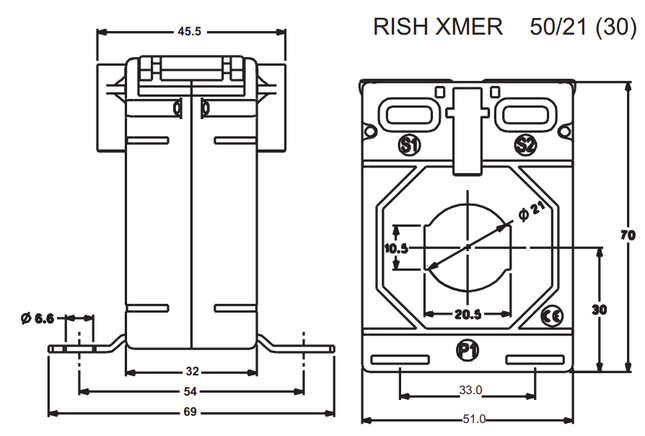

CT 150/5 Class 1 10VA 50/21 (50) Current Transformer
Rishabh CT 150/5 Class 1 10VA 50/21 (50) Current Transformer Features DIN Rail Mounting Clip Included Built In Sealable Terminal Covers Mounting Feet Supplied Narrow Width (45mm) Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements Specification Rishabh Part Number CT 150/5 Class 1 10VA 50/21 (50) Technology AC Current Transformer Ratio 150/5 Aperture Size ⌀ 21mm or 20x10mm Busbar VA Rating 10VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) Ipn x 1.2 Termination Style Screw Unit Weight 300g Factory Pack Qty 9 Datasheet Product Datasheet
$59.00
$69.62 inclGST -
Rish Xmer 86-60 (45) 1200/5 Class 1, 30VA ⌀ 51mm or 61 x 12mm Busbar
Rishabh Rish Xmer 86-60 (45) 1200/5 Class 1 30VA Series Current Transformer Features Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements  Specification Rishabh Part Number Rish Xmer 86-60 (45) 1200/5 Class 1 Technology AC Current Transformer Ratio 1200/5 Aperture Size ⌀ 46mm or 61 x 12mm Busbar VA Rating 30VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 1200Amp x 1.2 Termination Style Screw Unit Weight 0.9kg Factory Pack Qty 9  Datasheet Product Datasheet
$89.20
$105.26 inclGST -
FP020080P/66.66mA, 200/66.66mAmp Split Core CT, Class 1, 1.5VA Clip On AC Current Transformer, 50 x 80mm Aperture, Dimension 145 x 159 x 37mm
FP020080P/66.66mA, 200/66.66mAmp Split Core CT, Class 1, 1.5VA Clip On AC Current Transformer, 50 x 80mm Aperture, Dimension 145 x 159 x 37mm Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements  Specification Fastron Part Number FP020080P/66.66mA Technology Split Core AC Clip On Current Transformer Ratio 200/1 Aperture Size 50 x 80mm VA Rating 1.5VA Accuracy Class Class 1 Output 1 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -10°C / 50°C Continuous Current (max) 200Amp x 1.2 Termination Style Screw Approvals CE Unit Weight 1150g Factory Pack Qty 1  Datasheet Product Datasheet Installation Guide Â
$112.00
$132.16 inclGST -
CT 50/5 Class 1 1.5VA 86/40 (45), Current Transformer 300/5Amp CT 1.5VA WIDE APERTURE, Class 0.5, 36mm Aperture or 11x45mm Busbar
Rishabh CT 50/5 Class 1 1.5VA 86/40 (45), Current Transformer 300/5Amp CT 1.5VA WIDE APERTURE, Class 0.5, 36mm Aperture or 11x45mm Busbar Features DIN Rail Mounting Clip Included Built In Sealable Terminal Covers Mounting Feet Supplied Narrow Width (45mm) Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements  Specification Rishabh Part Number CT 50/5 Class 1 1.5VA 86/40 (45) Technology AC Current Transformer Ratio 50/5 Aperture Size 36mm or 11x41mm Busbar VA Rating 1.5VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Din Rail Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 50Amp x 1.2 Termination Style Screw Unit Weight 300g Factory Pack Qty 9  Datasheet Product Datasheet Â
$66.70
$78.71 inclGST -
Xmer CT Split 125/50SC 800/5 Class 1 10VA, 55 x 85mm Aperture
Xmer CT Split 125/50SC 800/5 Class 1 10VA, 55 x 85mm Aperture Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements  Specification Rishabh Part Number Xmer CT Split 125/50SC 800/5 Class 1 10VA Technology Split Core AC Current Transformer Ratio 800/5 Aperture Size 55 x 85mm VA Rating 10VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 600Amp x 1.2 Termination Style Screw Unit Weight 1.25kg Factory Pack Qty 9  Datasheet Product Datasheet
$155.00
$182.90 inclGST -
Xmer CT Split 125/50SC 1000/5 Class 0.5 10VA, 55 x 85mm Aperture
Xmer CT Split 125/50SC 1000/5 Class 0.5 10VA, 55 x 85mm Aperture Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements  Specification Rishabh Part Number Xmer CT Split 125/50SC 600/5 Class 1 10VA Technology Split Core AC Current Transformer Ratio 600/5 Aperture Size 55 x 85mm VA Rating 10VA Accuracy Class Class 0.5 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 600Amp x 1.2 Termination Style Screw Unit Weight 1.25kg Factory Pack Qty 9  Datasheet Product Datasheet
$155.00
$182.90 inclGST -
Xmer CT Split 105/50SC 600/5 Class 1 7.5VA, 43 x 55mm Aperture
Xmer CT Split 105/50SC 600/5 Class 1 7.5VA, 43 x 55mm Aperture Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements  Specification Rishabh Part Number Xmer CT Split 105/50SC 600/5 Class 1 7.5VA Technology Split Core AC Current Transformer Ratio 600/5 Aperture Size 43 x 55mm VA Rating 7.5VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 600Amp x 1.2 Termination Style Screw Unit Weight 800g Factory Pack Qty 9  Datasheet Product Datasheet
$178.90
$211.10 inclGST -
Xmer CT Split 105/50SC 500/5 Class 1 5VA, 43 x 55mm Aperture
Xmer CT Split 105/50SC 500/5 Class 1 5VA, 43 x 55mm Aperture Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements  Specification Rishabh Part Number Xmer CT Split 105/50SC 500/5 Class 1 5VA Technology Split Core AC Current Transformer Ratio 400/5 Aperture Size 43 x 55mm VA Rating 5VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 500Amp x 1.2 Termination Style Screw Unit Weight 800g Factory Pack Qty 9  Datasheet Product Datasheet
$89.00
$105.02 inclGST -
Xmer CT Split 105/50SC 400/5 Class 1 5VA, 43 x 55mm Aperture
Xmer CT Split 105/50SC 400/5 Class 1 5VA, 43 x 55mm Aperture Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements  Specification Rishabh Part Number Xmer CT Split 105/50SC 400/5 Class 1 5VA Technology Split Core AC Current Transformer Ratio 400/5 Aperture Size 43 x 55mm VA Rating 5VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 400Amp x 1.2 Termination Style Screw Unit Weight 800g Factory Pack Qty 9  Datasheet Product Datasheet
$178.89
$211.09 inclGST -
Xmer CT Split 105/50SC 300/5 Class 1 5VA, 43 x 55mm Aperture
Xmer CT Split 105/50SC 300/5 Class 1 3.75VA, 43 x 55mm Aperture Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements  Specification Rishabh Part Number Xmer CT Split 105/50SC 200/5 Class 1 3.75VA Technology Split Core AC Current Transformer Ratio 300/5 Aperture Size 43 x 55mm VA Rating 5VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 300Amp x 1.2 Termination Style Screw Unit Weight 800g Factory Pack Qty 9  Datasheet Product Datasheet
$89.00
$105.02 inclGST -
Xmer CT Split 105/50SC 200/5 Class 1 3.75VA, 43 x 55mm Aperture
Xmer CT Split 105/50SC 200/5 Class 1 3.75VA, 43 x 55mm Aperture Features Quick Release Split Core System Built In Sealable Terminal Covers Mounting Feet Supplied Self Powered Rated System Voltage 0.72/3kV IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1 Applications Metering Equipment Energy Monitoring AC Power Control Systems Power Factor Correction Power Quality Measurements  Specification Rishabh Part Number Xmer CT Split 105/50SC 200/5 Class 1 3.75VA Technology Split Core AC Current Transformer Ratio 200/5 Aperture Size 43 x 55mm VA Rating 3.755VA Accuracy Class Class 1 Output 5 Amp AC (+20%) Isolation 3kV (AC, 50Hz, 1 min) Bandwidth 50-60Hz Mounting Style Panel Mount/Busbar Mount Operating Temperature Range -30°C / 85°C Continuous Current (max) 200Amp x 1.2 Termination Style Screw Unit Weight 800g Factory Pack Qty 9  Datasheet Product Datasheet
$89.00
$105.02 inclGST
