LEM Sensor Bipolar Power Supply Connections
LEM Hall Effect Sensor Bipolar Power Supply Connections

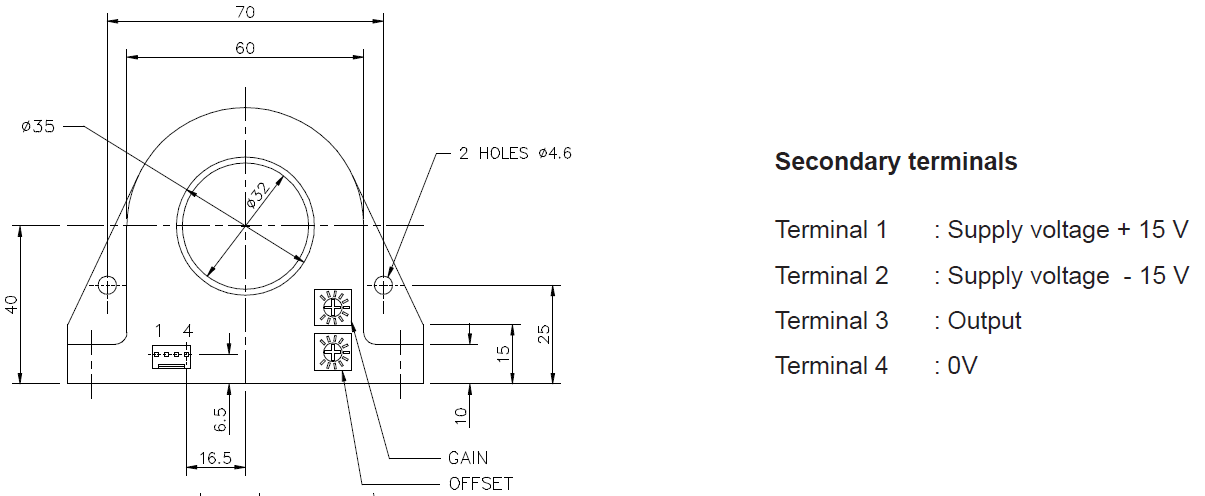

LEM and Magnelab Hall Effect Sensors often require a Bipolar Power Power Supply. While a limited range of Bipolar Power Supplies are available in the market, the lowest cost solution is to use two Isolated Power Supplies such as Meanwell Isolated Unipolar Power Supply. You can download our wring diagram for Bipolar power supplly connections
Scroll down to see our range of Fastron Bipolar Power Supplies
Unipolar Isolated Power Supplies |
Specification |
Universal Input Voltage Range 85-264VAC/124-370VDC |
HDR-15-5HDR-15-12HDR-15-15HDR-15-24HDR-15-48 |
5V, 2.4 Amp, 12W @ 50 Deg C Ambient12V, 1.25 Amp, 15W @ 50 Deg C Ambient15V, 1 Amp, 15W @ 50 Deg C Ambient24V, 0.63 Amp, 15.2W @ 50 Deg C Ambient48V, 0.63 Amp, 15.2W @ 50 Deg C Ambient |
 |
EDR-120-12EDR-120-24EDR-120-48 |
12V, 10 Amp, 120W @ 40 Deg C Ambient24V, 5 Amp, 120W @ 40 Deg C Ambient48V, 2.5 Amp, 120W @ 40 Deg C Ambient |
 |
SDR-240-24SDR-240-48 |
24V, 10 Amp, 240W @ 60 Deg C Ambient48V, 5 Amp, 240W @ 60 Deg C Ambient |
 |
LPV-20-5LPV-20-12LPV-20-15LPV-20-24 |
5V, 3 Amp, 15W @ 60 Deg C Ambient12V, 1.67 Amp, 20W @ 60 Deg C Ambient25V, 1.33 Amp, 20W @ 60 Deg C Ambient24V, 0.84 Amp, 20.2W @ 60 Deg C Ambient |
 |
OEM Power Supplies
Universal Input Voltage Range 85-264VAC/124-370VDC |
||
PD-2515 |
+15/0/-15VDC Bioplar Output @ 0.8 Amp Each Channel |
 |
Input Voltage Ranges 24VAC/DC, 110VAC, 240VAC, 415VAC 85-264VAC/124-370VDC |
||
F912-24, F912-110, F912-240, F912-415 |
24VAC/DC, 110VAC, 240VAC, 415VAC @ 160mA |
 |
Input Voltage Ranges 9-36VDC, 18-72VDC |
||
F920/921-A-XX-XX |
+/-15VDC @ 200mA, Optional Trandsucer and Trip Function |
 |
Input Voltage Ranges 100-240VAC, 12-48VDC (TBC) |
||
F710-XX-XX (Under Development) |
12/15/24VDC Bipolar Output,Optional Trip |
 |
Connecting two Unipolar power supplies as a single Bipolar Power Supply
GPO Plug Pack Power Supplies
SX2R Series |
12VDC @ 1 Amp, 2.5mm Negative Polarity (others available on request) |
 |
