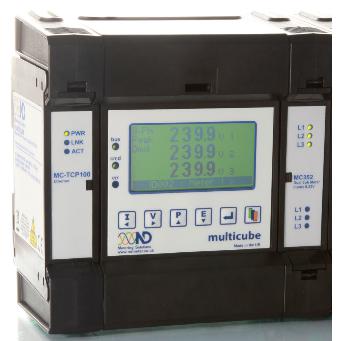

Northern Design Part Number	Multicube Modular RS485 Comms Module
Functions	kWh Meter, Energy Meter, Power Quality
Supply Voltage	240VAC < 15VA
Nominal Measurement Range	415V L-L 240V L-N, 0.333V
Maximum Measurement Range	480V L-L 280V L-N, 0.383V
Display	Graphic LCD
Pulse Output	12 (Optional)
Accuracy	Class 1 (kW,kWh) Class 1(Active), Class 2 Reactive
Ethernet	Optional
Real Time Clock	1min/month (30ppm)
Isolation	2.11kV
RS232/RS485	2400-19200 b/s
Weight	175g
Certification	EN 61010-1 Installation Category III
Factory Pack Qty	1
Environment	IP54
Safety	Protection Class II
Enclosure Material	ABS with fire protection to UL94-V-O. Self extinguishing
EnclosureSize	164 x 96mm x 29mm
Terminals	Rising Cage 4mm² (12 AWG) cable max
Humidity	< 75% Non Condensing
Operating Temperature	-20 →+70 °C

• Product brochure
• User manual
• Wiring Diagram

• Split Core CT's
