Multicube Modular Digital Output Module
Rated 3.5/5 based on 11 customer reviews

Multicube Modular Digital Output Module

  • Order within

Free Shipping for $300 Spend

Available: Backorder 4-5 Weeks
$239.00
$262.90inclGST

Free Shipping for $300 Spend

Compare

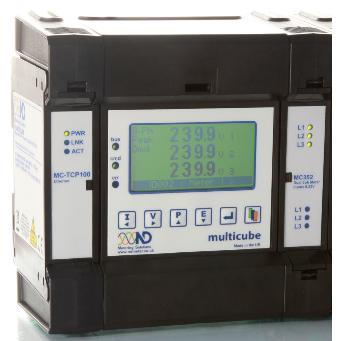

Northern Design Multicube Modular Digital Output Module



The meter is intended for measuring, analysing and monitoring single-phase or three-phase electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, reactive power, power factor, harmonics, etc.) from the measured signals.



Features :

  • Dual 3 phase Measurement Module
  • 2 x 3 Phase or 6x Single Phase Circuits
  • Accuracy class 1

  • Simple Menu
  • Optional MODBUS RTU RS485 communication up to 19,200 bit/s or Ethernet communication
  • 5 Year Warranty
  • 240V AC power supply

    Northern Design Multicube Modular Digital Output Module



    The meter is intended for measuring, analysing and monitoring single-phase or three-phase electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, reactive power, power factor, harmonics, etc.) from the measured signals.



    Features :

    • Dual 3 phase Measurement Module
    • 2 x 3 Phase or 6x Single Phase Circuits
    • Accuracy class 1

    • Simple Menu
    • Optional MODBUS RTU RS485 communication up to 19,200 bit/s or Ethernet communication
    • 5 Year Warranty
    • 240V AC power supply
      Northern Design Part Number Multicube Modular Master
      Functions kWh Meter, Energy Meter, Power Quality
      Supply Voltage 240VAC < 15VA
      Nominal Measurement Range 415V L-L 240V L-N, 0.333V
      Maximum Measurement Range 480V L-L 280V L-N, 0.383V
      Display Graphic LCD
      Pulse Output 12 (Optional)
      Accuracy Class 1 (kW,kWh)  Class 1(Active), Class 2 Reactive
      Ethernet Optional
      Real Time Clock 1min/month (30ppm)
      Isolation 2.11kV
      RS232/RS485 N/A (Optional 2400-19200 b/s)
      Weight 150g
      Certification EN 61010-1 Installation Category III
      Factory Pack Qty 1
      Environment



       IP54



      Safety

      Protection Class II

      Enclosure Material ABS with fire protection to UL94-V-O. Self extinguishing
      EnclosureSize 164 x 96mm x 29mm



      Terminals Rising Cage 4mm² (12 AWG) cable max
      Humidity < 75% Non Condensing
      Operating Temperature -20 →+70 °C
