V510E60, Varistor, 460VAC, 615VDC, E60 Package, 1650W
Rated 3.5/5 based on 11 customer reviews

V510E60, Varistor, 460VAC, 615VDC, E60 Package, 1650W

  • Order within

Free Shipping for $300 Spend

Available: 6pcs in stock , more available in 4-6 Weeks
$149.75
$164.73inclGST

Free Shipping for $300 Spend

Wishlist Compare

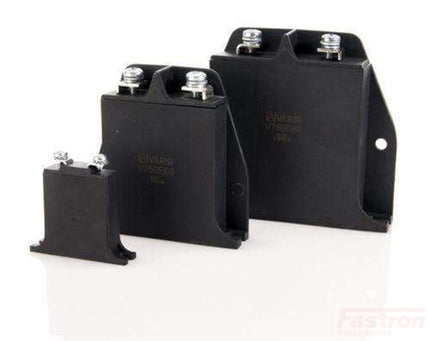

Varsi V510E60 Series Metal Oxide Varistor (MOV)

  • High Energy Absorption Rating
  • Industry Standard Package
  • Wide Operating Range 35 - 1100VAC
  • High Peak Current Capability (70kA)
  • UL/CSA/ROHS/ISO9001:2015 Approved
  • Panel Mount
  • Screw Terminals

APPLICATION AREAS:

1. Railways and trams: For the protection of electrical equipment, power electronics (IGBT, thyristors...) in systems with alternating, direct or combined AC + DC power supply, especially in power supply of AC/DC, DC/AC, DC/DC converters. They may be used in systems with main and auxiliary power supply for example: automatic control and regulation systems, cooling systems, warming systems, ventilation systems, and combination systems (electromechanical, electropneumatic and other systems).

2. Wind powerplants For protection of automatic control and regulation in power electronics (IGTB, tyristors...), as well as the protection of sensitive electronic systems (e. g. AC/DC, DC/AC, DC/DC converters, drive systems) from direct or indirect lightning strikes.

3. Photovoltaic systems For protection of photopanels, automatic control electronics with sensitive electronic components, and DC/AC converters (inverters) from direct or indirect lightning strikes. Depending on the application, both serial and parallel connections are possible. With serial connection the required voltage is achieved. With parallel connection higher current absorption is achieved in the modules.

    Varsi V510E60 Series Metal Oxide Varistor (MOV)

    • High Energy Absorption Rating
    • Industry Standard Package
    • Wide Operating Range 35 - 1100VAC
    • High Peak Current Capability (70kA)
    • UL/CSA/ROHS/ISO9001:2015 Approved
    • Panel Mount
    • Screw Terminals

    APPLICATION AREAS:

    1. Railways and trams: For the protection of electrical equipment, power electronics (IGBT, thyristors...) in systems with alternating, direct or combined AC + DC power supply, especially in power supply of AC/DC, DC/AC, DC/DC converters. They may be used in systems with main and auxiliary power supply for example: automatic control and regulation systems, cooling systems, warming systems, ventilation systems, and combination systems (electromechanical, electropneumatic and other systems).

    2. Wind powerplants For protection of automatic control and regulation in power electronics (IGTB, tyristors...), as well as the protection of sensitive electronic systems (e. g. AC/DC, DC/AC, DC/DC converters, drive systems) from direct or indirect lightning strikes.

    3. Photovoltaic systems For protection of photopanels, automatic control electronics with sensitive electronic components, and DC/AC converters (inverters) from direct or indirect lightning strikes. Depending on the application, both serial and parallel connections are possible. With serial connection the required voltage is achieved. With parallel connection higher current absorption is achieved in the modules.

      Varsi Part Number V510E60
      Operating Voltage AC (50-60Hz) 510V
      Operating Voltage DC 670V
      Average Power Dissipation 1.6W
      Permissable Peak Current 70kA
      Energy Absorption(2ms) 1650W(max)
      Tolerance(Vn) +/- 10%
      Termination Style Screw
      Weight 260g
      Factory Pack Qty 1
      ROHS Yes
      UL Yes
      CSA Yes
