Thyro-A-2A-400-100-HRLP3, Thyro-A-2A-Series 2 Leg 3 Phase SCR Controller 100Amp 400VAC +10/-57% Burst(TAKT) Fire Mode, Economical Firing Mode, Voltage Control, Current Limit, Power Limit Options

Thyro-A-2A-400-100-HRLP3, Thyro-A-2A-Series 2 Leg 3 Phase SCR Controller 100Amp 400VAC +10/-57% Burst(TAKT) Fire Mode, Economical Firing Mode, Voltage Control, Current Limit, Power Limit Options

Product form
Free pickup in our shop(s)

1 pcs in stock

$3,682.80 $4,051.08 inclGST Excl. VAT

        SKU: FE-Thyro A 2A 400-100 HRLP3

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

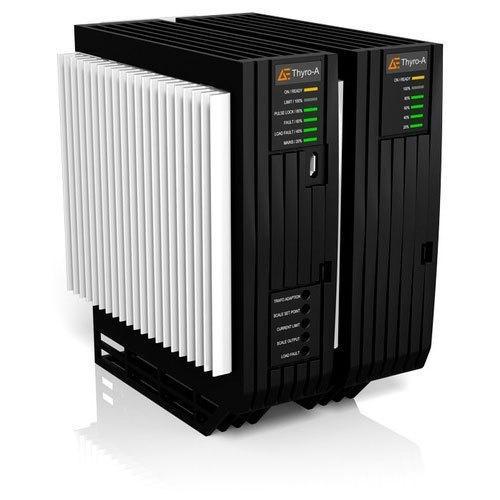

        Advanced Energy Thyro-A-2A-400-100-HRLP3, Thyro-A-2A-Series 2 Leg 3 Phase SCR Controller 100Amp 400VAC +10/-57% Burst(TAKT) Fire Mode, Economical Firing Mode, Voltage Control, Current Limit, Power Limit Options

        Features

        • 400VAC +10/-57% Line to Line Voltage, Current or Power Control
        • Smallest footprint on the market
        • Built in Fuses
        • 3 Phase, 2 Leg Economical Burst Controller Firing Mode
        • (0)4-20mA, 0(1)-5V, 0(2)-10V or POT input Proportional Control
        • Removable Cover
        • USB Configuration/Bias Setting
        • Potentiometer Adjustment
        • Synchronisation Function

        Applications

        • Electrical Ovens, Kilns, or Furnaces
        • Primary Control of Transformer Loads in Phase or Burst Fire mode
        • Resistive Loads up to 6:1 Hot/Cold Ratio
        • AC Soft Starter (Combined with PLC)
        • Power Regulation Applications
        • Electric Boilers
        • Brewery Heating
        • Industrial Light Dimming
        • Suitable for extreme environments such as mining

        Series Optional Features

          For HRL

          • Current Control/Feedback
          • Programmable Relay Alarm Output
          • Load Monitoring
          • Analogue Output

          For HRLP

          • As above with Power Control Feedback

          Communication Options



            Specification
            Advanced Energy Part Number Thyro-A-2A-400-100-HRLP3
            Approvals CE, UL508A, EU Directive 2014/35/EU & 2004/108/EC
            Control Accuracy 3% at rated voltage
            Rated Operating Temperature 45°C
            Temperature Derating 0.9 x Inom @ 50 Deg C, 1.1 x Inom @ 35 Deg C
            SCR Configuration Single Phase AC Switch
            Control Modes 2 Leg Burst(TAKT) for low dissipation
            Control Input 4(0)-20mA, 0(1)-5V, 0(2)-10V, POT
            Load Current 16 to 1500 Amp @ 45 Deg C (110% @ 35 Deg C Max)
            Control Range 0-100%
            Options Conformal Coating for Gas or High Humidity Environments
            Mounting Style Panel Mount
            Supply Voltage Range 400VAC +10/-57% (-57% with 24VDC Aux Supply)
            Soft Start Via PLC input
            Termination Style Screw
            Unit Weight 2.1 to 74kg
            Factory Pack Qty 1
