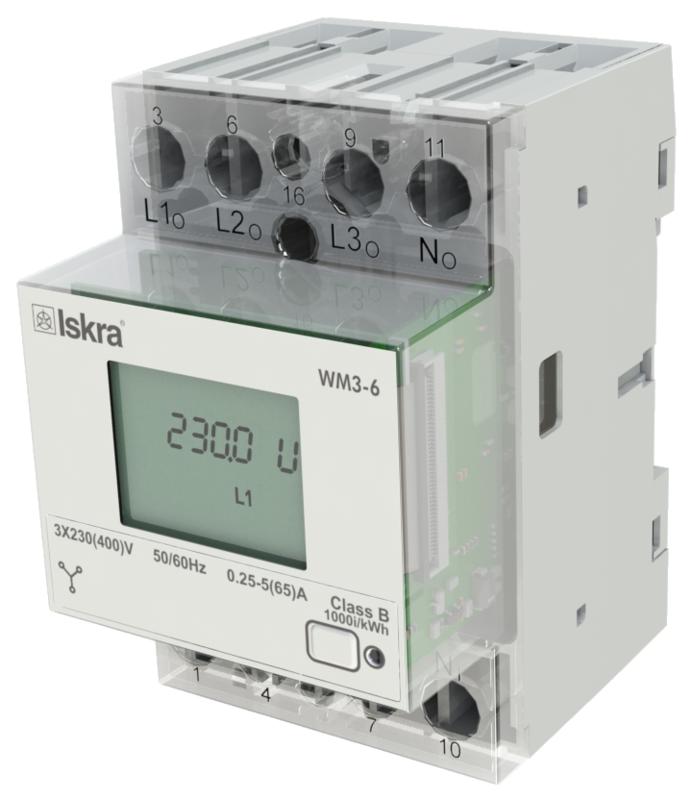

WM3-6 230DB, kWh Sub Meter, 230/400VAC +20/-15%, Three or Single Phase, 65 Amp Direct Connect, Bidirectional Counter, RS485 & IR Comms, DIN Rail Mount

Iskra Doo Part Number	WM3-6 230DB
Functions	Energy Meter
Supply Voltage	230V L-N, 400V L-L 5 Amp -20% +15% < 5VA
Nominal Measurement Range	230V L-N, 5 Amp -20% +15%
Maximum Measurement Range	230V L-N, 5 Amp -20% +15%
Nominal Current Input	3 x 65 Amp AC Direct Connect
Infra Red Output	19200 bit/s
Tariff Input	N/A (Optional)
Accuracy	Class 1 (I,U,F,PF,) Class 2 (Reactive)
Mounting	Din Rail
Real Time Clock	1min/month (30ppm)
Dimensions	53.6 x 84 x 69.4mm (3 DIN)
Pulse Output	N/A
Isolation	4kV
RS485	1200-19200 b/s
Weight	270g
Certification	UL, CSA, ROHS
Factory Pack Qty	1
Safety	Protection Class II 600V rms, installation category II 300V rms, installation category III Pollution Degree 2 in compliance with SIST EN 61010-1:2002
Enclosure Material	PC/ABS non combustable-self-extinguishability, complying with UL 94 V-0
Enclosure Protection	IP52 (IP00 for terminals) in compliance with SIST EN 60529:1997
Operating Temperature	-20 →+70 °C
