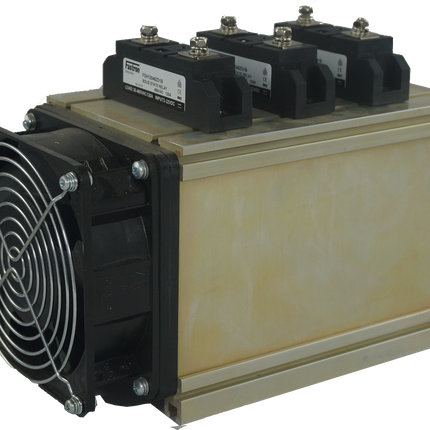

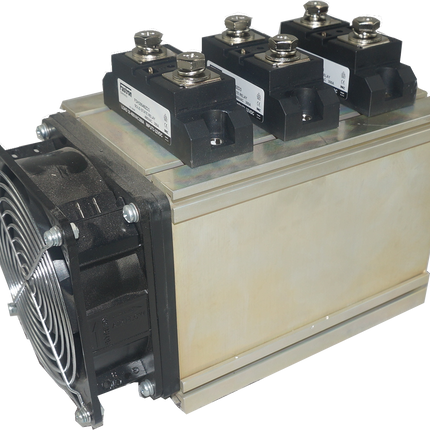

F135 Series Panel Mount 3 Phase Solid State Contactors, 13 to 240 Amp per Phase, 70-480VAC Switching, 90-280VAC or 4-32VDC Control Contactor Style Modules

F135 Series Panel Mount 3 Phase Solid State Contactors, 13 to 240 Amp per Phase, 70-480VAC Switching, 90-280VAC or 4-32VDC Control Contactor Style Modules

Product form
Free pickup in our shop(s)

20 pcs in stock

$183.10 $201.41 inclGST Excl. VAT

        SKU: FE-F135-4-13A

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        F135 Series Panel Mount 3 Phase Solid State Contactors, 13 to 240 Amp per P hase 70-480VAC Switching, 90-280VAC or 4-32VDC Control, Contactor Style Modules

        • Ratings from 13A to 240 Amp per phase @ 30-480 VAC
        • Thermal Overload Detection (via Bimetal Thermal Switch)
        • SCR output for heavy industrial loads
        • Zero voltage or instantaneous turn-on outputs
        • UL/CE/ROHS Compliant
        • Direct bond copper substrate
        • Direct power lead frame
        • Epoxy free design
        • Optional Fuses(Loose), Varistors(mounted) or 240VAC Snubber(mounted)
        Specification
        Part Number F135 Series
        Switching Type Zero Crossing
        ROHS/CE/UL Yes
        Control Voltage 3-32VDC or 90-280VAC
        Load Current 13 -150Amp (rms) per Phase @ 50 Deg C
        Surge Capability (10ms) 597-2000 Amp (peak)
        Special Feature N/A
        Mounting Style Panel Mount
        Load Voltage Range 70-480VAC
        Max Non Repetitive Peak Voltage 600 Vp
        Termination Style Screw Terminals
        Factory Pack Qty 1

        Dimensions and Fuse Kits
        Part Number Approximate Dimensions
        		 Weight Panel Mount Fuse Kits DIN Rail Mount Fuse Kits

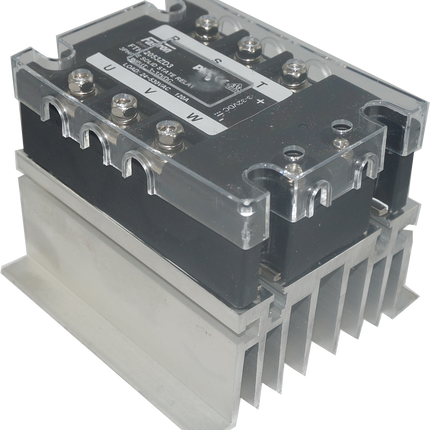

        F135-4-13A(D) L:115 x W:125 x D:95mm (Figure 1) 0.75kg 20-30 Amp 660VAC Fuse Kit Trent 25 Amp Cartridge Fuse
        F135-4-25A(D) L:155 x W:125 x D:185mm (Figure 5) 3.2kg 20-50 Amp 660VAC Fuse Kit Trent 40 Amp Cartridge Fuse

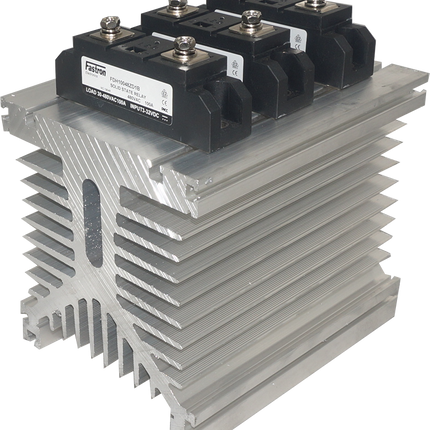

        F135-4-50A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 20-50 Amp 660VAC Fuse Kit Trent 63 Amp Cartridge Fuse
        F135-4-75A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 80 Amp Cartridge Fuse

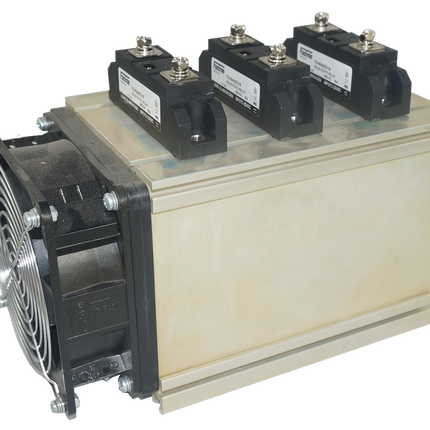

        F135-4-90A(D) L:255 x W:125 x D:185mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit Trent 125 Amp Cartridge Fuse
        F135-4-120A(D) L:255 x W:125 x D:195mm (Figure 6) 4.5kg 80-120 Amp 660VAC Fuse Kit N/A
        F135-4-180A(D) L:335 x W:125 x D:195mm (Figure 7) 5.5kg 120-180 Amp 660VAC Fuse Kit N/A
        F135-4-240A(D) L:335 x W:125 x D:195mm (Figure 8) 6.8kg 210-240 Amp 660VAC Fuse Kit N/A



        If you need a fan Control Relay you can find it here in our store.
