$724.60 $797.06 inclGST Excl. VAT

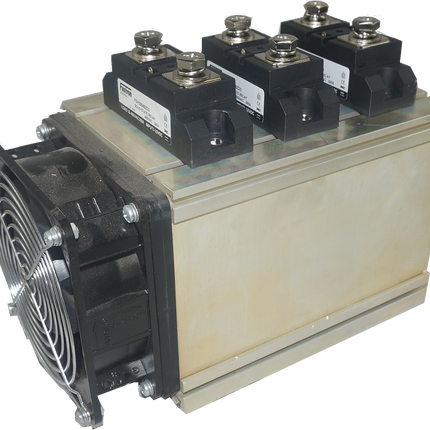

SKU: FE-F135-4-180A
Available on working days between 9:00 am to 6:00 pm.
| Part Number | F135 Series |
| Switching Type | Zero Crossing |
| ROHS/CE/UL | Yes |
| Control Voltage | 3-32VDC or 90-280VAC |
| Load Current | 13 -150Amp (rms) per Phase @ 50 Deg C |
| Surge Capability (10ms) | 597-2000 Amp (peak) |
| Special Feature | N/A |
| Mounting Style | Panel Mount |
| Load Voltage Range | 70-480VAC |
| Max Non Repetitive Peak Voltage | 600 Vp |
| Termination Style | Screw Terminals |
| Factory Pack Qty | 1 |
| Part Number |
Approximate Dimensions |
Weight | Panel Mount Fuse Kits | DIN Rail Mount Fuse Kits |
| F135-4-13A(D) | L:115 x W:125 x D:95mm (Figure 1) | 0.75kg | 20-30 Amp 660VAC Fuse Kit | Trent 25 Amp Cartridge Fuse |
| F135-4-25A(D) | L:155 x W:125 x D:185mm (Figure 5) | 3.2kg | 20-50 Amp 660VAC Fuse Kit | Trent 40 Amp Cartridge Fuse |
| F135-4-50A(D) | L:255 x W:125 x D:185mm (Figure 6) | 4.5kg | 20-50 Amp 660VAC Fuse Kit | Trent 63 Amp Cartridge Fuse |
| F135-4-75A(D) | L:255 x W:125 x D:185mm (Figure 6) | 4.5kg | 80-120 Amp 660VAC Fuse Kit | Trent 80 Amp Cartridge Fuse |
| F135-4-90A(D) | L:255 x W:125 x D:185mm (Figure 6) | 4.5kg | 80-120 Amp 660VAC Fuse Kit | Trent 125 Amp Cartridge Fuse |
| F135-4-120A(D) | L:255 x W:125 x D:195mm (Figure 6) | 4.5kg | 80-120 Amp 660VAC Fuse Kit | N/A |
| F135-4-180A(D) | L:335 x W:125 x D:195mm (Figure 7) | 5.5kg | 120-180 Amp 660VAC Fuse Kit | N/A |
| F135-4-240A(D) | L:335 x W:125 x D:195mm (Figure 8) | 6.8kg | 210-240 Amp 660VAC Fuse Kit | N/A |
??
If you need??a fan Control Relay you can find it here in our store.
