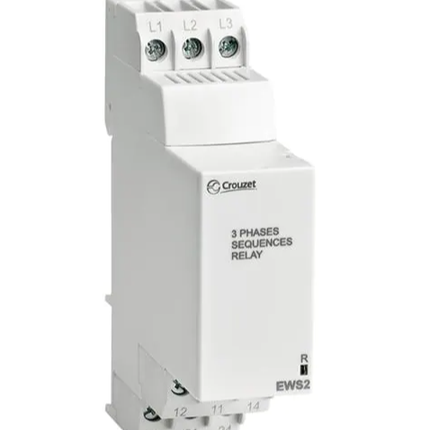

84873034, 3 Phase Voltage Monitoring Relay With 17.5mm DPDT Contacts, 3 x 230 - 460 V AC EWS2, Sequence, Failure, OBSOLETE WITH NO DIRECT REPLACEMENT, SEE 84873029 For Possible Replacement

84873034, 3 Phase Voltage Monitoring Relay With 17.5mm DPDT Contacts, 3 x 230 - 460 V AC EWS2, Sequence, Failure, OBSOLETE WITH NO DIRECT REPLACEMENT, SEE 84873029 For Possible Replacement

Product form
Free pickup in our shop(s)

1 pcs in stock

$222.63 $244.89 inclGST Excl. VAT

        SKU: FE-84873034

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

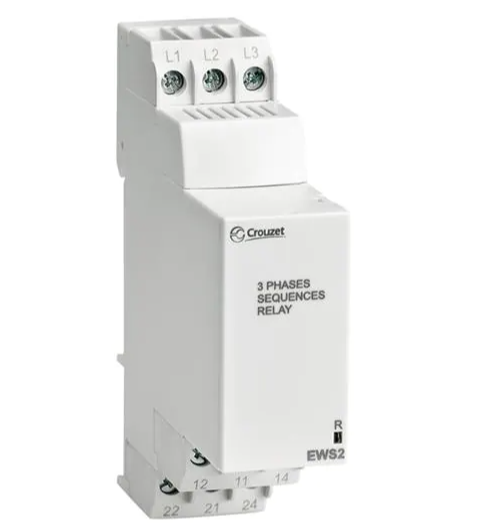

        Crouzet 84873034, 3 Phase Voltage Monitoring Relay With 17.5mm DPDT Contacts, 3 x 230 - 460 V AC EWS2, Sequence, Failure, OBSOLETE WITH NO DIRECT REPLACEMENT, SEE 84873029 For Possible Replacement

        EWS2 relays control, on 3-phase networks :

        • Phase Failure
        • Sequence Detection
        • Controls its own supply voltage
        • True RMS measurement
        • LED status indication



            Specification
            Crouzet Part Number 84873034 (3 Phase Voltage Monitoring Relay With DPDT Contacts)
            Function Phase Sequence, Phase Failure
            Nominal Voltage 3 x 230 → 3 x 460 V ∿
            Digital Outputs 2 x C/O Relays, 250VAC/DC @ 8 Amp
            Min Breaking Current 10mA/5VDC
            Timing Range N/A
            Delay on Pickup 500ms
            Alarm Delay on Time (max) 200ms
            Reset Time 1500ms
            Fixed Hysteresis 2% of Un
            Maximum Measurement Cycle Time 150ms/True RMS Measurement
            Measurement Accuracy 1%
            Supply Voltage Range Same as Measurement 3 x 208 → 3 x 480 V ∿
            Termination Style Screw
            Weight 170g
            Certification CE, UL, CSA, GL, ROHS
            Factory Pack Qty 1
            Over Voltage Category 3 in accordance with IEC/EN 60664-1
            Pollution Degree 2 in accordance with IEC/EN 61131-2
            Protection rating IP40 (Front), IP20 (Rear)
            Mechanical Resistance

            Immunity to vibrations IEC/EN 60068-2-6, test Fc

            Immunity to shock IEC/EN 60068-2-27, test Ea
            Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12
            Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure)
            Operating Temperature -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22



            Datasheet
