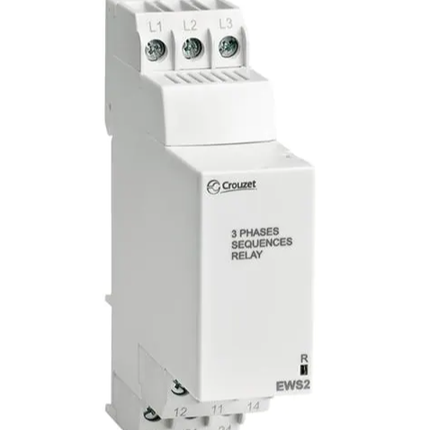

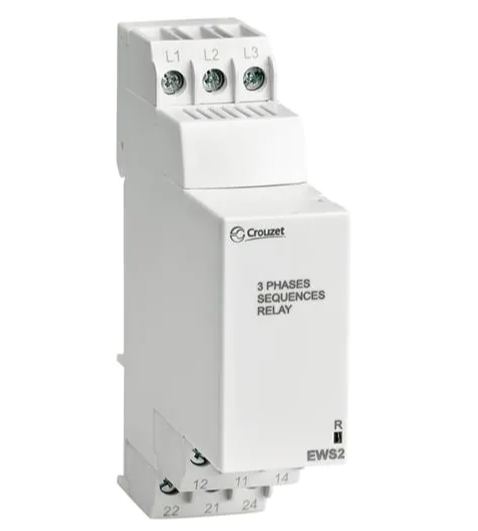

Crouzet Part Number	84873029 (3 Phase Voltage Monitoring Relay With SPDT Contacts)
Function	Total Phase Failure, Phase Sequence
Nominal Voltage	3 x 208 → 3 x 480 V ∿
Digital Outputs	1 x C/O Relays, 250VAC/DC @ 5 Amp
Min Breaking Current	10mA/5VDC
Timing Range	0.3 → 30s (0, +10%)
Delay on Pickup	500ms
Alarm Delay on Time (max)	200ms
Reset Time	1500ms
Fixed Hysteresis	2% of Un
Maximum Measurement Cycle Time	150ms/True RMS Measurement
Measurement Accuracy	1%
Supply Voltage Range	Same as Measurement 3 x 208 → 3 x 480 V ∿
Termination Style	Screw
Weight	170g
Certification	CE, UL, CSA, GL, ROHS
Factory Pack Qty	1
Over Voltage Category	3 in accordance with IEC/EN 60664-1
Pollution Degree	2 in accordance with IEC/EN 61131-2
Protection rating	IP40 (Front), IP20 (Rear)
Mechanical Resistance	Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea
Resistance to HF Interference	Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12
Conducted and radiated emissions	Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure)
Operating Temperature	-20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22



• Product Datasheet
