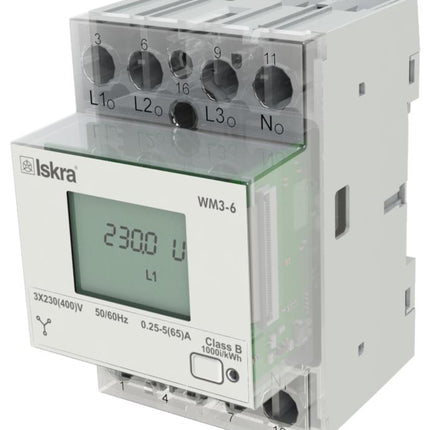

WM3-6 230DB, kWh Sub Meter, 230/400VAC +20/-15%, Three or Single Phase, 65 Amp Direct Connect, Bidirectional Counter, RS485 & IR Comms, DIN Rail Mount

WM3-6 230DB, kWh Sub Meter, 230/400VAC +20/-15%, Three or Single Phase, 65 Amp Direct Connect, Bidirectional Counter, RS485 & IR Comms, DIN Rail Mount

Product form
Free pickup in our shop(s)

10 pcs in stock

$247.00 $271.70 inclGST Excl. VAT

        SKU: FE-WM3-6 230DB

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        Iskra Doo WM3-6 230DB Three Phase Power Meter with RS485 & IR Comms

        • 65 Amp direct connect, no CT's required
        • Ultra slim 3 DIN
        • IR Communication as standard
        • RS485 communication up to 19,200 bit/s
        • Optional Pulse Output
        • True RMS values of currents and voltages
        • Measurements of active, reactive power
        • Accuracy class 1

        The meter is intended for measuring, and monitoring single-phase electrical power networks. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, power factor, phase angles, etc.) from the measured signals.

        Features :

        • Measurement of Active and Reactive Power
        • Optional Pulse Output
        • RS485 Comms
        • IR Comms
        • Graphic LCD with illumination
        • Multilingual support
        • User-friendly PC MiQen software
          Specification
          Iskra Doo Part Number WM3-6 230DB
          Functions Energy Meter
          Supply Voltage 230V L-N, 400V L-L 5 Amp -20% +15% < 5VA
          Nominal Measurement Range 230V L-N, 5 Amp -20% +15%
          Maximum Measurement Range 230V L-N, 5 Amp -20% +15%
          Nominal Current Input 3 x 65 Amp AC Direct Connect
          Infra Red Output 19200 bit/s
          Tariff Input N/A (Optional)
          Accuracy Class 1 (I,U,F,PF,) Class 2 (Reactive)
          Mounting Din Rail
          Real Time Clock 1min/month (30ppm)
          Dimensions 53.6 x 84 x 69.4mm (3 DIN)
          Pulse Output N/A
          Isolation 4kV
          RS485 1200-19200 b/s
          Weight 270g
          Certification UL, CSA, ROHS
          Factory Pack Qty 1
          Safety

          Protection Class II

          600V rms, installation category II

          300V rms, installation category III

          Pollution Degree 2 in compliance with SIST EN 61010-1:2002
          Enclosure Material PC/ABS non combustable-self-extinguishability, complying with UL 94 V-0
          Enclosure Protection IP52 (IP00 for terminals) in compliance with SIST EN 60529:1997


          Operating Temperature -20 →+70 °C



          Datasheet
