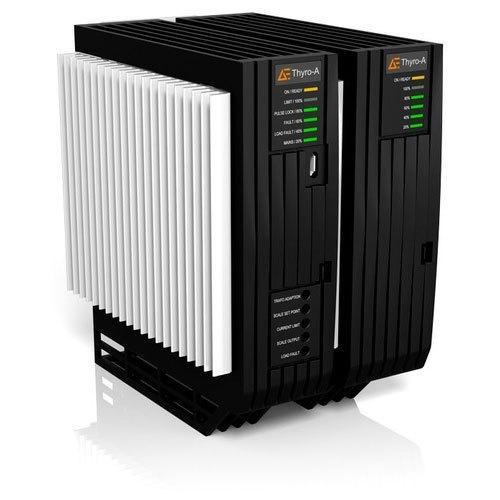

Thyro-ECO-A2A-400-25 E L3, Thyro-A-2A-ECO Series 2 Leg 3 Phase Burst(TAKT) Controller 25 Amp Rating, Voltage Control only, Most Economical Configuration, Suitable for Transformer Loads and Resistive Loads with 6:1-Hot Cold Ratio

Thyro-ECO-A2A-400-25 E L3, Thyro-A-2A-ECO Series 2 Leg 3 Phase Burst(TAKT) Controller 25 Amp Rating, Voltage Control only, Most Economical Configuration, Suitable for Transformer Loads and Resistive Loads with 6:1-Hot Cold Ratio

Product form

Out of stock

$1,795.86 $1,975.45 inclGST Excl. VAT

        SKU: FE-Thyro ECO A2A 400-25 E L3

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        Advanced Energy Thyro-ECO-A2A-400-25 E L3, Thyro-A-2A-ECO Series 2 Leg 3 Phase Burst(TAKT) Controller 25 Amp Rating, Voltage Control only, Most Economical Configuration, Suitable for Transformer Loads and Resistive Loads with 6:1-Hot Cold Ratio

        Features

        • 230VAC +10/-57% Voltage Control
        • Smallest footprint on the market
        • 3 Phase, Phase Angle & Burst Controller with SWITCH operation mode
        • SWITCH between Phase(VAR) or Burst(TAKT) control modes
        • (0)4-20mA, 0(1)-5V, 0(2)-10V or POT input Proportional Control
        • Fully enclosed IP20
        • Phase Angle(VAR), and Burst Fire(TAKT) switching
        • Removable Cover
        • USB Configuration/Bias Setting
        • Synchronisation Function
        • Digital Alarm Output
        • Load Monitoring

        Applications

        • Electrical Ovens, Kilns, or Furnaces
        • Primary Control of Transformer Loads in Phase or Burst Fire mode
        • AC Soft Starter (Combined with PLC)
        • Power Regulation Applications
        • Electric Boilers
        • Brewery Heating
        • Industrial Light Dimming
        • Suitable for extreme environments such as mining

          Special Features

          • Economic Model



          Specification
          Advanced Energy Part Number Thyro-ECO-A2A-400-25 E L3
          Approvals CE, UL508A, EU Directive 2014/35/EU & 2004/108/EC
          Control Accuracy 3% at rated voltage
          Rated Operating Temperature 45°C
          SCR Configuration 3 Phase AC Switch
          Control Input 4(0)-20mA, 0(1)-5V, 0(2)-10V, POT
          Load Current 25 to 125 Amp @ 45 Deg C (110% @ 35 Deg C Max)
          Control Range 0-100%
          Options Conformal Coating for Gas or High Humidity Environments
          Mounting Style Panel Mount
          Supply Voltage Range 400VAC +10/-57% (-57% 24VDC Aux)
          Soft Start Via PLC input
          Termination Style Screw
          Unit Weight 2.1 to 10kg
          Factory Pack Qty 1
