Thyro ECO A1A 400-50 E L3, Thyro-A-1A-ECO Series Single Phase SCR Controller 50 Amp 230VAC +10%/-57%, Voltage Control only, Phase(VAR), Burst(TAKT), Switch Operating Mode

Thyro ECO A1A 400-50 E L3, Thyro-A-1A-ECO Series Single Phase SCR Controller 50 Amp 230VAC +10%/-57%, Voltage Control only, Phase(VAR), Burst(TAKT), Switch Operating Mode

Product form

Out of stock

$1,400.85 $1,540.94 inclGST Excl. VAT

        SKU: FE-Thyro ECO A1A 400-50 E L3

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

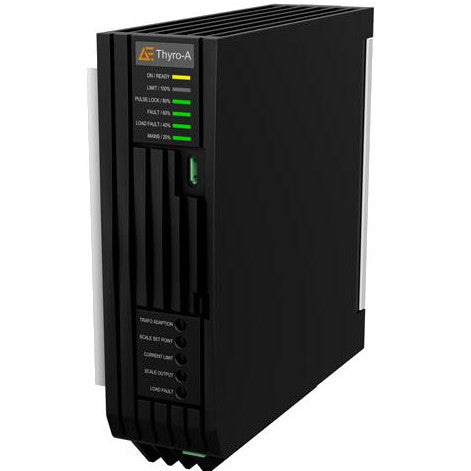

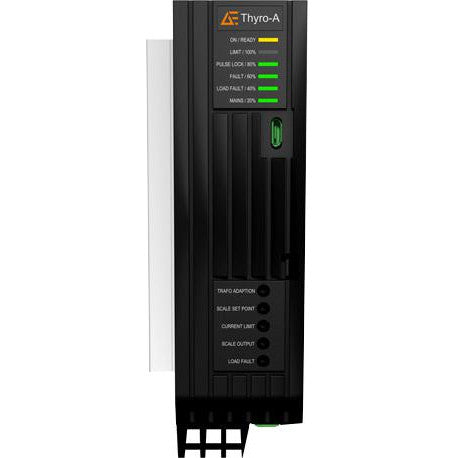

        Advanced Energy Thyro ECO A1A 400-50 E L3, Thyro-A-1A-ECO Series Single Phase SCR Controller 50 Amp 230VAC +10%/-57%, Voltage Control only, Phase(VAR), Burst(TAKT), Switch Operating Mode

        Features

        • 230VAC +10%/-57%, Voltage Control only +10/-57% Voltage Control
        • Smallest footprint on the market
        • 3 Phase, Phase Angle & Burst Controller with SWITCH operation mode
        • SWITCH between Phase(VAR) or Burst(TAKT) control modes
        • (0)4-20mA, 0(1)-5V, 0(2)-10V or POT input Proportional Control
        • Fully enclosed IP20
        • Phase Angle(VAR), and Burst Fire(TAKT) switching
        • Removable Cover
        • USB Configuration/Bias Setting
        • Synchronisation Function
        • Digital Alarm Output
        • Load Monitoring

        Applications

        • Electrical Ovens, Kilns, or Furnaces
        • Primary Control of Transformer Loads in Phase or Burst Fire mode
        • AC Soft Starter (Combined with PLC)
        • Power Regulation Applications
        • Electric Boilers
        • Brewery Heating
        • Industrial Light Dimming
        • Suitable for extreme environments such as mining

          Special Features

          • Economic Model



          Specification
          Advanced Energy Part Number Thyro ECO A1A 400-50 E L3
          Approvals CE, UL508A, EU Directive 2014/35/EU & 2004/108/EC
          Control Accuracy 3% at rated voltage
          Rated Operating Temperature 45°C
          SCR Configuration 3 Phase AC Switch
          Control Input 4(0)-20mA, 0(1)-5V, 0(2)-10V, POT
          Load Current 25 to 125 Amp @ 45 Deg C (110% @ 35 Deg C Max)
          Control Range 0-100%
          Options Conformal Coating for Gas or High Humidity Environments
          Mounting Style Panel Mount
          Supply Voltage Range 230VAC +10%/-57%, Voltage Control only +10/-15% (-57% with 24VDC Aux Supply)
          Soft Start Via PLC input
          Termination Style Screw
          Unit Weight 2.1 to 10kg
          Factory Pack Qty 1



          Technical Docs

            Read more

            Specifications

            • Weight: 200gr
            • Usage: Indoor & outdoor
