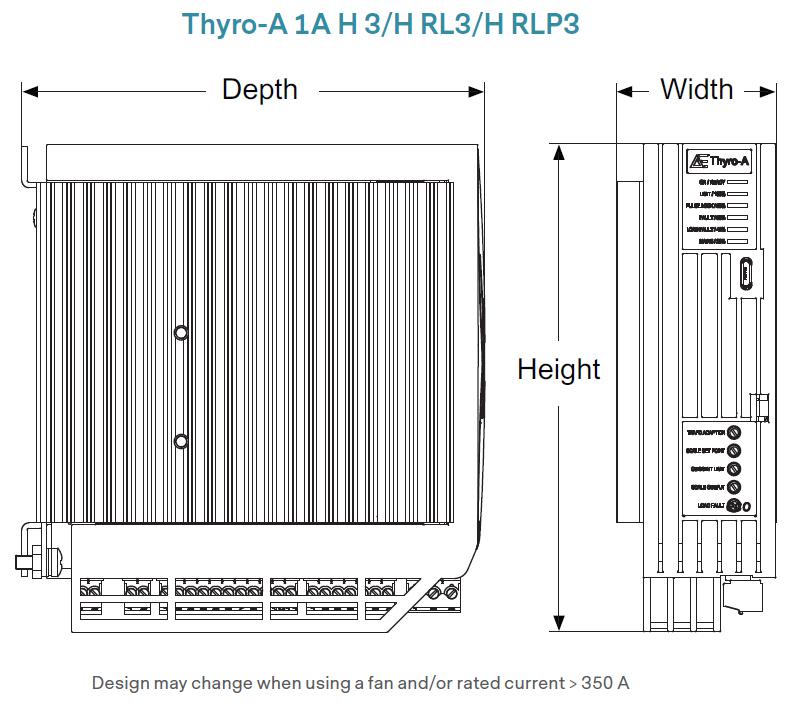

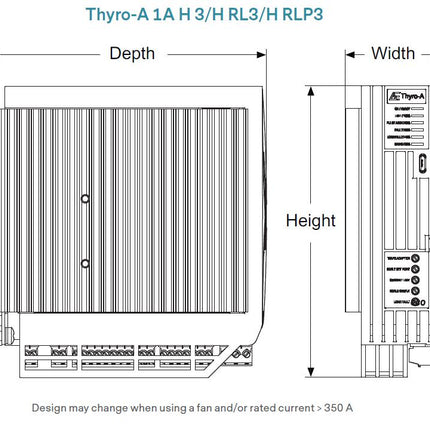

Thyro-A-1A-230-100-H-RLP3, Thyro-A-1A-Series Single Phase SCR Controller 100Amp 230VAC +10%/-57%, Voltage Control, Current Feedback, Power Control Options, Phase(VAR), Burst(TAKT), Quick TAKT(QTM), VT(on Request), SWITCH Operating Modes

Thyro-A-1A-230-100-H-RLP3, Thyro-A-1A-Series Single Phase SCR Controller 100Amp 230VAC +10%/-57%, Voltage Control, Current Feedback, Power Control Options, Phase(VAR), Burst(TAKT), Quick TAKT(QTM), VT(on Request), SWITCH Operating Modes

Product form
Free pickup in our shop(s)

1 pcs in stock

$2,383.00 $2,621.30 inclGST Excl. VAT

        SKU: FE-Thyro A 1A 230-100 HRLP3

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        Thyro-A-1A-230-100-H-RLP3, Thyro-A-1A-Series Single Phase SCR Controller 100Amp 230VAC +10%/-57%, Voltage Control, Current Feedback, Power Control Options, Phase(VAR), Burst(TAKT), Quick TAKT(QTM), VT(on Request), SWITCH Operating Modes

        Features

        • Optional Profinet, Profibus, Ethernet, Modbus Comms
        • 230VAC +10%/-57%, Voltage Control, +10/-57% Voltage, Current or Power Control
        • Built in Fuse
        • Smallest footprint on the market
        • Single Phase Phase Angle & Burst Controller with SWITCH operation mode
        • SWITCH between Phase(VAR) or Burst(TAKT) control modes
        • Quick TAKT Mode (QTM), VT Mode (on request)
        • (0)4-20mA, 0(1)-5V, 0(2)-10V or POT input Proportional Control
        • Removable Cover
        • Potentiometer Adjustment
        • USB Configuration/Bias Setting
        • Synchronisation Function (dASM Module Recommended)

        Applications

        • Electrical Ovens, Kilns, or Furnaces
        • Primary Control of Transformer Loads in Phase or Burst Fire mode
        • AC Soft Starter (Combined with PLC)
        • Power Regulation Applications
        • Electric Boilers
        • Brewery Heating
        • Industrial Light Dimming
        • Suitable for extreme environments such as mining

          Series Optional Features

          For HRL

          • Current Control/Feedback
          • Programmable Relay Alarm Output
          • Load Monitoring
          • Analogue Output

          For HRLP

          • As above with Power Control Feedback

          Communication Options

          Specification
          Advanced Energy Part Number Thyro-A-1A-230-100-H-RLP3
          Approvals CE, UL508A, EU Directive 2014/35/EU & 2004/108/EC
          Control Accuracy 3% at rated voltage
          Rated Operating Temperature 45°C
          Temperature Derating 0.9 x Inom @ 50 Deg C, 1.1 x Inom @ 35 Deg C
          SCR Configuration Single Phase AC Switch
          Control Modes Phase(VAR), Burst(TAKT), QUick TAKT(QTM), Hybrid(VT on request)
          Control Input 4(0)-20mA, 0(1)-5V, 0(2)-10V, POT
          Load Current 16 to 1230 Amp @ 45 Deg C (110% @ 35 Deg C Max)
          Control Range 0-100%
          Options Conformal Coating for Gas or High Humidity Environments
          Mounting Style Panel Mount
          Supply Voltage Range 230VAC +10%/-57%, Voltage Control, +10/-15% (-57% with 24VDC Aux Supply)
          Soft Start Via PLC input
          Termination Style Screw
          Unit Weight 2.1 to 30kg
          Factory Pack Qty 1
