SSVT 105, Hall Effect Battery Sensor, for Current Voltage, and Temperature, Current measuring Range +/-1500 Amp DC, For 12V(18V), and 24V(36V) Measurement of Dual 12V battery systems. -40 to 105 Deg C Temperature Measuring Range.

SSVT 105, Hall Effect Battery Sensor, for Current Voltage, and Temperature, Current measuring Range +/-1500 Amp DC, For 12V(18V), and 24V(36V) Measurement of Dual 12V battery systems. -40 to 105 Deg C Temperature Measuring Range.

Product form

Out of stock

$259.00 $284.90 inclGST Excl. VAT

        SKU: FE-SSVT 105

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

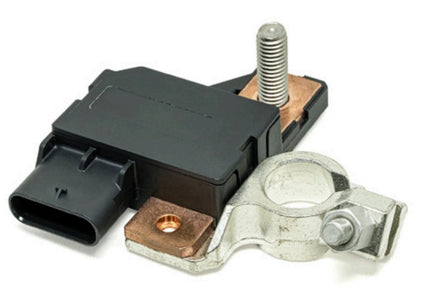

        SSVT 105, Hall Effect Battery Sensor, for Current Voltage, and Temperature, Current measuring Range +/-1500 Amp DC, For 12V(18V), and 24V(36V) Measurement of Dual 12V battery systems. -40 to 105 Deg C Temperature Measuring Range.

        Compact and versatile 3 in 1 Battery sensor for monitoring of all battery types.

        The SSVT 105 is a state of the art, System on Chip (SoC) digital transducer designed to monitor on board vehicle stationary battery systems. Data is transmitted over a industry standard CAN communication bus.

        Features

        • Battery terminal Mount
        • Direct battery measurement
        • Current to +/-150Amp
        • Voltage to 18V, or 36V for dual 12V battery systems
        • CAN Bus Output (Interface with OEM equipment)
        • Isolated plastic case recognised according to UL94-V0

        Advantages

        • Excellent sensitivity, accuracy, and repeatability
        • Excellent Linearity,
        • Low offset error for leakage current measurement
        • Synchronised measurement of I, U12, and U24 Voltages and currents

        Applications

        • Used to monitor and measure battery Current, Voltage, and Terminal Temperature.
        • Start Stop Technology Implementation on board the vehicle
        • Energy management on board vehicle
        • Battery supplied applications

        Application Domains

        • Energy & Automation
        • Industrial.
        • Utilities
        • Automotive
        LEM Part Number SSVT 105
        Technology SoC 3 in 1 sensor
        CE Approved Yes
        Supply Voltage 6 .. 36VDC @ 30mA
        Voltage Measurement Range 0.9 .. 18VDC (Single battery) 1.8 - 36VDC (Dual battery)
        Temperature Measurement Range -40°C / 105°C
        Output CAN Bus CAN 2.0B (NXP TJA 1042)
        Isolation 2.16kV (AC, 50Hz, 1 min)
        Mounting Style Battery Terminal Mount
        CAN bit rate 250 kbps
        CAN termination resistor No
        CAN wake-up capability Yes
        Connector Type  TE Ref 1-1718806-1 keying/coding A
        Operating Temperature Range -40°C / 105°C
        Accuracy 0.5%
        Termination Style 6 Pin Connector (for BM CBL POW 0.4/0.6M)
        Unit Weight 70g
        Factory Pack Qty 6

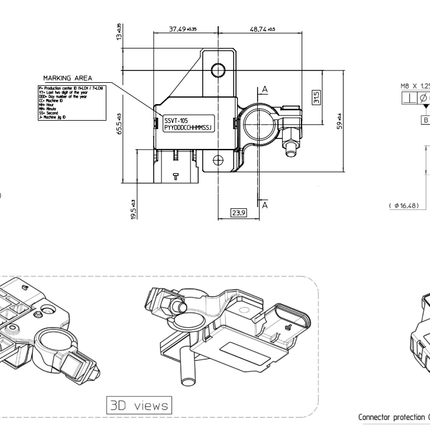

        Datasheet

        Read more

        Specifications

        • Weight: 200gr
        • Usage: Indoor & outdoor
