Smart X96-5I-2-1-C, Panel Mount Multifuction Meter, Class 0.5s, 65-480VAC, 1A/5A CT input, 30 Parameter, 2 x Digital Pulse/Alarm Outputs, Ethernet Comms, 65-480VAC Aux
Free Aus Post Shipping for $300 Spend
- Accessories
- Description
- Specification
- Datasheet
- Shipping & Returns
- Reviews

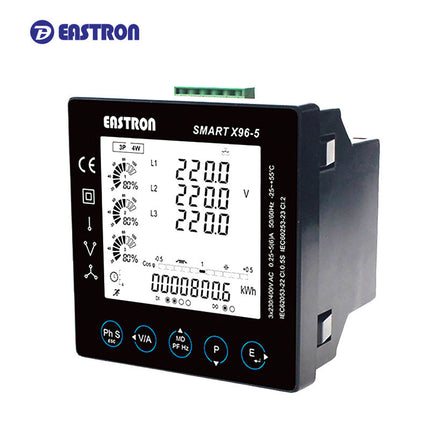

Eastron Smart X96-5I-2-1-C, Panel Mount Multifuction Meter, Class 0.5s, 65-480VAC, 1A/5A CT input, 30 Parameter, 2 x Digital Pulse/Alarm Outputs, Ethernet Comms, 65-480VAC Aux
- Metering and Numerical Display
- Adjustable tariff clock (Optional 4 Tarriffs), display of electric energy consumption in optional currency
- Ethernet communication as standard
- True RMS values of currents and voltages
- Measurements of active, reactive, apparent power and power factor
The meter is intended for measuring, analysing and monitoring single-phase or three-phase electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, power factor, phase angles, etc.) from the measured signals.
Features :
- Measurement of instantaneous values of more than 30 quantities (U, I, P, THD, IHD, S, PF, PA, f, f, MD, etc.).
-
Accuracy class 0.5s
- Optional 2 or 4 tariff inputs,
- Digital Output and Input
- Ethernet communication protocol
- Up to 4 inputs or outputs (pulse outputs, alarm outputs, tariff inputs)
- Universal or AC power supply
- Graphic LCD with Dual Metering and PF Displays
Eastron Part Number | Smart X96-5I-2-1-C |
Functions | Power Quality Meter, Energy Meter |
Supply Voltage | 65-480VAC < 7VA/3.5W |
Nominal Measurement Range | 65-480V L-N, 1/5 Amp |
Maximum Measurement Range | 280V L-N, 1/5 Amp |
Pulse Outputs | 2 x Digital Outputs (shared with Alarm function) |
Alarm | 2 x Digital Outputs (shared with Pulse function) |
Tariff Input | 1 (Optional 4 x ) |
Accuracy | Class 0.5 (I,U,F,PF,θ,THD) Class 0.5s(Active), Class 1 (Reactive) |
Battery Backup | N/A |
Real Time Clock | 1min/month (30ppm) |
Isolation | 2.5kV (1 Min) |
Ethernet | 2400-38400 b/s |
Weight | 500g |
Certification | MID, UL |
Factory Pack Qty | 1 |
Enclosure Material | PC/ABS non combustable-self-extinguishability, complying with UL 94 V-0 |
Operating Temperature | -25 →+55 °C |
