Smart X96-5-MID, Panel Mount Multifuction Meter, Class 1, 173-480VAC, 1A/5A CT input, 30 Parameter, 2 x Digital Pulse/Alarm Outputs, Modbus RTU RS485 Comms, Self Powered, MID Approved

Smart X96-5-MID, Panel Mount Multifuction Meter, Class 1, 173-480VAC, 1A/5A CT input, 30 Parameter, 2 x Digital Pulse/Alarm Outputs, Modbus RTU RS485 Comms, Self Powered, MID Approved

Product form
Free pickup in our shop(s)

16 pcs in stock

$385.00 $423.50 inclGST Excl. VAT

        SKU: FE-Smart X96-5-MID

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

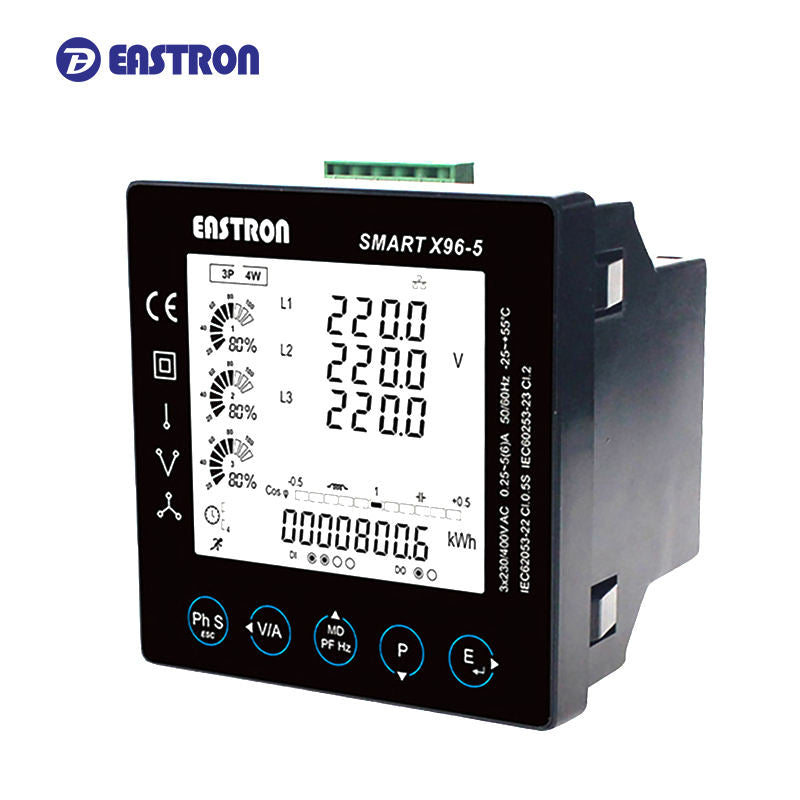

        Eastron Smart X96-5-MID, Panel Mount Multifuction Meter, Class 1, 173-480VAC, 1A/5A CT input, 30 Parameter, 2 x Digital Pulse/Alarm Outputs, Modbus RTU RS485 Comms, Self Powered, MID Approved

        • Metering and Numerical Display
        • Adjustable tariff clock (Optional 4 Tarriffs), display of electric energy consumption in optional currency
        • Modbus RTU as standard
        • True RMS values of currents and voltages
        • Measurements of active, reactive, apparent power and power factor



        The meter is intended for measuring, analysing and monitoring single-phase or three-phase electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, power factor, phase angles, etc.) from the measured signals.



        Features :

        • Measurement of instantaneous values of more than 30 quantities (U, I, P, THD, IHD, S, PF, PA, f, f, MD, etc.).

        • Accuracy class 1

        • Optional 2 or 4 tariff inputs,
        • Digital Output and Input
        • Ethernet communication protocol
        • Up to 4 inputs or outputs (pulse outputs, alarm outputs, tariff inputs)
        • Universal or AC power supply
        • Graphic LCD with Dual Metering and PF Displays
          Specification
          Eastron Part Number Smart X96-5-MID
          Functions Power Quality Meter, Energy Meter
          Aux Supply Through Measurement Inputs
          Nominal Measurement Range 173-480V L-N, 1/5 Amp
          Maximum Measurement Range 280V L-N, 1/5 Amp
          Pulse Outputs 2 x Digital Outputs (shared with Alarm function)
          Alarm 2 x Digital Outputs (shared with Pulse function)
          Tariff Input 1 (Optional 4 x )
          Accuracy Class 0.5 (I,U,F,PF,θ,THD) Class 1(Active), Class 2 (Reactive)
          Battery Backup N/A
          Real Time Clock 1min/month (30ppm)
          Isolation 2.5kV (1 Min)
          RS485 2400-38400 b/s
          Weight 500g
          Certification MID, UL
          Factory Pack Qty 1
          Enclosure Material PC/ABS non combustable-self-extinguishability, complying with UL 94 V-0
          Operating Temperature -25 →+55 °C



          Datasheet
