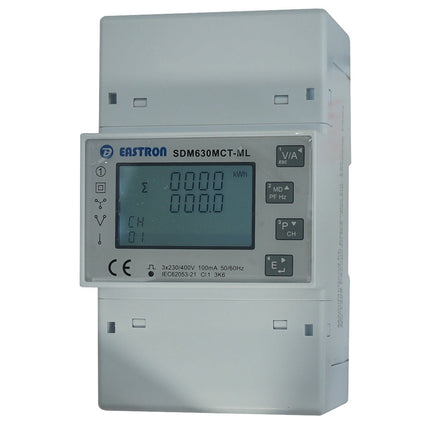

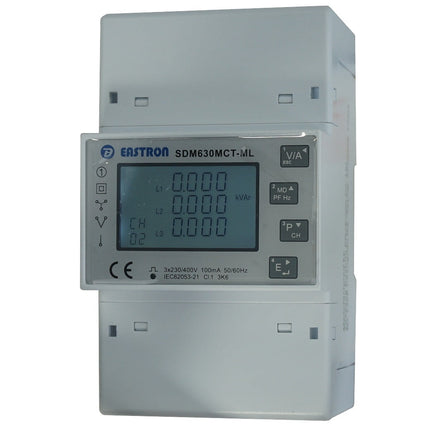

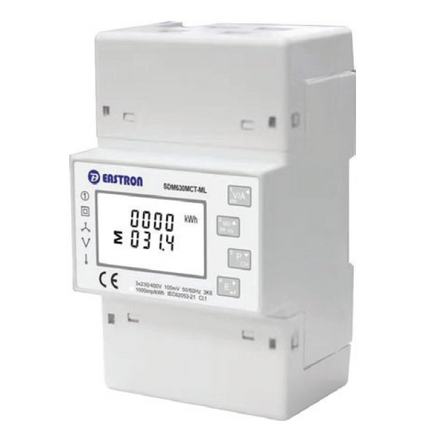

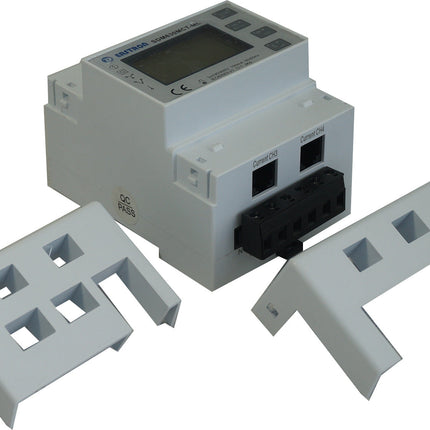

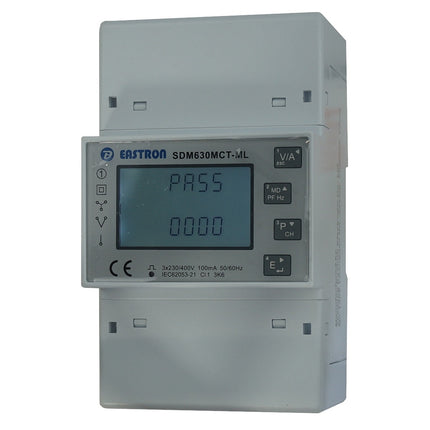

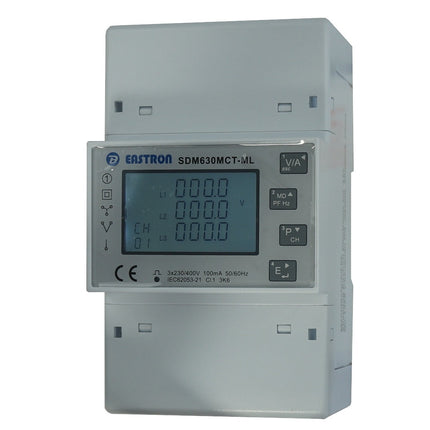

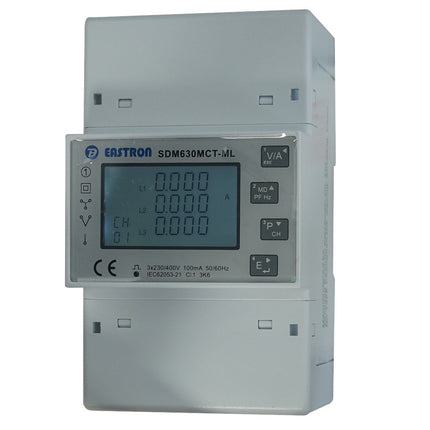

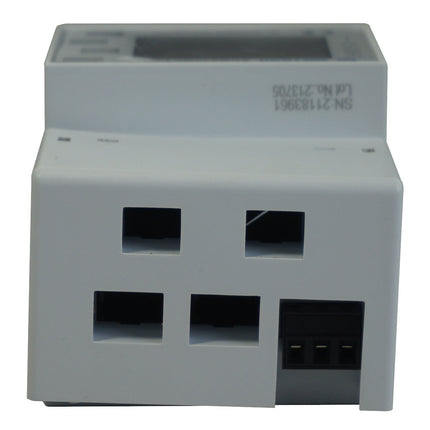

SDM630MCT-3L-TCP, Tri 3 Phase DIN Rail Mount kWh Meter with Easyclick, 3 x 3 Phase or 9 x Single Phase, 240VAC aux, Class 1, 100mA RJ12 CT Connect, w/RS485 Modbus RTU Comms

SDM630MCT-3L-TCP, Tri 3 Phase DIN Rail Mount kWh Meter with Easyclick, 3 x 3 Phase or 9 x Single Phase, 240VAC aux, Class 1, 100mA RJ12 CT Connect, w/RS485 Modbus RTU Comms

Product form
Free pickup in our shop(s)

10 pcs in stock

$409.00 $449.90 inclGST Excl. VAT

        SKU: FE-SDM630MCT-3L-TCP

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        Eastron SDM630MCT-3L-TCP, Tri 3 Phase DIN Rail Mount kWh Meter with Easyclick, 3 x 3 Phase or 9 x Single Phase, 240VAC aux, Class 1, 100mA RJ12 CT Connect, w/RS485 Modbus RTU Comms

        • 100mA RJ12 CT 3 x 3 Phase Connect
        • 100mA RJ12 9 x Single Phase RJ12 CT with adapter
        • RS 485 communication up to 38,400 bit/s as standard
        • True RMS values of currents and voltages
        • Easyclick CT system reduces installation costs
        • Dual Metering System Reduces Cost and saves space



        The meter is intended for measuring, and monitoring 3 x three phase or 9 x single-phase or electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power to the 30th Harmonic) from the measured signals.



        Features :

        • System Accuracy Class B/Class1

        • Measurement of Active and Reactive Power
        • Modbus RTU communication up to 38,400 bit/s communication
        • Graphic LCD with illumination
          Specification
          Eastron Europe Part Number SDM630MCT-3L-TCP
          Functions Tri Three Phase Energy Meter/ 9 x Single Phase Energy Meter
          Supply Voltage 230V L-N +/-15% < 5VA
          Nominal Measurement Range 415V L-L 230V L-N, 1/5 Amp +/-15%
          Maximum Measurement Range 480V L-L 230V L-N, 1/5 Amp
          Nominal CT Current Input 100mA via RJ12 Easyclick CT's
          Pulse Output N/A
          Tariff Input N/A
          System Accuracy Class 1 (I,U,F,kW,kWh) Class 2 (Reactive)
          Mounting Din Rail
          Real Time Clock 1min/month (30ppm)
          Internal Memory N/A
          Dimensions 72mm x 100mm x 66mm (4 modules wide)
          Isolation 4kV
          RS485 2400-38400 b/s (400ms Response Time)
          Weight 600g
          Certification EN 61010-1 Installation Category III
          Factory Pack Qty 1
          Safety IP51(Indoor)
          Enclosure Material Noryl with fire protection to UL94-V-O. Self extinguishing
          Enclosure Size

          DIN 42880 4 Modules
          Operating Temperature -20 →+70 °C
