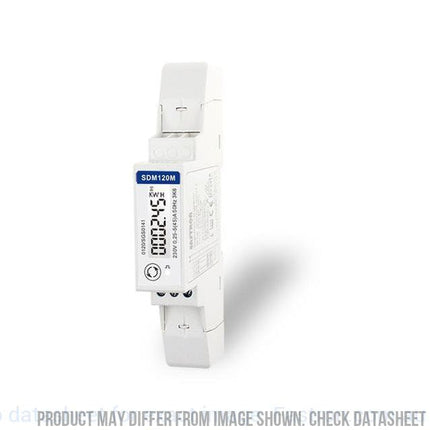

SDM120CTModbus-MID-100mV, DIN Rail Mount kWh Meter, Single Phase, 240VAC aux, Class 1/Class B, 100mV CT Connect, w/ 2 x pulse outputs and RS485 Comms, MID Approved

SDM120CTModbus-MID-100mV, DIN Rail Mount kWh Meter, Single Phase, 240VAC aux, Class 1/Class B, 100mV CT Connect, w/ 2 x pulse outputs and RS485 Comms, MID Approved

Product form
Free pickup in our shop(s)

11 pcs in stock

$123.00 $135.30 inclGST Excl. VAT

        SKU: FE-SDM120CTModbus-MID-100mV

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        Eastron Europe SDM120CTModbus-MID-100mV, DIN Rail Mount kWh Meter, Single Phase, 240VAC aux, Class 1/Class B, 100mV CT Connect, w/ 2 x pulse outputs and RS485 Comms, MID Approved. *Best accuracy for low current measurements

        • 100mV CT Connect
        • 1 x Configurable Pule Output (via Modbus)
        • 1 x Fixed Pulse Output (1000imp/kwh)
        • RS 485 communication up to 38,400 bit/s as standard
        • Optional Mbus Model available
        • True RMS values of currents and voltages



        The meter is intended for measuring, and monitoring single-phase or electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power to the 30th Harmonic) from the measured signals.



        Features :

        • Accuracy Class 1

        • Measurement of Active and Reactive Power
        • Modbus RTU communication up to 38,400 bit/s communication
        • Pulse output as standard
        • Graphic LCD with illumination
          Specification
          Eastron Europe Part Number SDM120CTModbus-MID-100mV
          Functions Single Phase Energy Meter
          Supply Voltage 230V L-N, 5 Amp +/-15% < 5VA
          Nominal Measurement Range 230V L-L 230V L-N, 45 Amp
          Maximum Measurement Range 276V L-L 230V L-N, 45 Amp
          Nominal Current Input 100mV Amp CT
          Pulse Output 1 x 1000imp/kwh, 1 x Configurable 60/100(default)/200ms
          Primary CT Ratio 5,10,20,30,40,50,75,100,125,150,200,250,300,400,600 Amp
          Accuracy Class 1/ Class B (I,U,F,kW,kWh) Class 2 (Reactive)
          Mounting Din Rail
          Real Time Clock 1min/month (30ppm)
          Internal Memory N/A
          Dimensions 24mm x 100mm x 66mm (1 module wide)
          Isolation 4kV
          RS485 2400-38400 b/s
          Weight 150g
          Certification EN 61010-1 Installation Category III
          Factory Pack Qty 1
          Enclosure Material Noryl with fire protection to UL94-V-O. Self extinguishing
          Enclosure Size

          DIN 42880 6 Modules
          Operating Temperature -20 →+70 °C



          Datasheet
