$1,938.00 $2,131.80 inclGST Excl. VAT
SKU: FE-RCS-2405-VAR
Available on working days between 9:00 am to 6:00 pm.

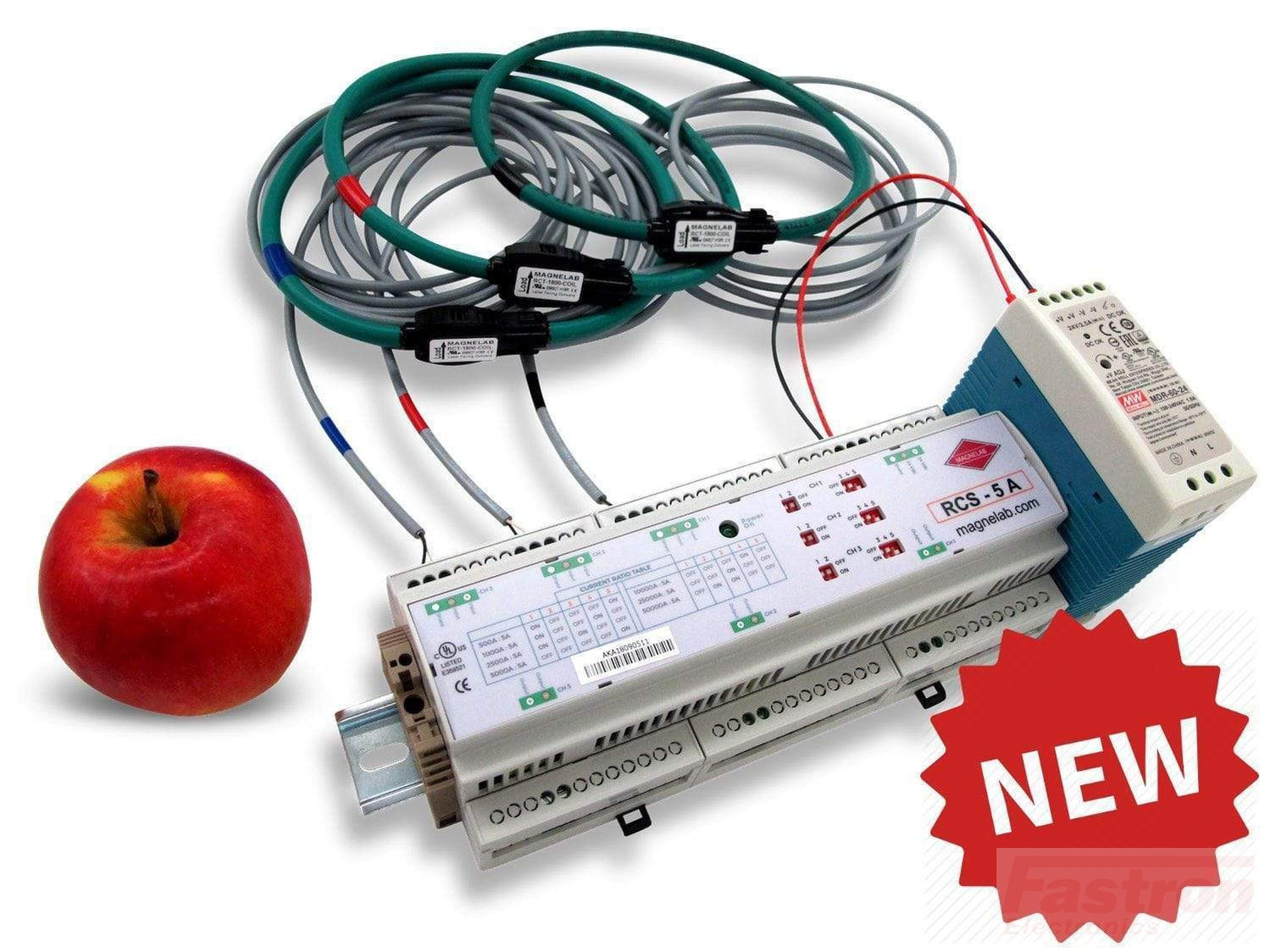

RCS-2405-VAR, 5 Amp Output, Class 1 Three Phase 500/1000/2500/5000\10000\25000\50000 Amp AC Measurement 8 Inch Diameter Rogowski Coils with Integrator Flexible Current Sensor System (Rogowski Coils):
| Magnelab Part Number | RCS-2405-VAR |
| Function | AC Current Measurement |
| Nominal Measurement Current (Ipn) | 500/1000/2500/5000\10000\25000\50000 Amp RMS Selectable |
| Measurement Range | 10% - 130% if Ipn |
| Output Range | 0-5 Amp |
| Frequency Measuring Range | 50-1500Hz (15th Harmonic) |
| Operating Voltage | 24VDC |

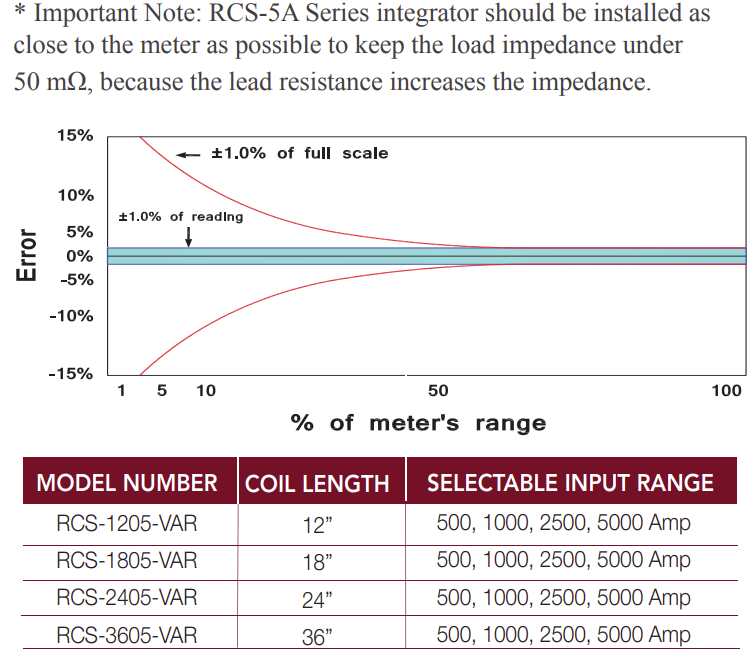

| Accuracy | 1% from 25 to 5000 Amp |
| Phase Angle | < 0.5 Degrees |

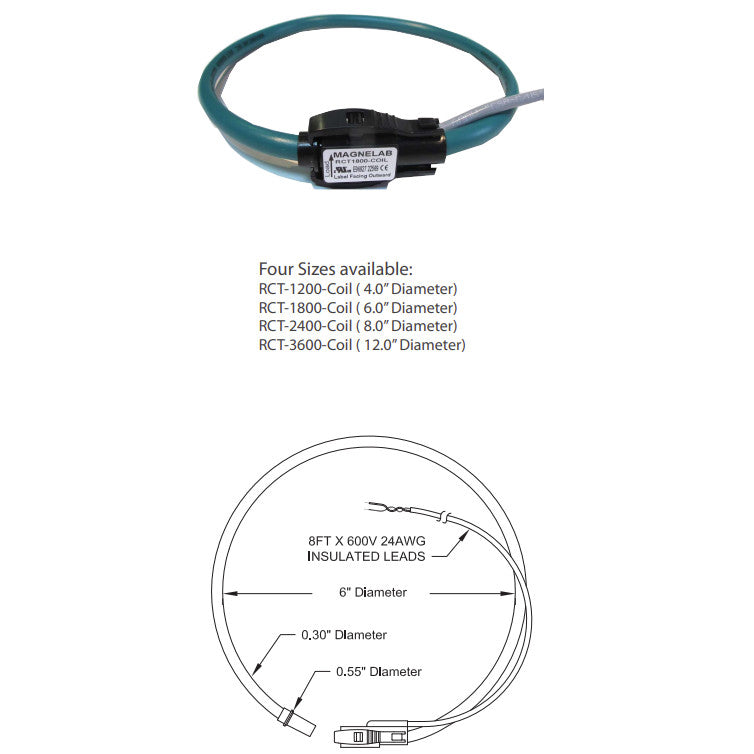

| Coil Diameter (⌀) | 8 Inch |
| Coil Circumference | 24 Inch |
| Integrator to Coil Cable | 8 Feet Shielded |
| Maximum Voltage | 600V (on bare conductor) |
| Operating Temperature | -15°C to 65°C |
| Storage Temperature | -45°C to 80°C |
| Power Consumption | < 2VA |
| Overload | 20,000 Amp (continuous) |
| Termination Style | Screw |
| Weight | 2500g |
| Certification | CE |
| Factory Pack Qty | 1 |
| Certifications |
UL Recognized E96927 to IEEE C57.13, CAN/CSA 60044-1 Meets UL STD 61010-1, CAN/CSA C22.2 No. 61010 CE ROHS |
