MS-25-1, Motor Protection Switch, 3 Phase, 690VAC, 0.63 - 1 Amp Setting Range, Thermal and Magnetic Release
Rated 3.5/5 based on 11 customer reviews
MS-25-1, Motor Protection Switch, 3 Phase, 690VAC, 0.63 - 1 Amp Setting Range, Thermal and Magnetic Release

MS-25-1, Motor Protection Switch, 3 Phase, 690VAC, 0.63 - 1 Amp Setting Range, Thermal and Magnetic Release

Free Shipping for $300 Spend

Available: Sold Out
$62.00
$68.20inclGST

Free Shipping for $300 Spend

Successful pre-order.Thanks for contacting us!
  • MS-25-1, Motor Protection Switch, 3 Phase, 690VAC, 0.63 - 1 Amp Setting Range, Thermal and Magnetic Release
    MS-25-1, Motor Protection Switch, 3 Phase, 690VAC, 0.63 - 1 Amp Setting Range, Thermal and Magnetic Release $62.00 $68.20inclGST Sold Out
This product: MS-25-1, Motor Protection Switch, 3 Phase, 690VAC, 0.63 - 1 Amp Setting Range, Thermal and Magnetic Release
$62.00 6200 68.2inclGST
$62.00 68.2inclGST

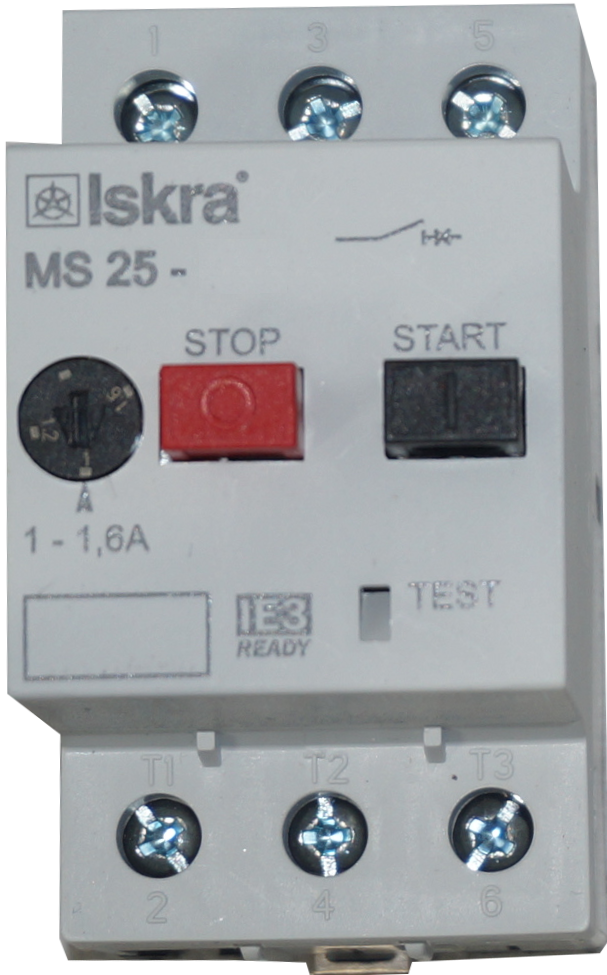

Iskra Doo MS-25-1, 3 Phase Motor Protection Switch

Motor Protection Circuit Breakers are a special type of circuit breaker designed for protection of a wide range of single and 3 phase AC motors against overload and short circuit. Used in industry, small machines,e agricultural machinese, compressors etc.

Features :

  • Magnetic and Thermal releases
  • < 50mS Trip Delay Time
  • 3 Pole Disconnect
  • SHort Circuit Breakign Capacity up to 4kA
  • Voltage resettable version available
  • Customised versions available

Standards :

  • IEC/EN 60898,60947-3
  • IP20 (IP40 Installed) IEC 61008
  • AS/NZ 61009-1

    Iskra Doo MS-25-1, 3 Phase Motor Protection Switch

    Motor Protection Circuit Breakers are a special type of circuit breaker designed for protection of a wide range of single and 3 phase AC motors against overload and short circuit. Used in industry, small machines,e agricultural machinese, compressors etc.

    Features :

    • Magnetic and Thermal releases
    • < 50mS Trip Delay Time
    • 3 Pole Disconnect
    • SHort Circuit Breakign Capacity up to 4kA
    • Voltage resettable version available
    • Customised versions available

    Standards :

    • IEC/EN 60898,60947-3
    • IP20 (IP40 Installed) IEC 61008
    • AS/NZ 61009-1
      Iskra Doo Part Number MS-25-1
      Functions 3 Phase Motor Protection Switch
      Nominal Voltage 230/400VAC @ 50/60Hz
      Nominal Current Range 0.63 - 1 Amp RMS
      Trip Delay Time < 50ms
      Rated Frequency 50/60 Hz
      Operating Temperature -25 to 60 Deg C
      Rated Operations 100,000 Ops
      Insulation Voltage 690V
      Overload Protection Thermal and Magnetic Release
      Breaking Capacity 230V(6kA) 415V(4kA) 500V(2.5kA) 690V(2kA)
      Approvals UL, CSA, EAC
      Standards IEC/EN 60947-2/4-1/5-1, IP20 (IP40 Installed) IEC 61008 ; AS/NZ 61009-1
      Weight 230g
      Enclosure Material UL94
      Factory Pack Qty 1
