$139.00 $152.90 inclGST Excl. VAT
SKU: FE-MFR 10 161-346VAC
Available on working days between 9:00 am to 6:00 pm.

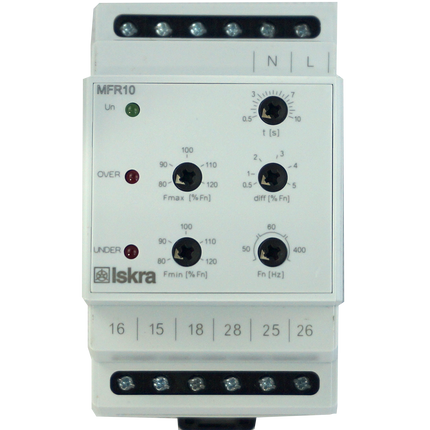

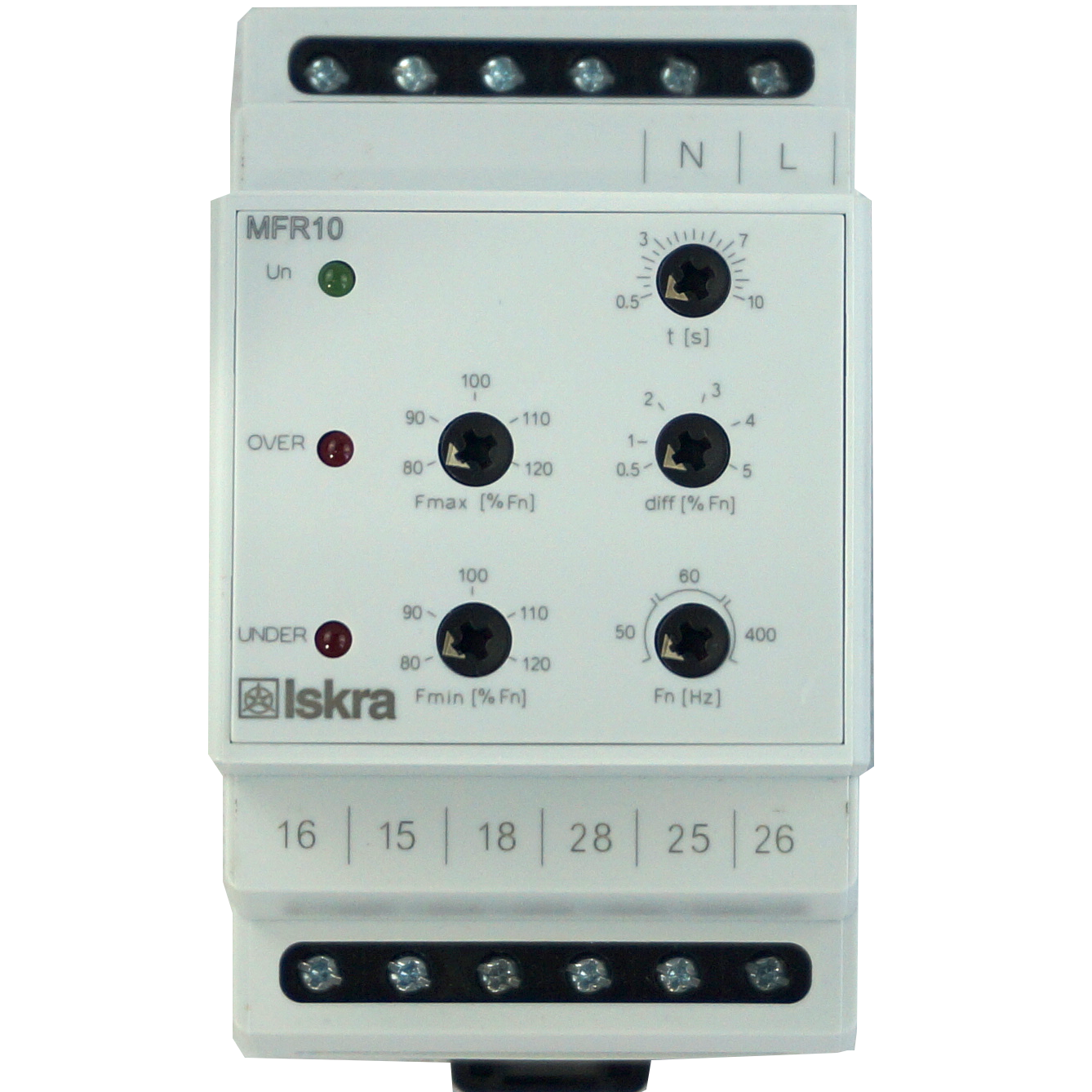

MFR 10 Series serves to monitor AC frequencies from 40 to 70Hz, and provides Relay alarm output with adjustable delay time 0.5 - 10s.
|
Iskra Doo Part Number |
MFR 10 161-346VAC |
|
Voltage Range |
161 - 346 VAC (40 - 70 Hz) |
|
Operating Range |
-15 %; +10 % |
|
Measurement Range |
40 - 70 Hz |
|
Trip Adjustment |
Potentiometer |
|
Setting Accuracy |
5 % |
|
Burden |
max. 1.5 VA |
|
Repeatability |
1 % |
|
Temperature Drift |
0.1%/°C |
|
Peak Overload (10s) |
N/A |
|
Time delay T1 |
max. 500 ms |
|
Time delay T2 |
adjustable 0.1-10 s |
|
Output |
|
|
Number of contacts |
1x changeover/ SPDT (AgNi / Silver Alloy) |
|
Rating |
8 A / AC1 |
|
Breaking capacity |
2500 VA / AC1, 240 W / DC |
|
Inrush current |
10 A |
|
Switching voltage |
250 V AC1 / 24 V DC |
|
Min. breaking capacity DC |
500 mW |
|
Indication of state |
red LED |
|
Mechanical life |
1 x 107 |
|
Electrical life (AC1) |
1 x 105 |
|
Other information |
|
|
Operating temperature |
-20 ... +55 °C |
|
Storage temperature |
-30 ... +70 °C |
|
Electrical strength |
4 kV (supply - output) |
|
Operating position |
any |
|
Mounting |
DIN rail EN 60715 |
|
Protection degree |
IP 40 from front panel / IP 10 terminals |
|
Overvoltage cathegory |
III. |
|
Pollution degree |
2 |
|
Max. cable size (mm )2 |
solid wire max. 2x2.5 or 1x4 ; with sleeve max. 1x2.5 or 2x1.5 |
|
Dimensions |
90 x 17,6 x 64 mm |
|
Weight |
69 g |
|
Standards |
EN 60255-6, EN 61010-1 |
