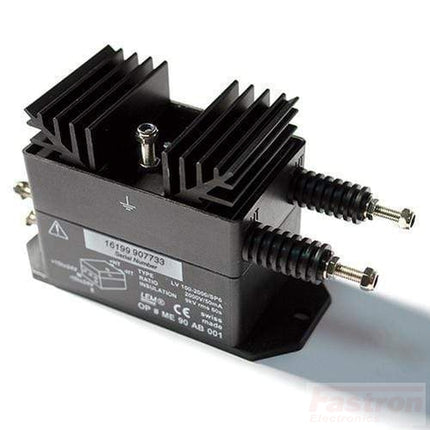

LV 100-2000/SP6, C/L Hall Effect Voltage Transducer, 2000V, 50mA Output
Rated 3.5/5 based on 11 customer reviews
LV 100-2000/SP6, C/L Hall Effect Voltage Transducer, 2000V, 50mA Output

LV 100-2000/SP6, C/L Hall Effect Voltage Transducer, 2000V, 50mA Output

Free Shipping for $300 Spend

Available: Backorder in 6-8 Weeks
$945.01
$1,039.51inclGST

Free Shipping for $300 Spend

Compare
  • LV 100-2000/SP6, C/L Hall Effect Voltage Transducer, 2000V, 50mA Output
    LV 100-2000/SP6, C/L Hall Effect Voltage Transducer, 2000V, 50mA Output $945.01 $1,039.51inclGST Backorder
This product: LV 100-2000/SP6, C/L Hall Effect Voltage Transducer, 2000V, 50mA Output
$945.01 94501 1039.511inclGST
$945.01 1039.511inclGST

LEM LV 100-2000/SP6 C/L Voltage Transducer, 2000V, +/-15VDC Aux, 50mA Output

Features

    • Bipolar and Insuated voltage measurement up tp 3000VAC/DC
    • Current output
    • Closed loop (compensated) voltage transducer
    • Panel mounting
    • Insulated plastic case recognized according to UL 94-V0



Advantages

    • Very good linearity
    • High accuracy
    • Low offest drift over temperature
    • Wide frequency bandwidth
    • Very low insertion losses
    • High immunity to external interference
    • Low power consumption



Applications

    • Railway Equipment
    • Windmill Inverters
    • Test and Measurement
    • Substations
    • AC variable speed drives and servo motor drives
    • Static converters for DC motor drives
    • Battery supplied applications
    • Uninterruptible Power Supplies (UPS)
    • Switched Mode Power Supplies (SMPS)
    • Power supplies for welding applications



Application Domain

      • Industrial
      • Traction

Standards

    • EN 50178:1997
    • IEC61010-1:2010
    • UL 508:2010



LEM LV 100-2000/SP6 C/L Voltage Transducer, 2000V, +/-15VDC Aux, 50mA Output

Features

    • Bipolar and Insuated voltage measurement up tp 3000VAC/DC
    • Current output
    • Closed loop (compensated) voltage transducer
    • Panel mounting
    • Insulated plastic case recognized according to UL 94-V0



Advantages

    • Very good linearity
    • High accuracy
    • Low offest drift over temperature
    • Wide frequency bandwidth
    • Very low insertion losses
    • High immunity to external interference
    • Low power consumption



Applications

    • Railway Equipment
    • Windmill Inverters
    • Test and Measurement
    • Substations
    • AC variable speed drives and servo motor drives
    • Static converters for DC motor drives
    • Battery supplied applications
    • Uninterruptible Power Supplies (UPS)
    • Switched Mode Power Supplies (SMPS)
    • Power supplies for welding applications



Application Domain

      • Industrial
      • Traction

Standards

    • EN 50178:1997
    • IEC61010-1:2010
    • UL 508:2010



LEM Part Number LV 100-2000/SP6
Technology Closed Loop Hall Effect
Aperture No Aperture
ROHS Yes
Supply Voltage +/- 15 VDC Bipolar, Isolated
Primary RMS Voltage 2000V
Measurement Range +/- 3000V
Output 50 mA
Isolation 6 kV
Response 200uS
Mounting Style Panel Mount
Operating Temperature Range -10°C / 70°C
Accuracy 0.7%
Termination Style Faston 45° 6.3 x 0.8mm and M5 threaded studs
Unit Weight 870g
Factory Pack Quantity 6
