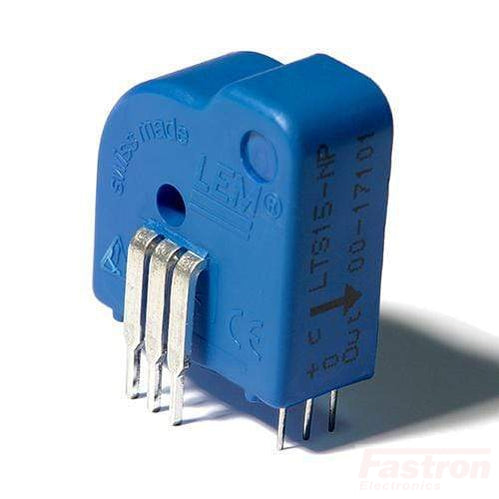

LTS 15-NP, C/L Hall Effect Current Sensor, 15 Amp, 0-5V Output, 3.2mm Aperture, X = 0.2%
Rated 3.5/5 based on 11 customer reviews

LTS 15-NP, C/L Hall Effect Current Sensor, 15 Amp, 0-5V Output, 3.2mm Aperture, X = 0.2%

  • Order within

Free Shipping for $300 Spend

Available: 32pcs in stock , more available 6-8 Weeks
$25.70
$28.27inclGST

Free Shipping for $300 Spend

Wishlist Compare

LEM LTS Series Closed Loop AC/DC Hall Effect Sensor

Features

  • Closed loop current transducer
  • Voltage output
  • 3kV Isolation
  • Frequency bandwidth 200kHz
  • Single supply + 5 V
  • Galvanic isolation between primary and secondary
  • Low power consumption
  • Compact design for PCB mounting
  • Vref IN Vref OUT

Advantages

  • LXSR footprint compatible
  • Excellent accuracy
  • Zero insertion losses
  • Very good linearity
  • Very good dv/dt immunity
  • High immunity to external intereference
  • Current overload capability
  • Optimised response time

Applications

  • AC variable speed and servo motor drives
  • Static converters for DC motor drives
  • Battery supplied applications
  • Uninterruptible Power Supplies (UPS)
  • Switched Mode Power Supplies (SMPS)
  • Power supplies for welding applications

Standards

  • EN 50178: 1997
  • UL 508: 2013
  • IEC 61010-1(safety)

Application Domain

  • Industrial

LEM LTS Series Closed Loop AC/DC Hall Effect Sensor

Features

  • Closed loop current transducer
  • Voltage output
  • 3kV Isolation
  • Frequency bandwidth 200kHz
  • Single supply + 5 V
  • Galvanic isolation between primary and secondary
  • Low power consumption
  • Compact design for PCB mounting
  • Vref IN Vref OUT

Advantages

  • LXSR footprint compatible
  • Excellent accuracy
  • Zero insertion losses
  • Very good linearity
  • Very good dv/dt immunity
  • High immunity to external intereference
  • Current overload capability
  • Optimised response time

Applications

  • AC variable speed and servo motor drives
  • Static converters for DC motor drives
  • Battery supplied applications
  • Uninterruptible Power Supplies (UPS)
  • Switched Mode Power Supplies (SMPS)
  • Power supplies for welding applications

Standards

  • EN 50178: 1997
  • UL 508: 2013
  • IEC 61010-1(safety)

Application Domain

  • Industrial
LEM Part Number LTS 6-NP
Technology Closed Loop Hall Effect
Aperture ø3.2mm
ROHS Yes
Supply Voltage 5 VDC
Load Current (RMS + DC) 15 Amp
Measurement Range +/-48 Amp
Output 2.5 Vref
Isolation 3 kV
Bandwidth DC-200 kHz
Mounting Style PCB Mount
Operating Temperature Range -40°C / 85°C
Accuracy 0.2%
Termination Style PCB
Unit Weight 10g
Factory Packaging 25
